STEDI Ford Ranger Raptor Inner Grill 21.5 inch Light Bar Bundle
Ā LIGHTBAR DETAILS
#ST1K
CERTIFIED E-MARK COMPLIANT
Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand.
Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations ā think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.
HIGH-END DESIGN MEETS HIGH PERFORMANCE
The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs. Ā The beam pattern makes it an ideal companion to the vehicle's main beam, filling in the road shoulders and adding beam distance over and above your car's main beam, ensuring you arrive at your destination in total comfort.Ā
Ā
#ST3K
THE DEFINITION OF CALIBRE.Ā
TIMELESS DESIGN.Ā
LIGHTBAR VIDEO
#ST1K
Ā
#ST3K
THE NERDY TECH STUFF
#ST1K
DETAILS
- 20 x 5W OSRAM LEDsĀ
- RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
- IP68 - Submersible to 3mĀ
- Environmentally sealed Deutsch DT-2 connectors
- Innovative hooded opticsĀ Ā
- Driving Beam E mark compliant beam. Ā
- Heavy Duty Adjustable Bottom Mounts & Side bracket included.Ā Ā
- Reverse Polarity Protected Circuit (RPPC)
- Electronic Thermal Management
- Built-in Voltage Surge Protection
INCLUDES:Ā Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggyback adaptors)Ā
| LED MANUFACTURER | OSRAM |
| LED COUNT | 20 |
| VOLTAGE | 9V - 32V |
| CURRENT DRAW (AMPERES) | 8.0a @13.6v |
| LENS MATERIAL | OPTICAL GRADE, MAKROLONĀ |
| RAW LUMENS | 5,920Lm |
| PEAK INTENSITY (CANDELA) | 219,792cd |
| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| LUMEN MAINTENANCE | 50,000 (LM80)Ā |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40ĖC ~ +150ĖC |
| WEIGHT | 1.290kg |
#ST3K
DETAILS
MARKET-LEADING PERFORMANCE.
- ST3K-20LĀ features 20 of OSRAMāsĀ® finest OSLONĀ® LED, selected for unrivalled efficiency.
- Ā 4 Flood + 12 Spot + 4 FloodĀ reflector distribution forms a remarkable beam that pushes the wide beam out at 50Ā° and spot beam at 5.8Ā° all the way to staggeringĀ 1 lux @ 493mĀ
- True White 5700K Colour temperature offers stunning clarity and definition.
- Our Pure-Driveā¢ circuit design allows 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
- Finished in 100% Polyester UV and abrasion-resistant powder coat ensures that our bars will never discolour.
- Pressure Equalization vent | Protects against water ingress, dust & contaminants.
- IP68 | Dust & Particle tight + Water-proof up to 3 meters!
- Environmentally sealed Deutsch Ā® DT-2 connector. Ā
- Protected against EMC and RFI.
- Ultra-Low 51mm profile without the side brackets & 63mm with side brackets! Ā
Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includesĀ H4 and HB3 AdaptersĀ making for an easy connection to the high beam.Ā
Backed by a 5-Year Replacement Warranty.
SPECIFICATIONS
| LED | 20 x Osram Oslon White |
| EFFECTIVE LUMEN | 4,100Lm |
| PEAK INTENSITY | 243,200cd |
| OPERATING VOLTAGE | 10-30V DC |
| IP RATING | IP68Ā |
| CURRENT DRAW | 4.3A @ 13.5v |
| COLOUR TEMPERATURE (CCT) | 5700 Kelvin |
| HOUSING MATERIAL | Aluminium Extrusion & Cast |
| LENS | GEā¢ Lexan |
| MOUNTING BRACKET | Powder Coated 3mm Stainless Steel |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| BEAM TYPE | Flood Spot Combo |
| LIFE SPAN | 50,000 Hours |
| WEIGHT | 1.855 |
| OPERATING ENVIRONMENTĀ | -40 - +50Ā° Celsius |
LUX GRAPH
#ST1K
#ST3K
DIMENSIONS
#ST1K
#ST3K
WHAT'S IN THE BOX
#ST1K
Ā
- 21.5" ST1K E-marked Single Row LED Light Bar

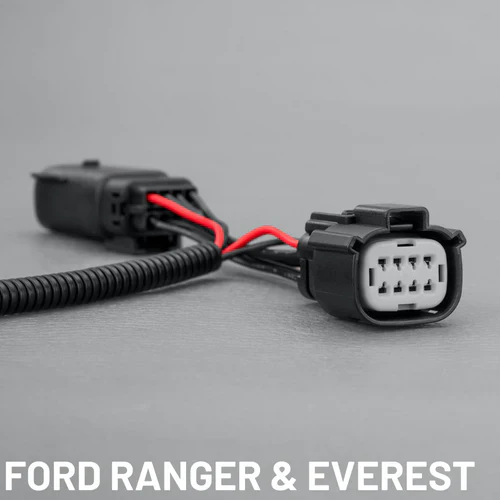

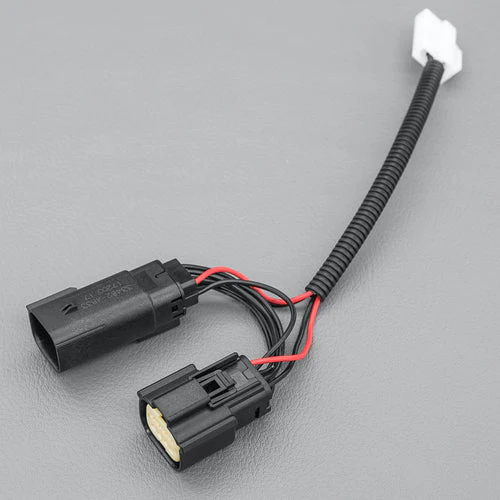

- Ford Piggyback Adapter

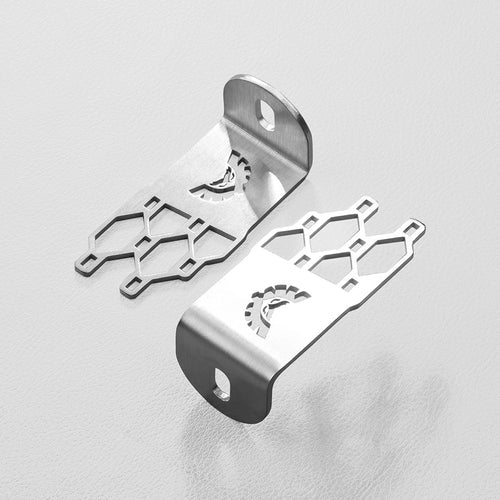

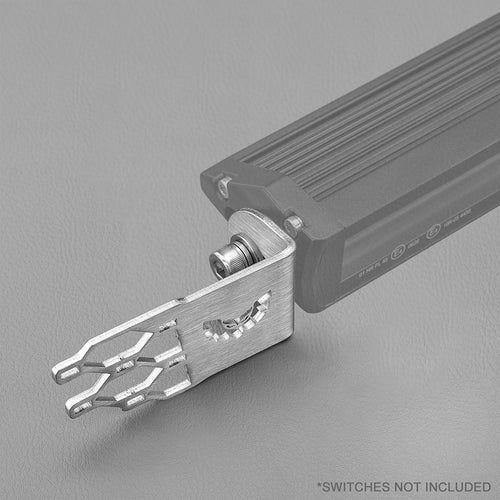

- Ranger Raptor Inner Grill Bracket
- Standard Single Plug Wiring Kit
#ST3K
Ā
- 21.5" ST3K Slim Single Row LED Light Bar
- Ford Piggyback Adapter
- Ranger Raptor Inner Grill Bracket
- Standard Single Plug Wiring Kit
INSTALLATION GUIDE
See HERE for more information on how to fit your new Raptor Grill Lightbar.
**Please note, this does not suit the Next-Gen Raptor**
