STEDI 7-inch Iris LED Headlight
- COME ON, THIS LOOKS SO COOL, YOU KNOW YOU WANT IT! PLUS IT'S PLUG-AND-PLAY FOR MOST VEHICLES -Ā

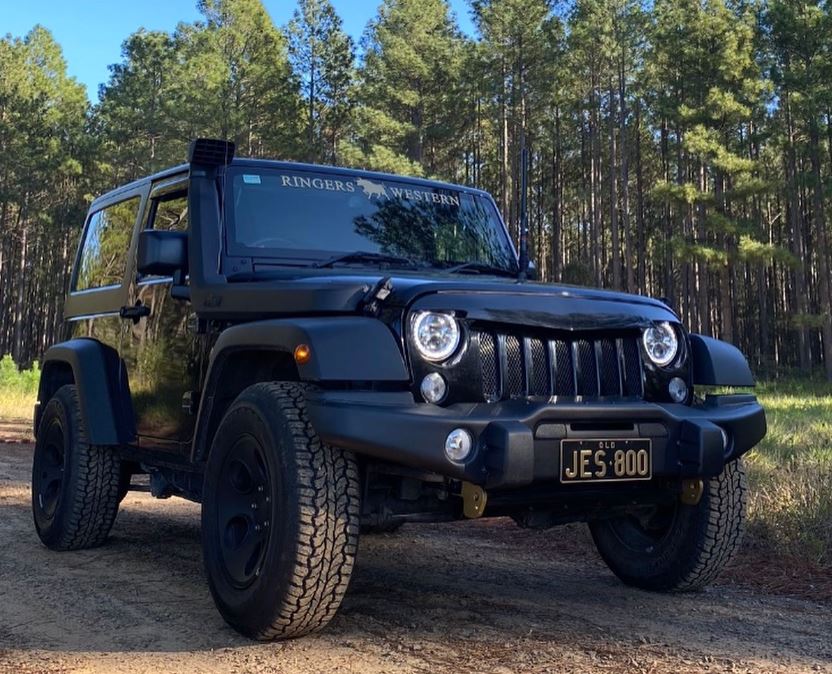

We know that it fitsĀ a large variety of vehicles including, Jeep CJ, Wrangler, Land Rover Defender, Toyota Landcruiser 75 Series, Nissan GQ Patrol, Harley Davidson Motorcycles, Mercedes Benz G Wagon & Kenworth Truck Model
DESCRIPTION
FINALLY A WORTHY 7" LED HEADLAMP

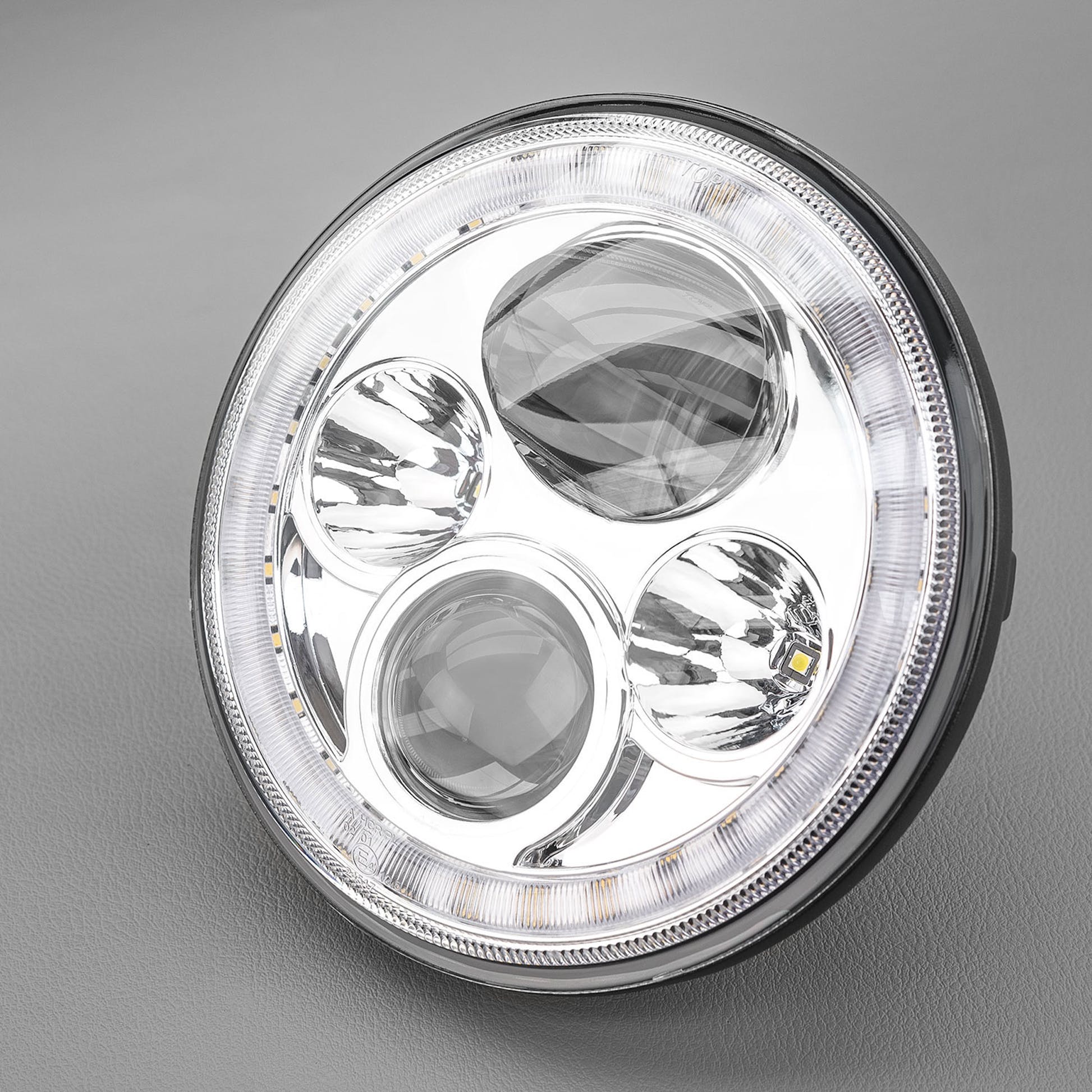

You've either heard about or tried the other disaster 7" LED kits on the market. Our IRIS LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our IRIS is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo DRL, the IRIS is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs 7" headlight (list of known compatible models in the description).
PERFORMANCE THAT SURPASSES THE VERY BEST
The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo DRL can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.
ADR COMPLIANT
The IRIS falls inside the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.

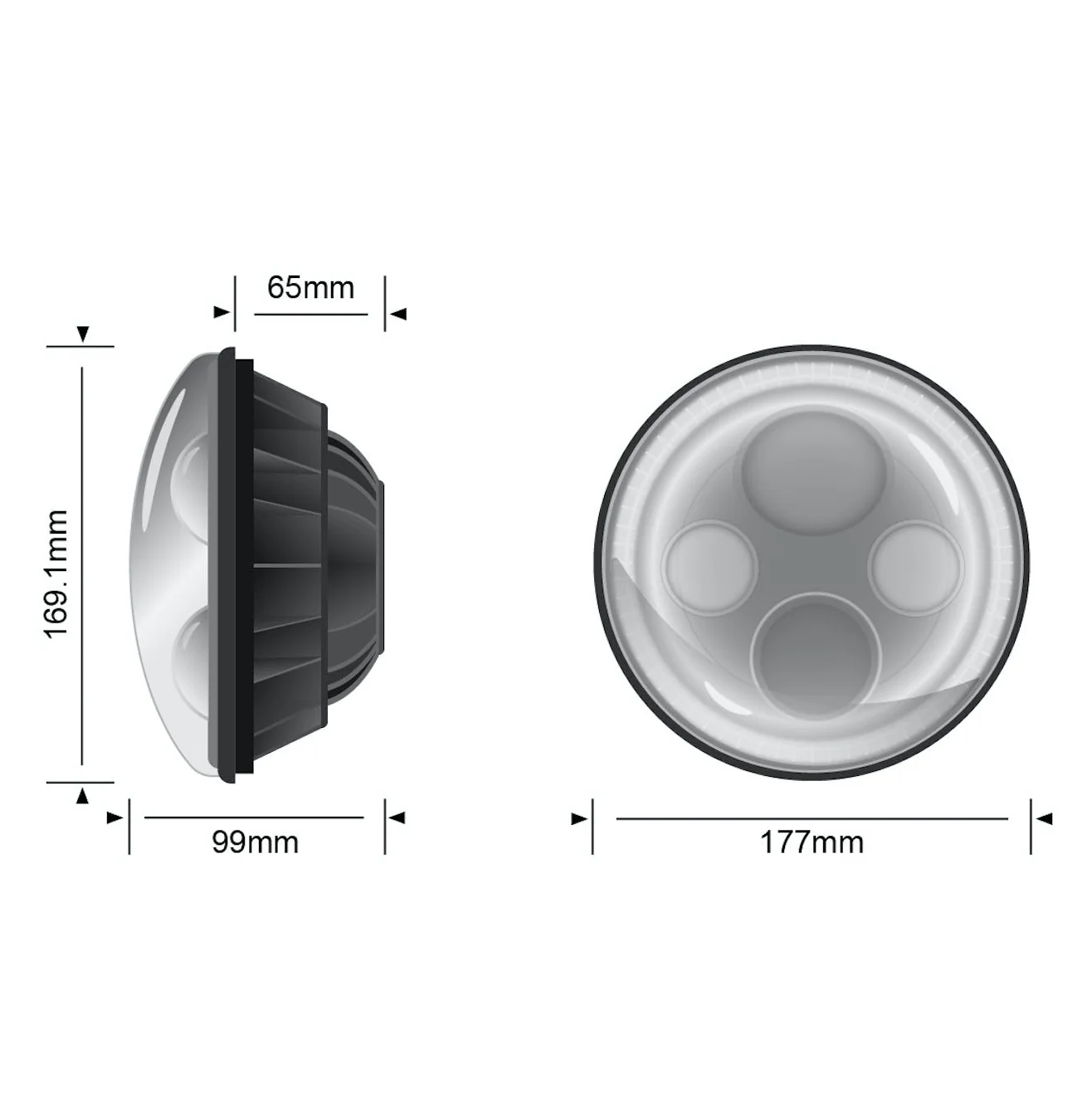

DIMENSIONS

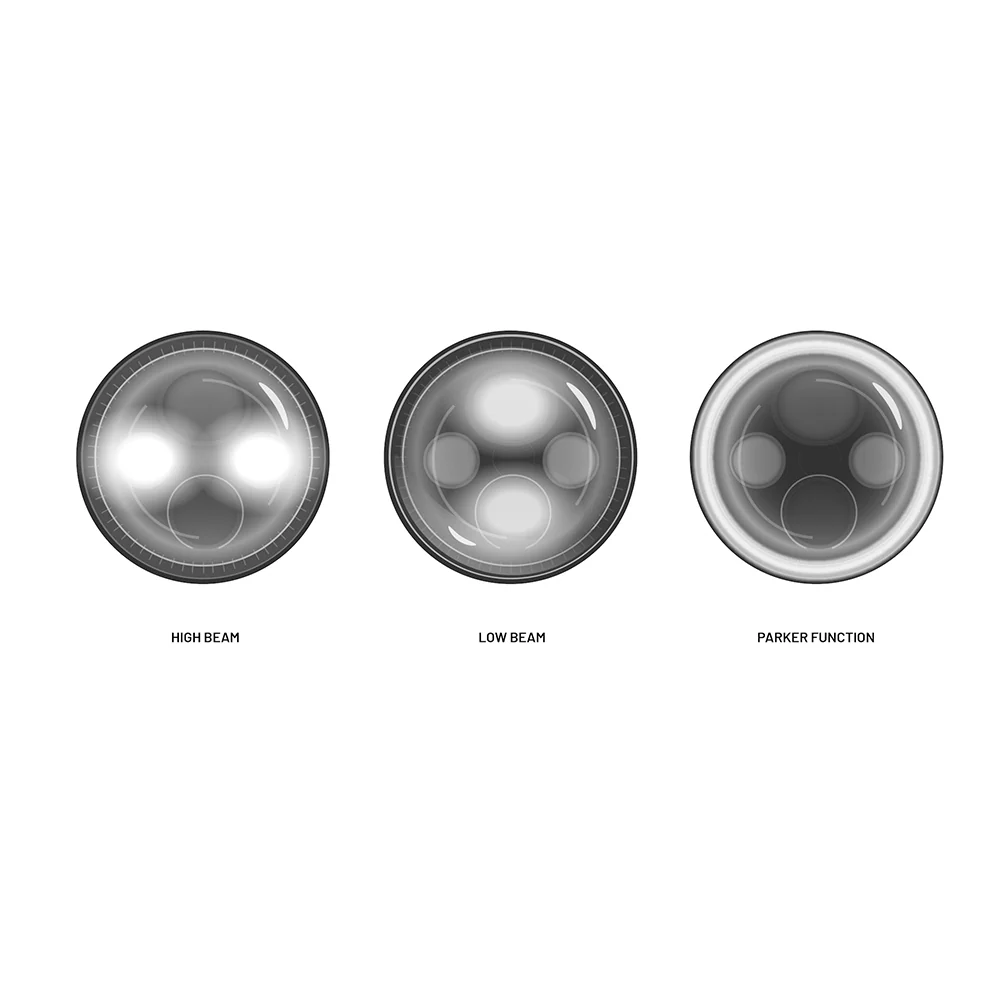

BEAM MODES
THE NITTY GRITTY.Ā

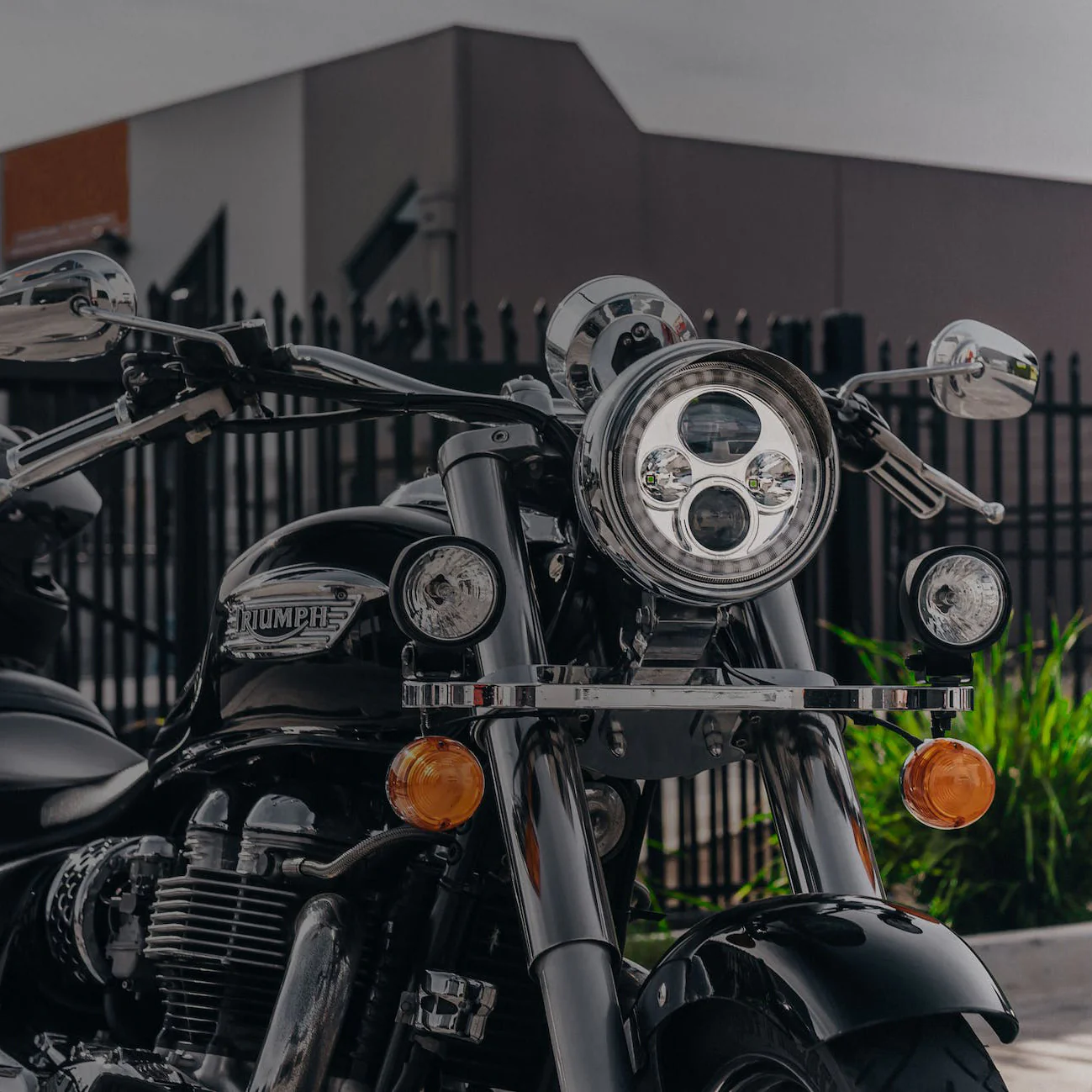

Our IRIS 7 Inch LED Driving Lights should be the first step when improving your motorcycle's light output. Complete with High and Low beams as well as a full LED halo ring DRL, the IRIS 7" Ā is the perfect replacement for your existing headlight.Ā
KEY PERFORMANCE METRICS

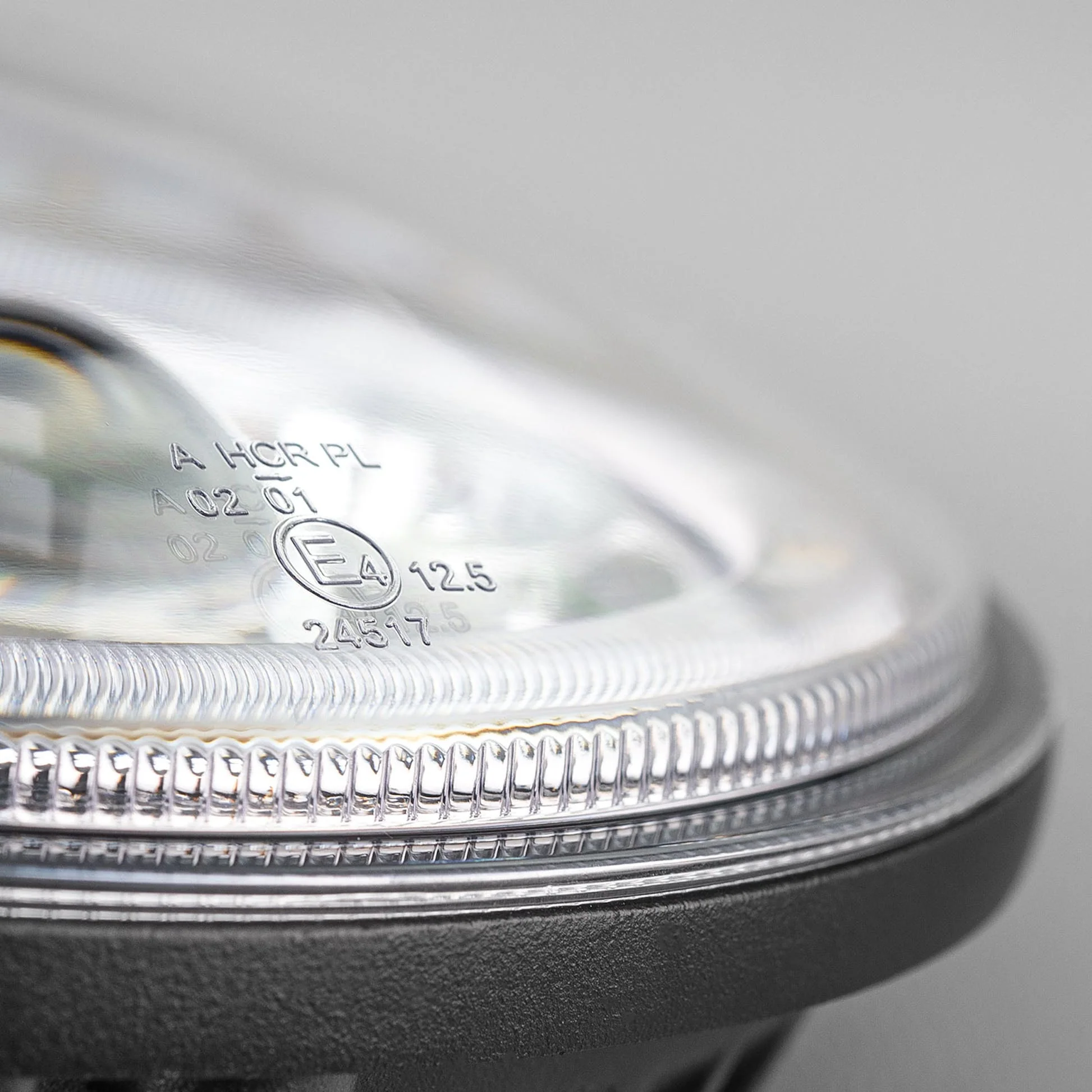

- ADR Approved E-Mark CEĀ
- Proper Right-Hand Drive Beam Geometry

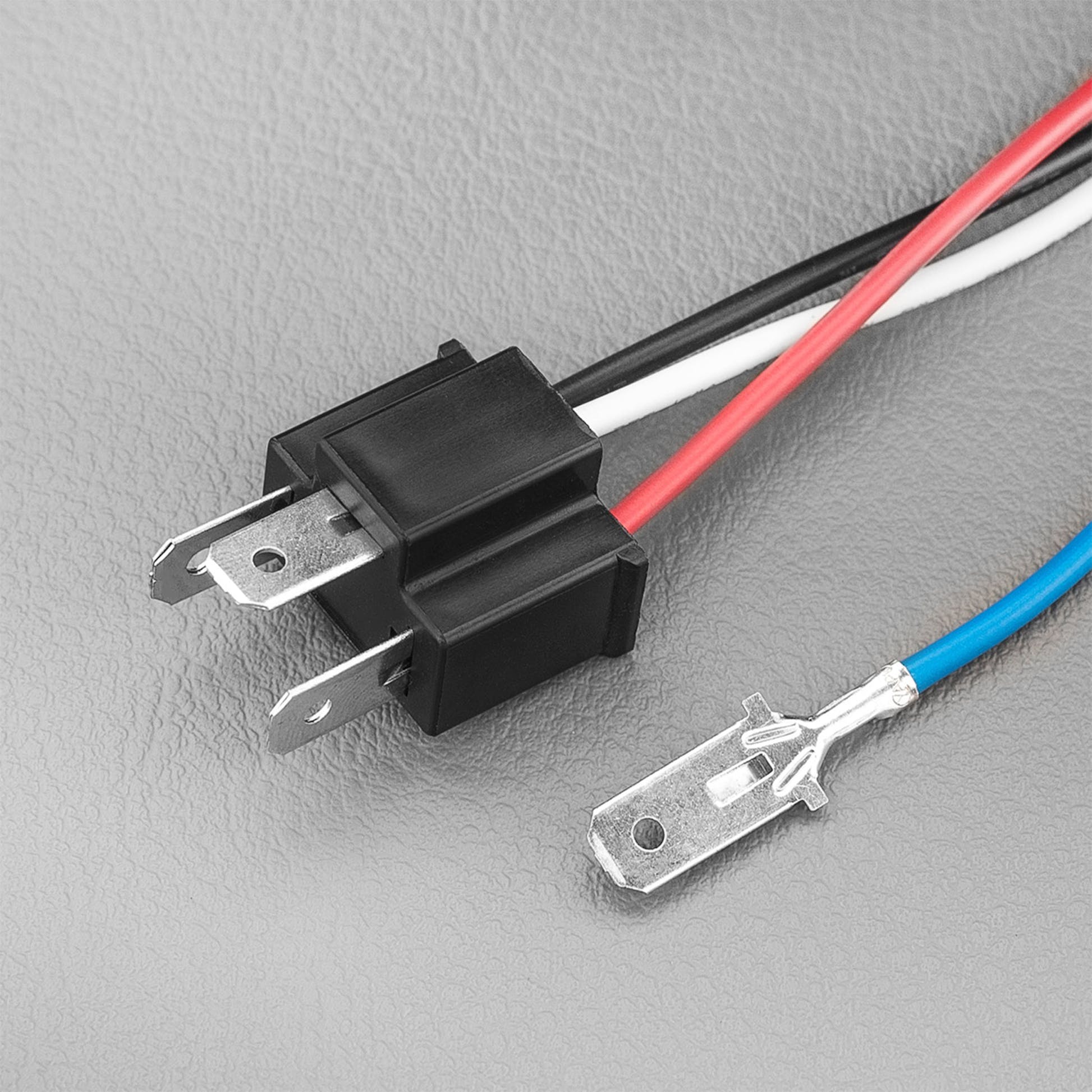

- H4 AdaptorĀ
- High Beam 1 Lux @ 235mĀ Ā
- Low Beam 1 Lux @ 141mĀ
PERFORMANCE BUILD QUALITY
- Anodized Polyester Powdercoat

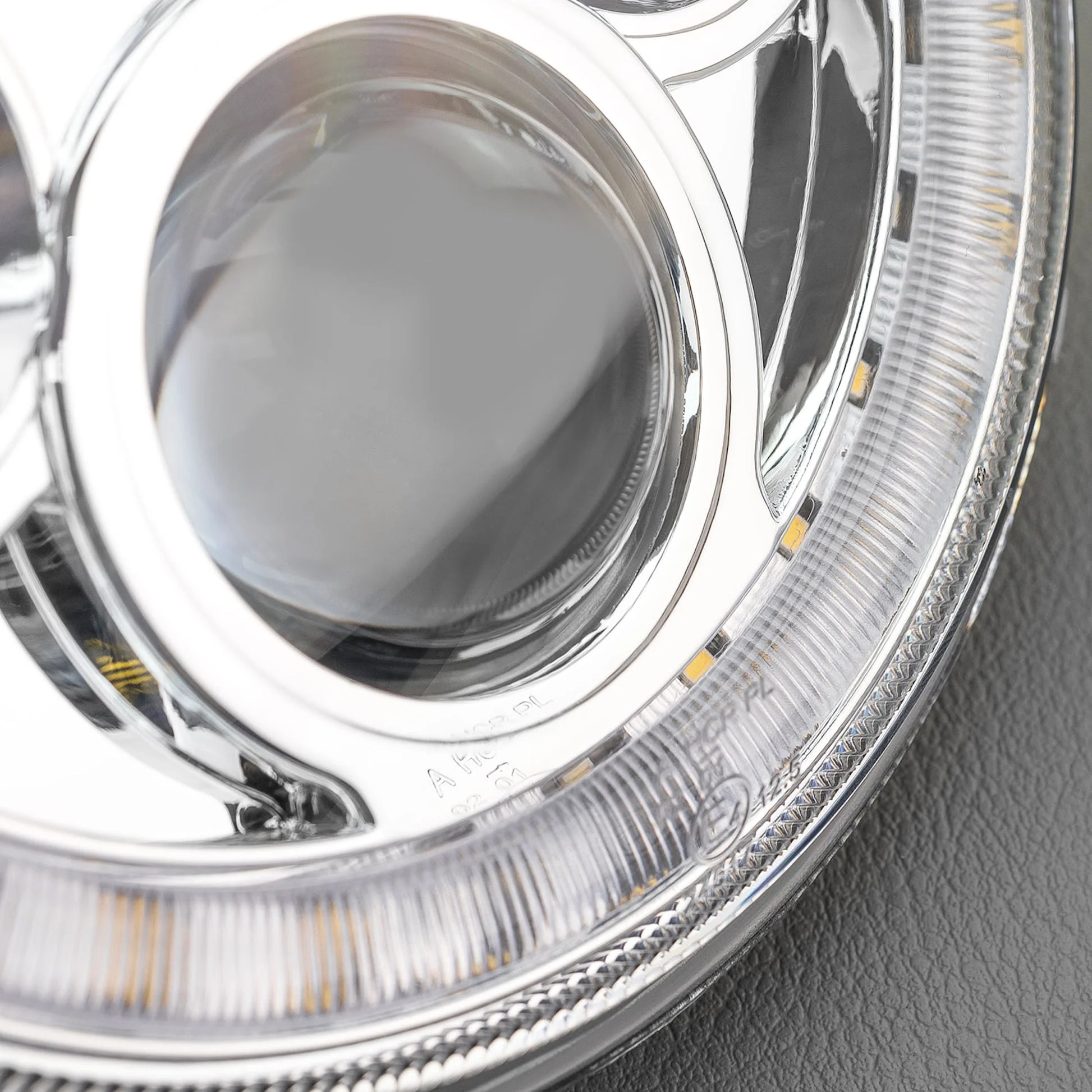

- Lexan Polycarbonate (PC) Lens refractor

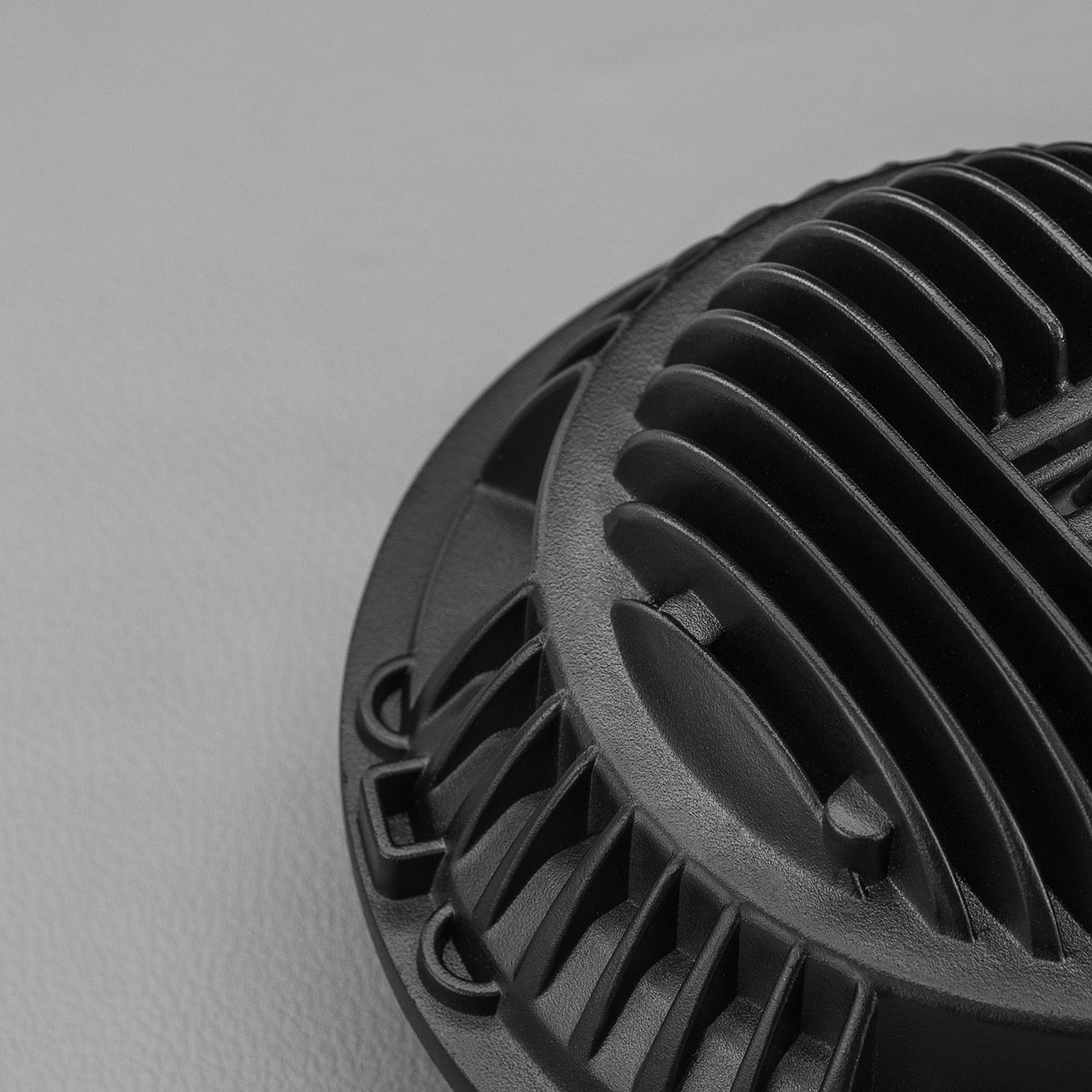

- Die-cast aluminium alloy (ADC12) Heat-Sink
- IP67 | Ingress Protection
- Shock Proof, Waterproof and UV Shielded
- Protected against Reverse Polarity and Voltage / Current surges
- Warranty | 2 Years
COMPATIBLE MODELS
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8
- 1997-2006 Jeep Wrangler (TJ)
- 1982 - 1991 Mitsubishi Pajero (L040)Ā

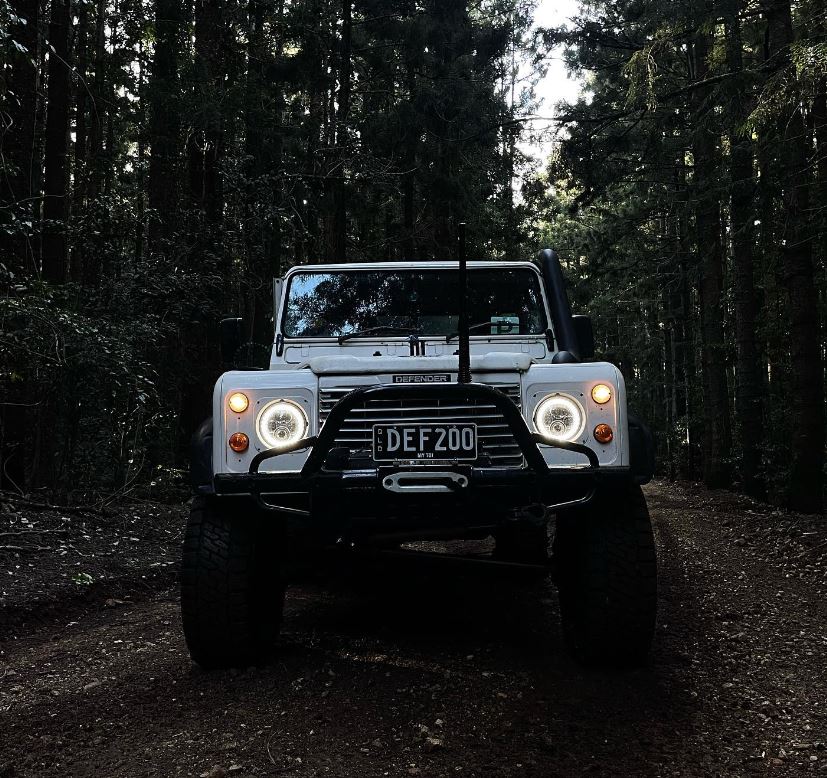

- Land Rover Defender
- 70 Series Toyota Landcruiser with round headlampĀ (Needs additional H4 CANBUS to resolve negative switching)
- 60 Series Toyota Landcruiser with round headlampĀ (Needs additional H4 CANBUS to resolve negative switching)
- Toyota FJ-40/45/47Ā (Needs additional H4 CANBUS to resolve negative switching)

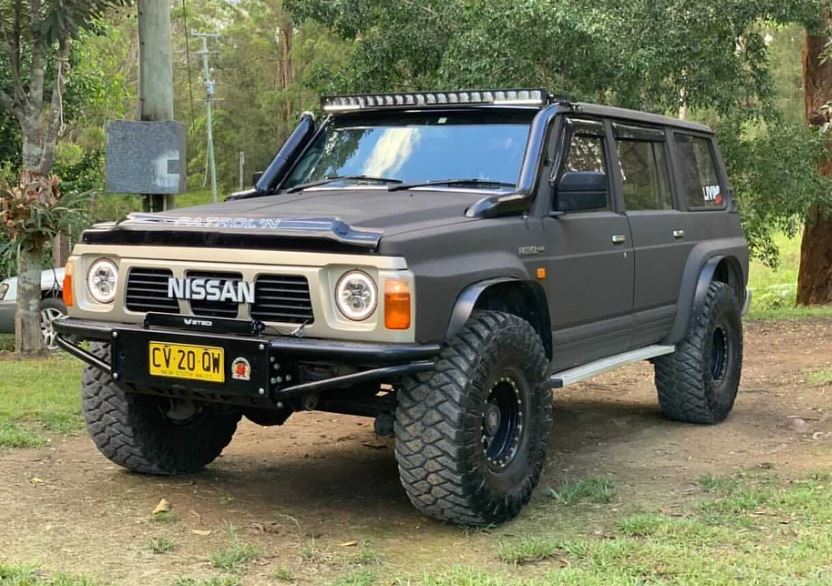

- GQ PatrolĀ

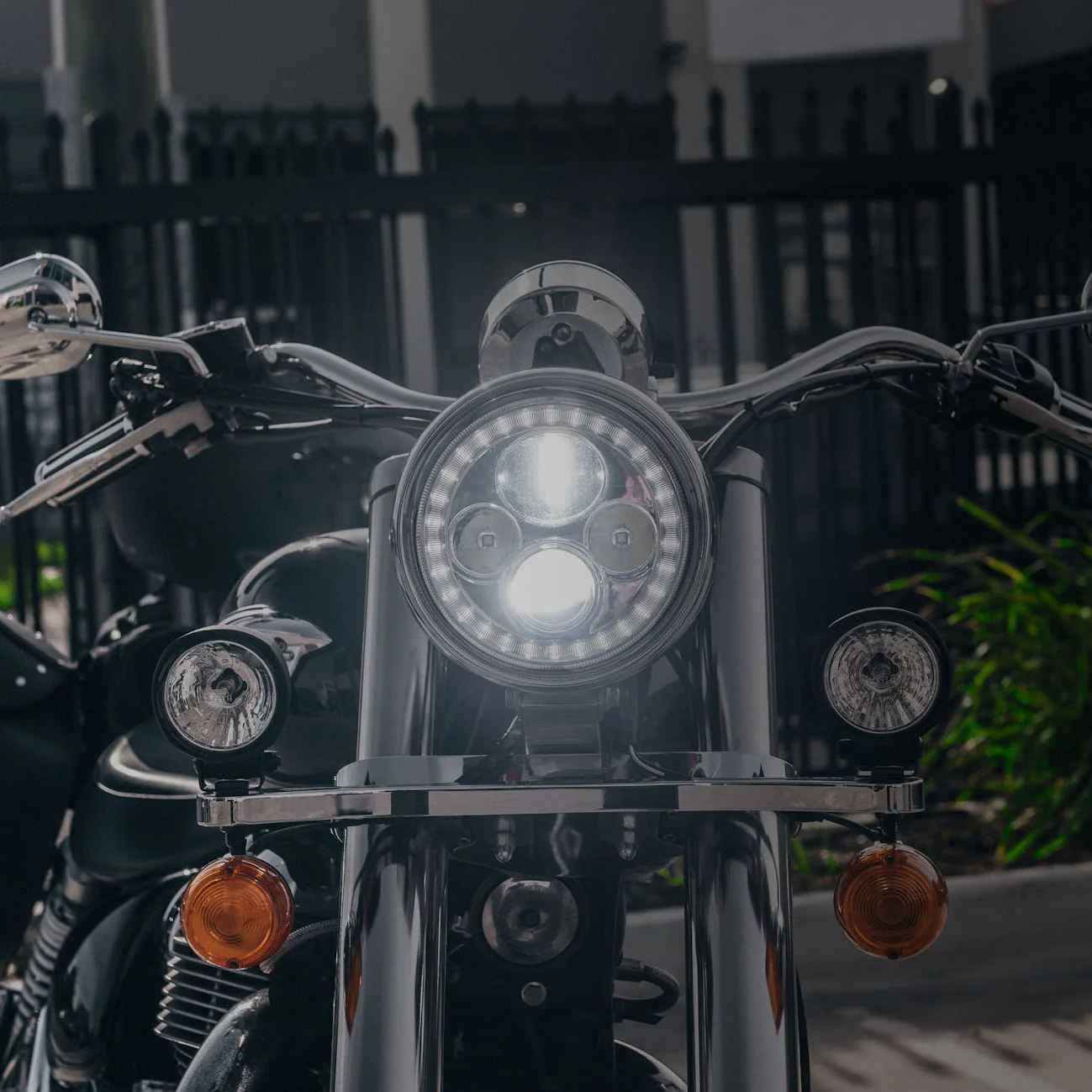

- Harley Davidson Motorcycles
- Mercedes BenzĀ G Wagon
- Kenworth Trucks with 7 inch round headlight
- MANY MANY MORE...
TECH SPECS
| LED | High Beam: 2x 10w XML-2 LED Low Beam: 2x 15w LED DRL: 30x 1.5w Osram |
| RAW LUMENS | High Beam: 2000Lm Low Beam: 1400Lm DRL: 150Lm |
| AMP DRAWĀ | High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v DRL: 0.2a @ 13.6v |
| LIFESPANĀ | 50,000 Hours |
| INGRESS PROTECTION | IP67 |
| OPERATING TEMPERATURE | -30Ā°C~+60Ā°C |
| LENS MATERIAL | LEXAN Polycarbonate |
| COLOUR TEMP | 5700K |
| VOLTAGE COMPATIBILITYĀ | 12v & 24v |
| PEAK BEAM DISTANCE @ 1 LUX | High Beam: 235m Low Beam: 141m DRL: 8m |
| WEIGHT (EACH) | 1.140kg each |
| DROP-IN REPLACEMENT FORĀ |
#6014, 6015, 6016, H6024 and Par 56 headlamp designs |
INSTALLATION GUIDE
WHAT'S IN THE BOX
- 1 x 7-inch STEDI IRIS LED Headlight
Ā
