STEDI Carling Type Rocker Switches

STEDI Carling Type Rocker Switches

- TIME TO SWITCH UP HOW YOU SWITCH ON YOUR LED LIGHTBAR AND AUX ACCESSORIES -

DESCRIPTIONS

OVERVIEW

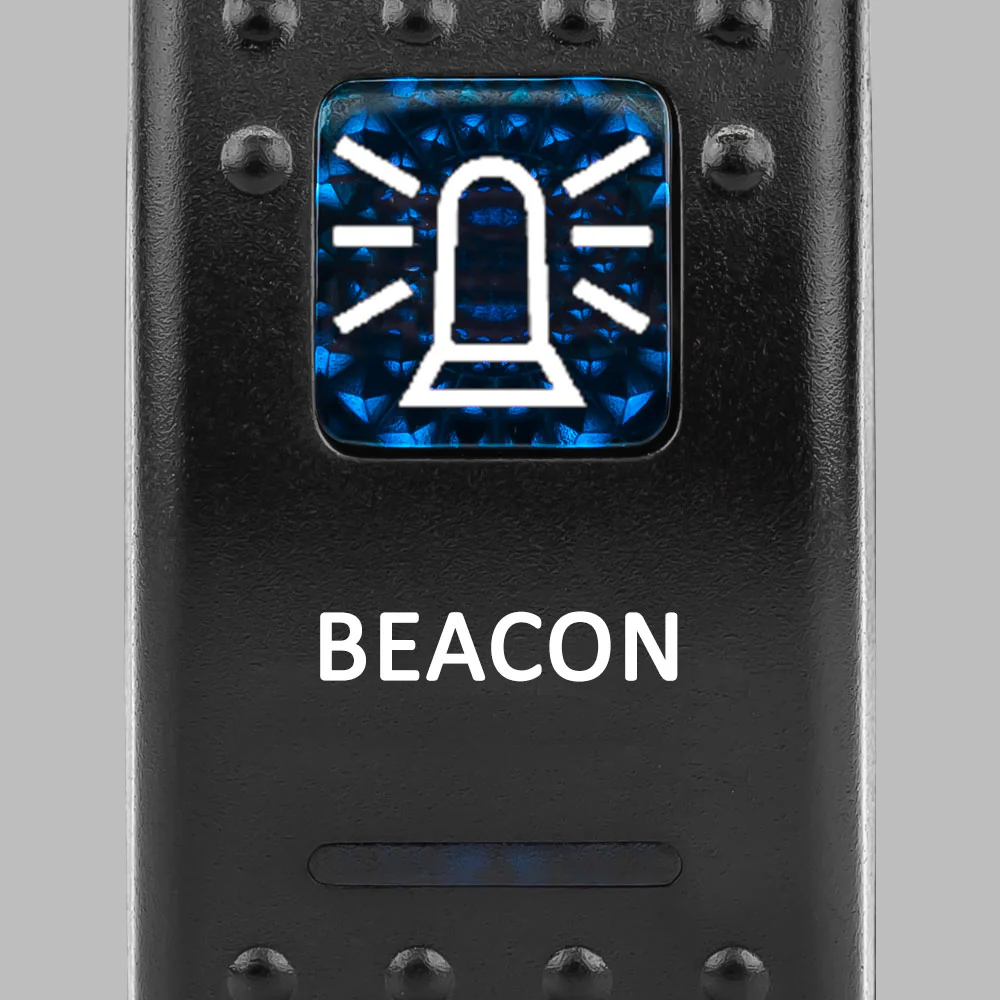

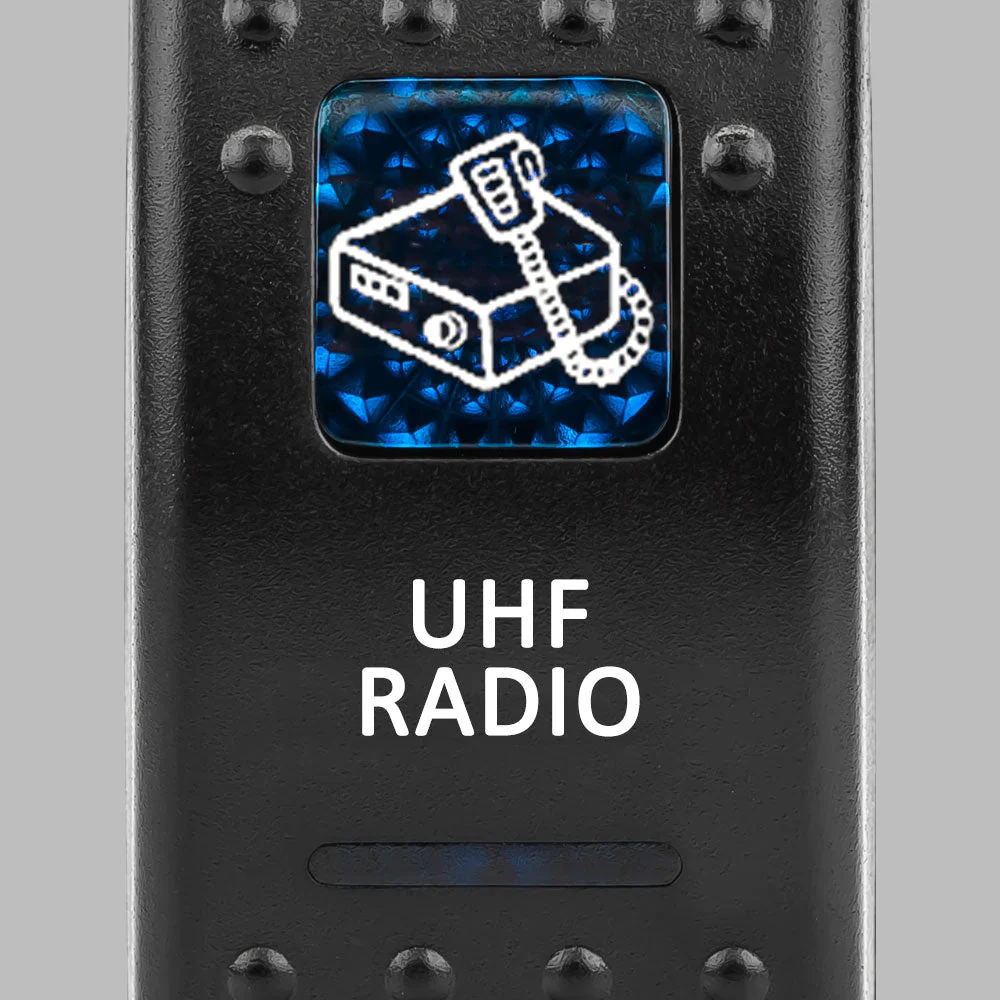

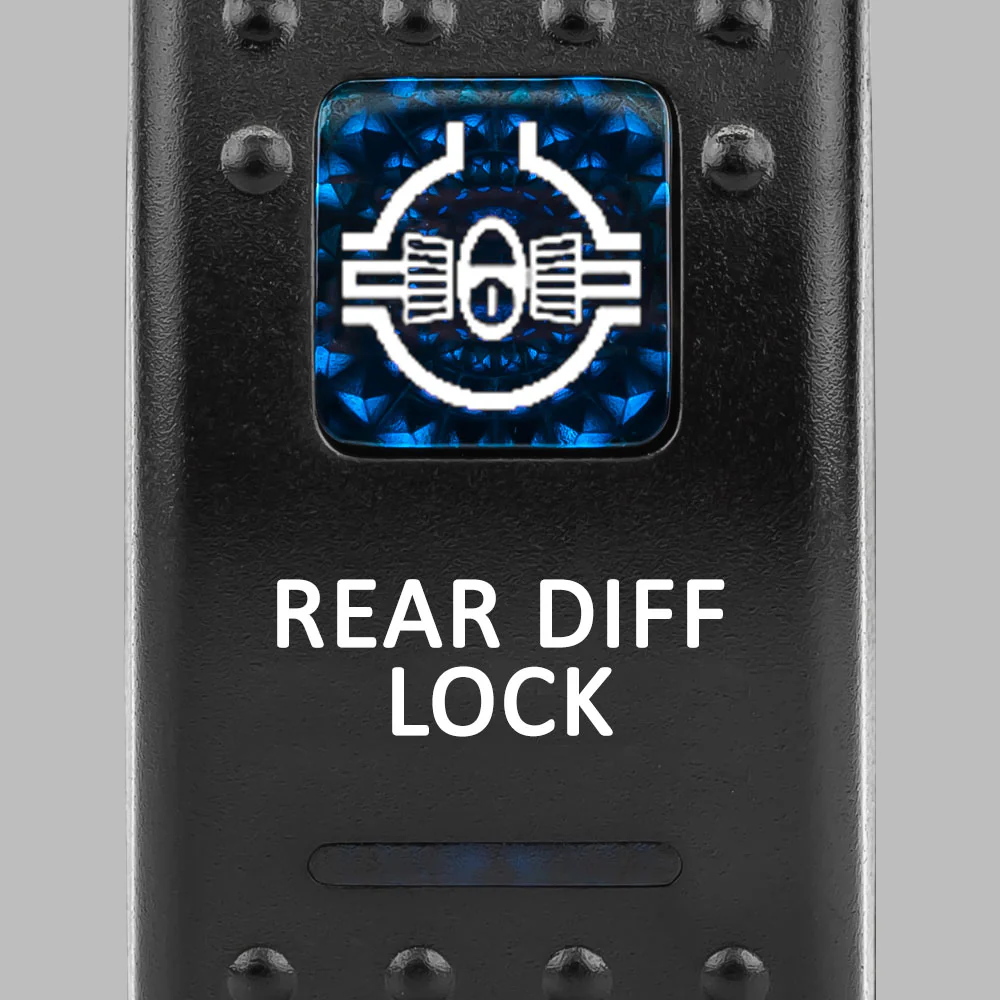

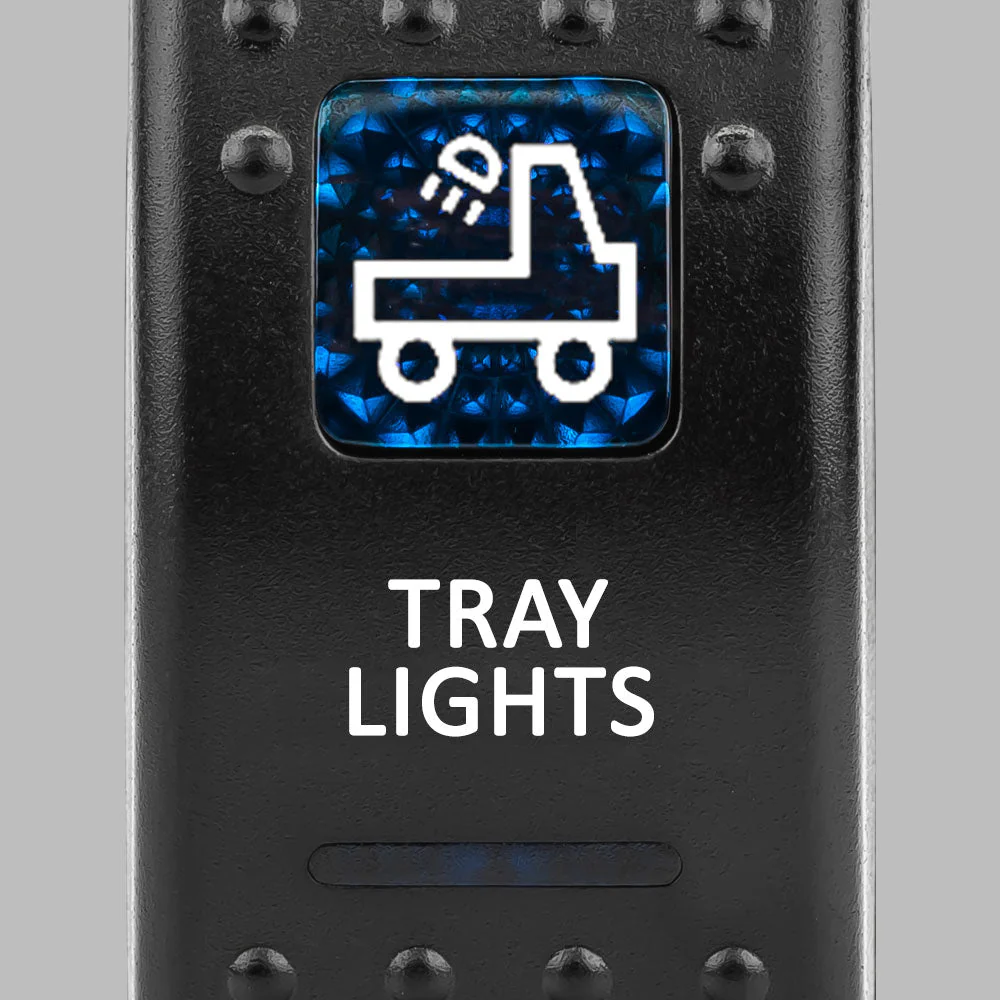

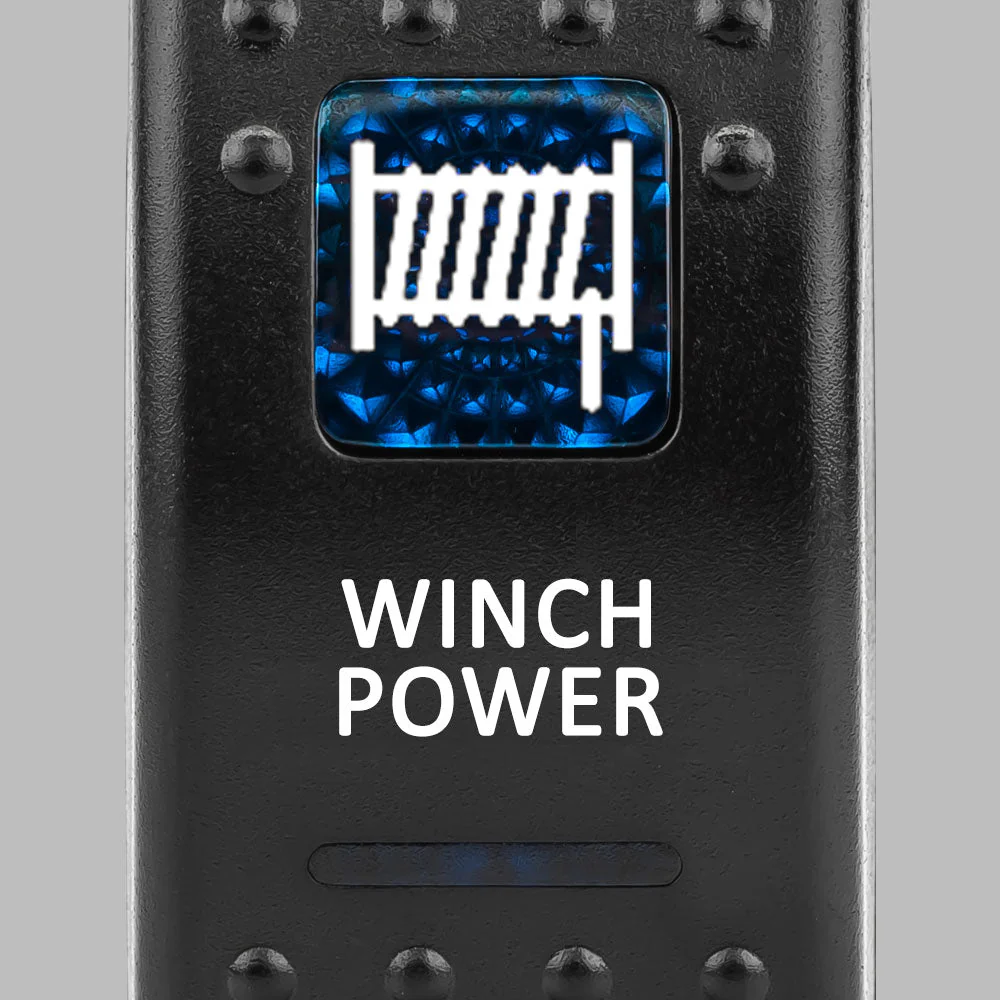

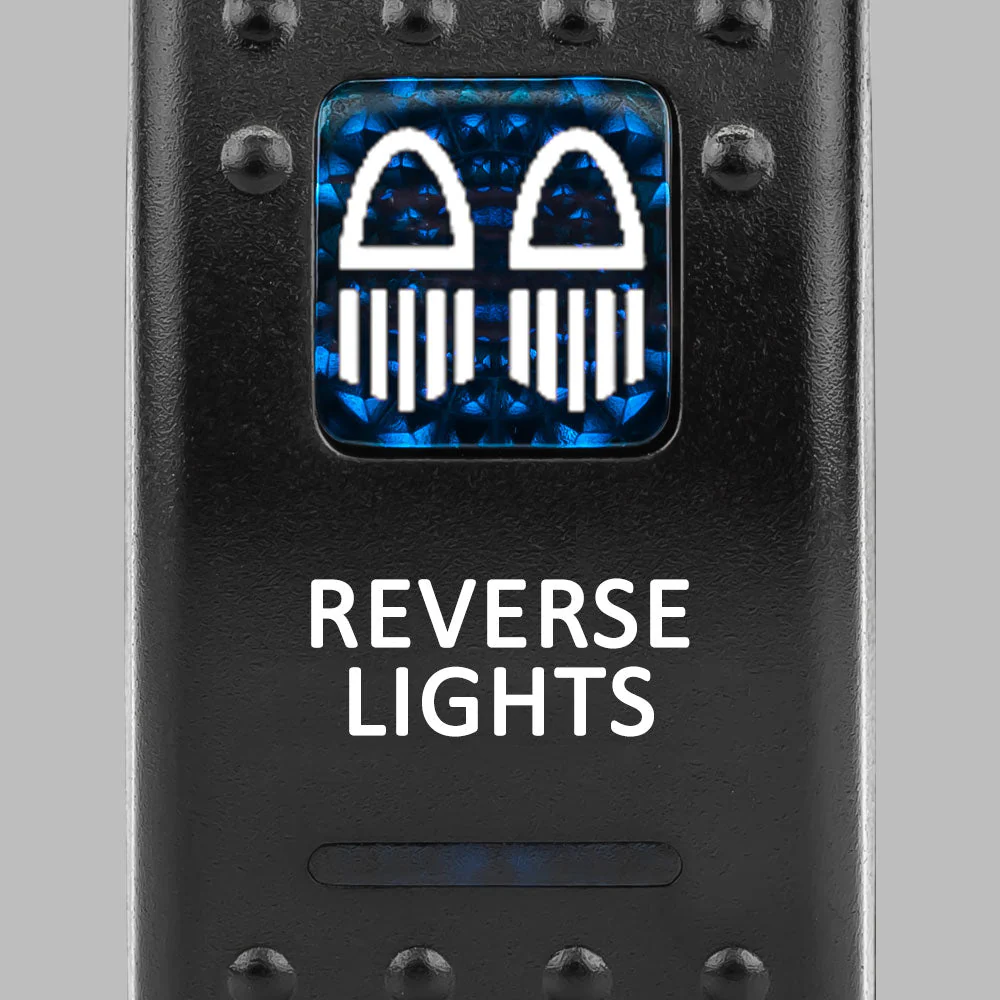

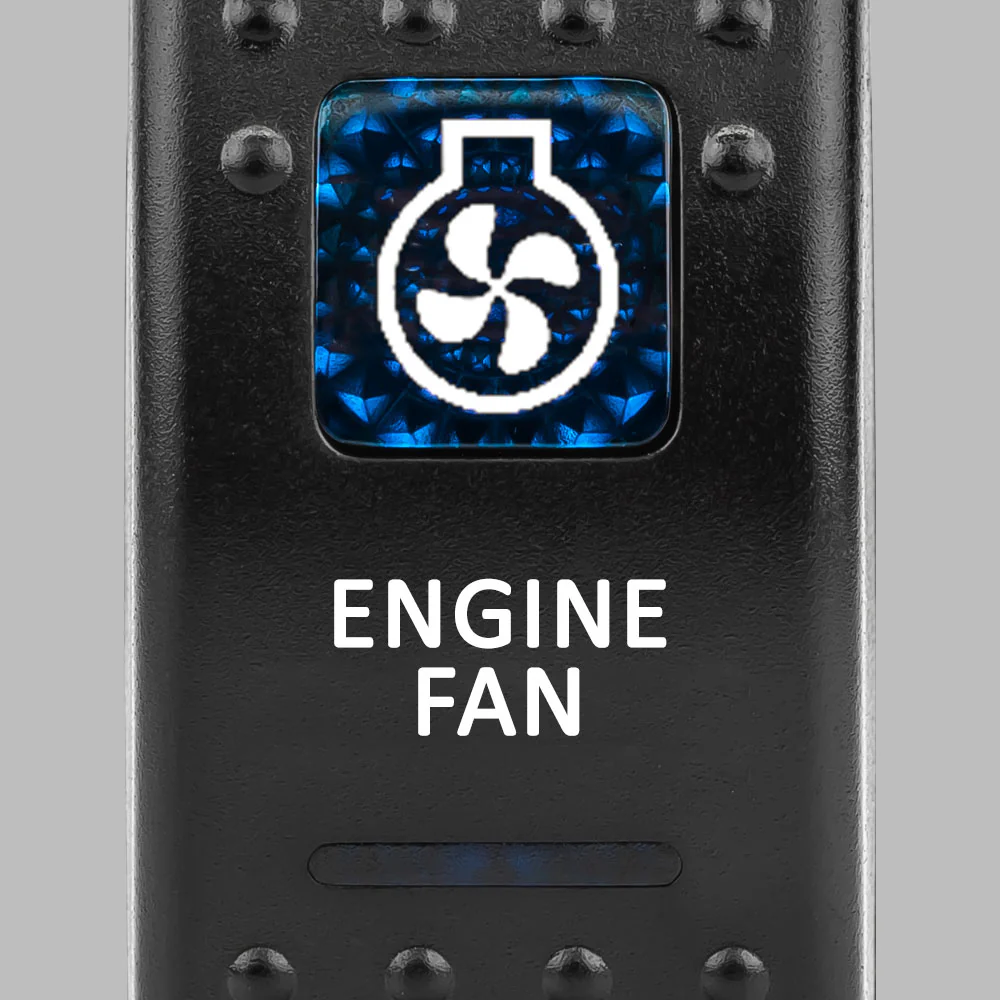

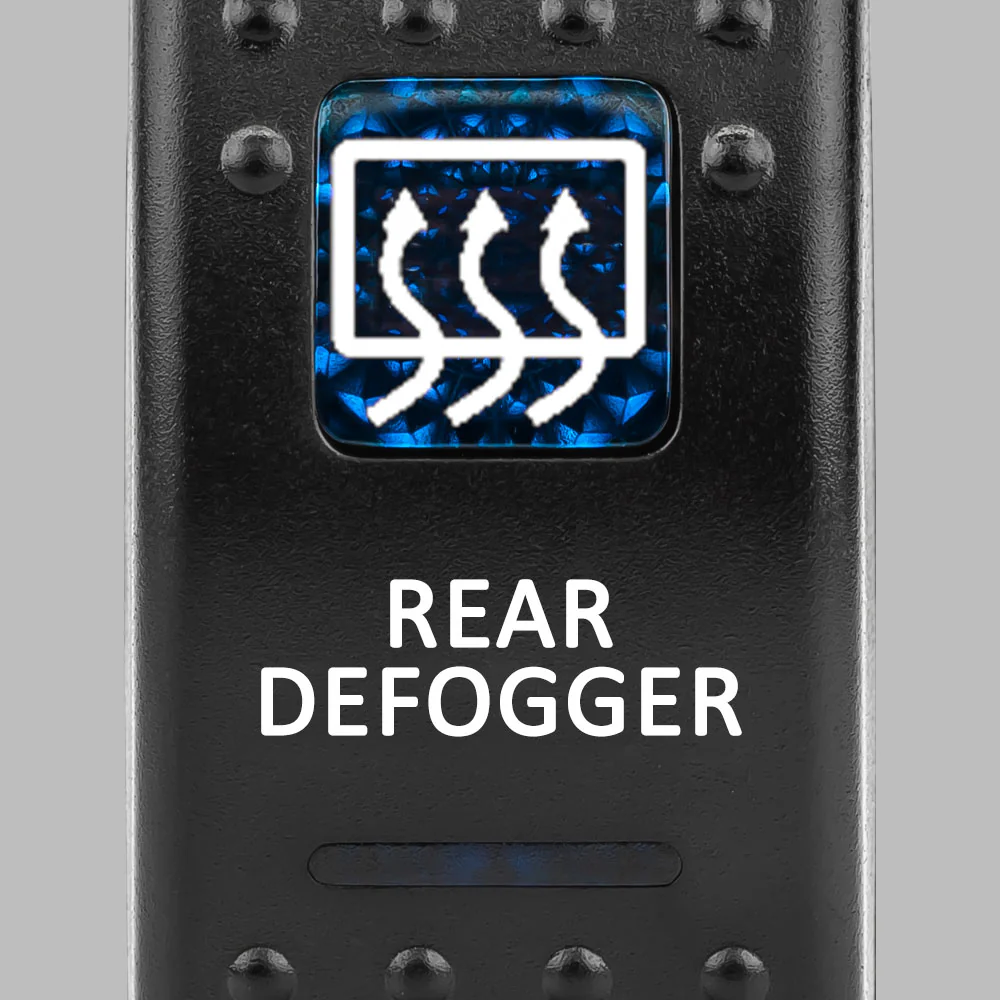

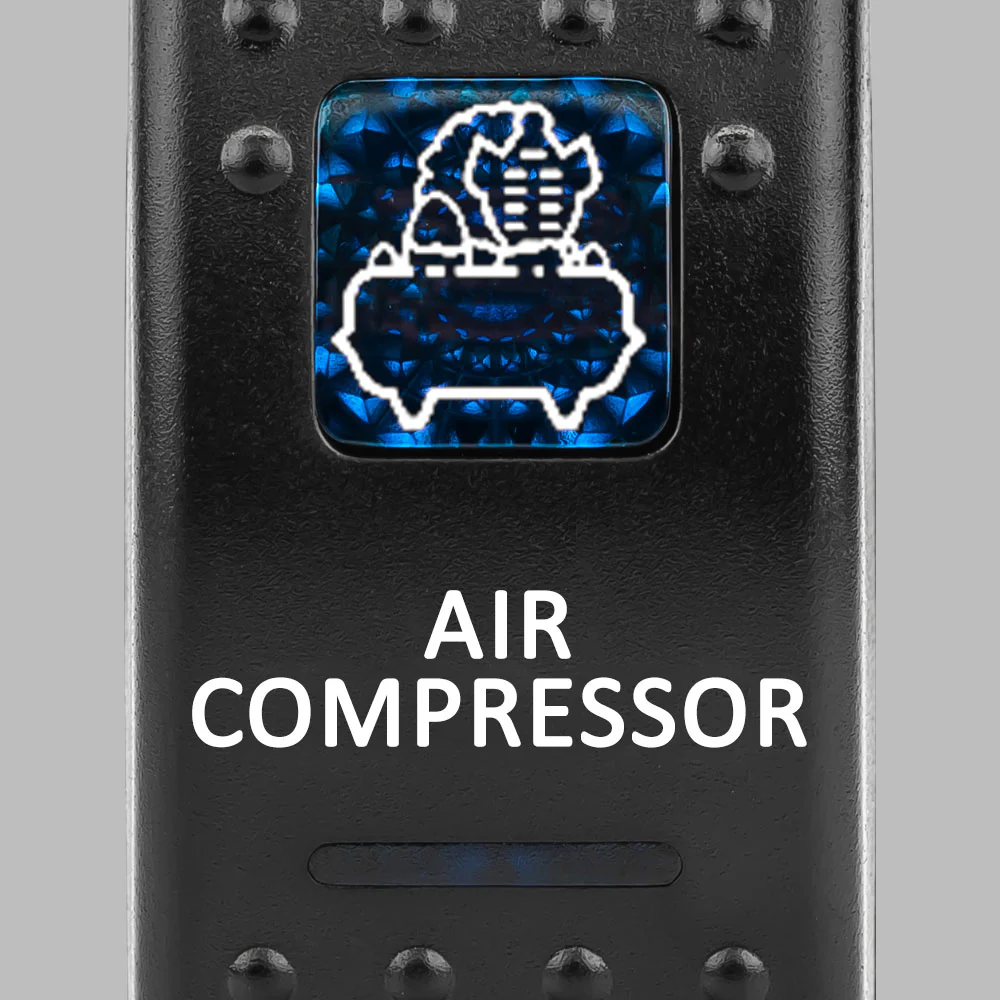

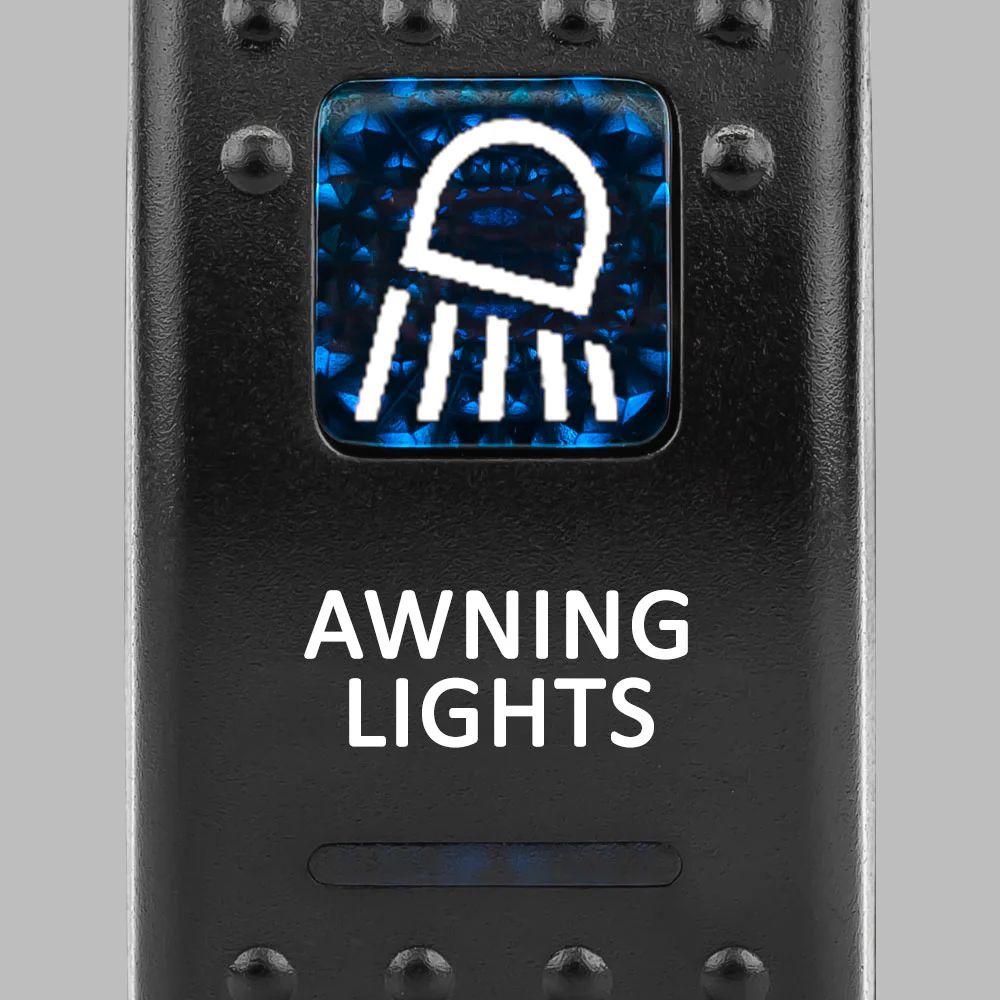

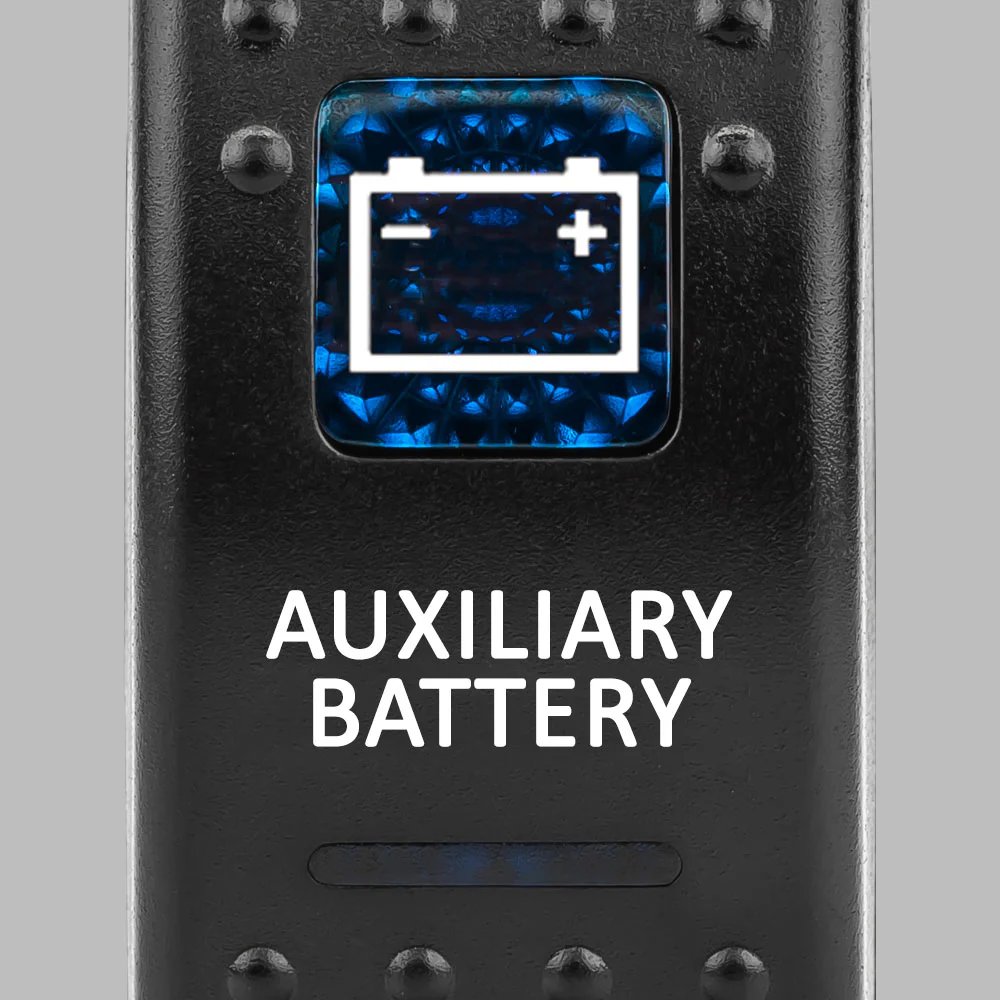

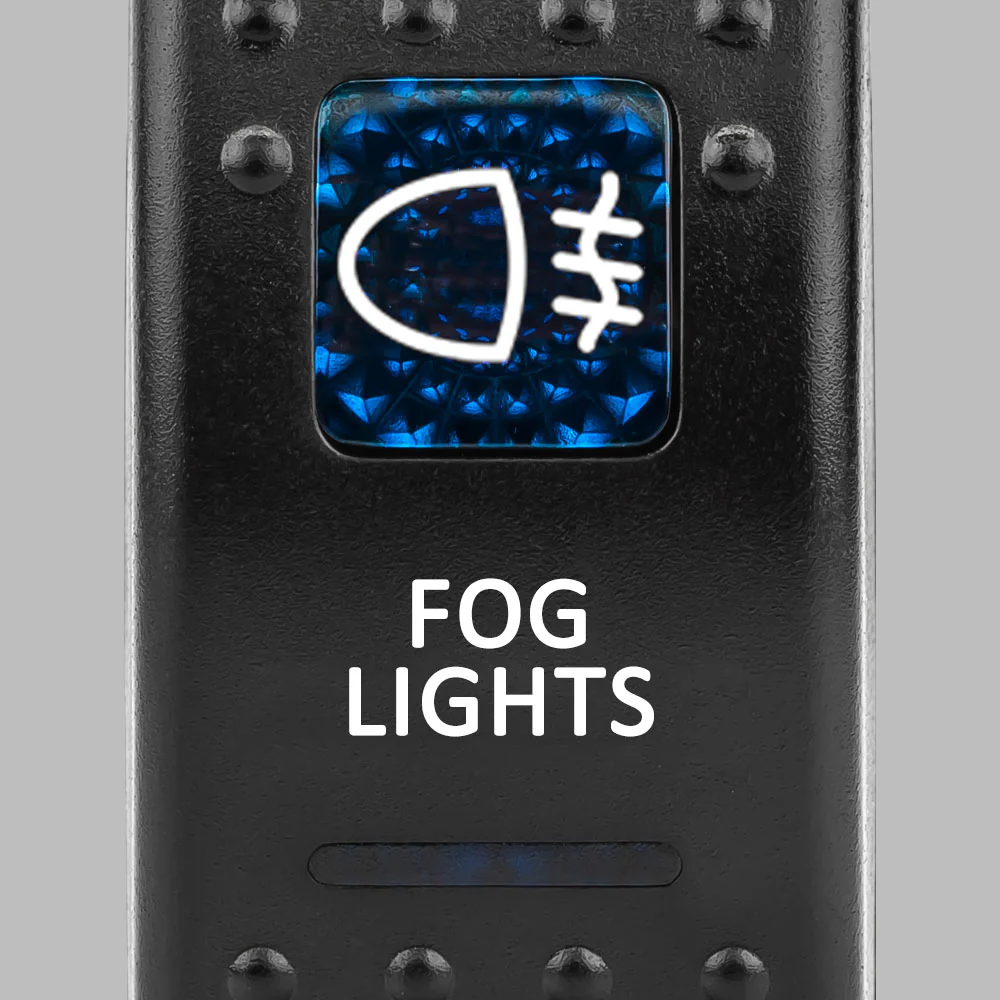

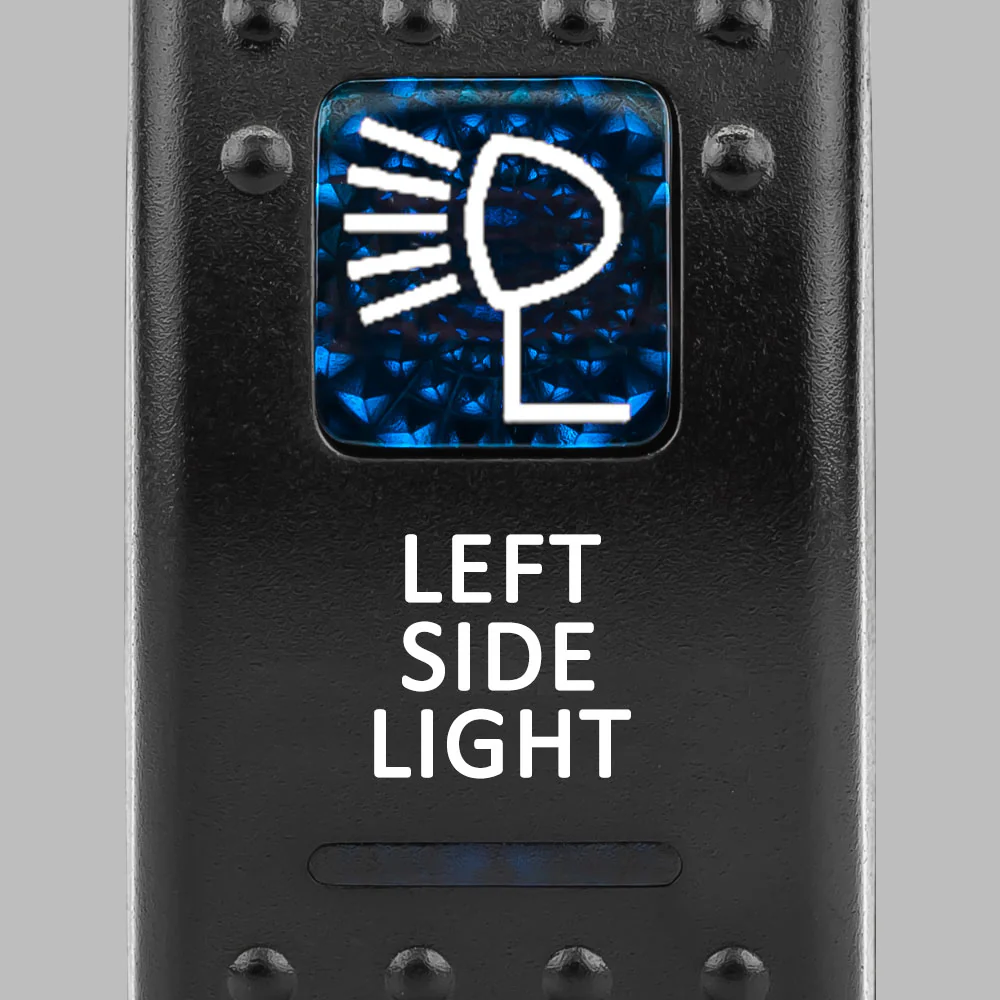

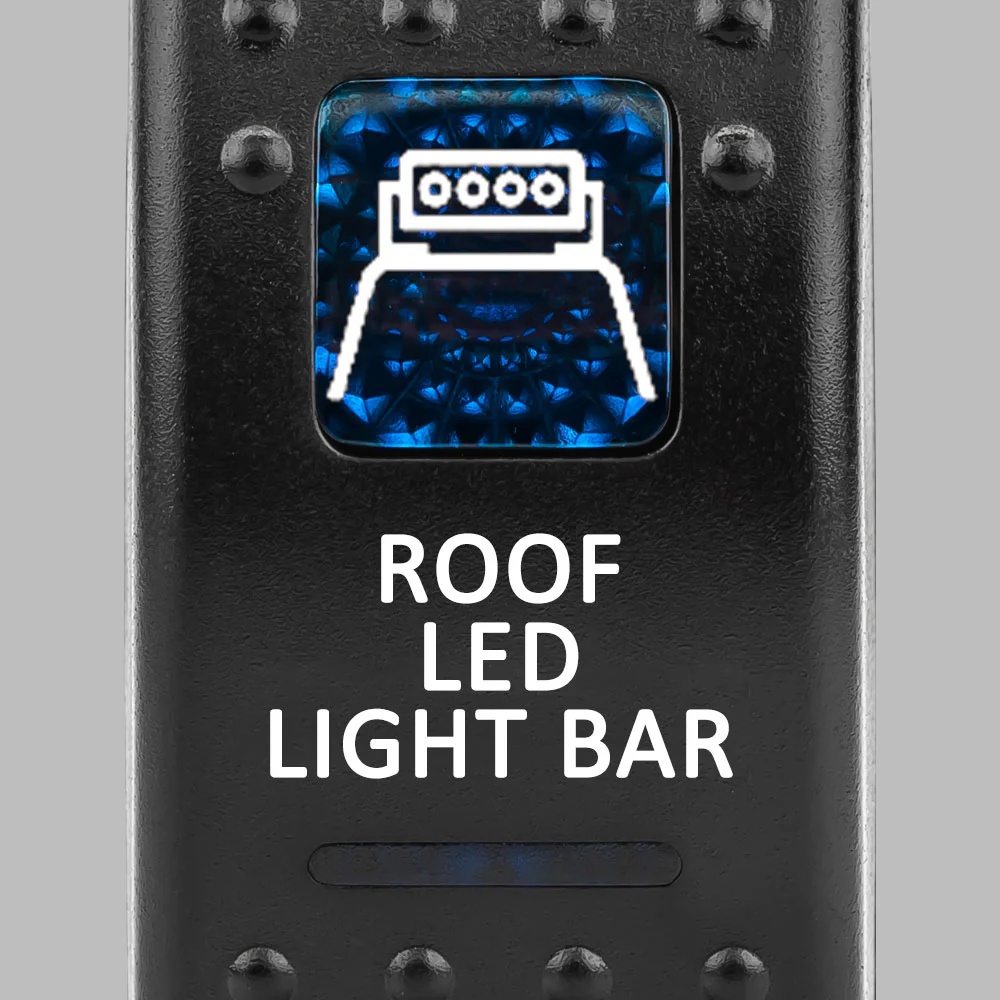

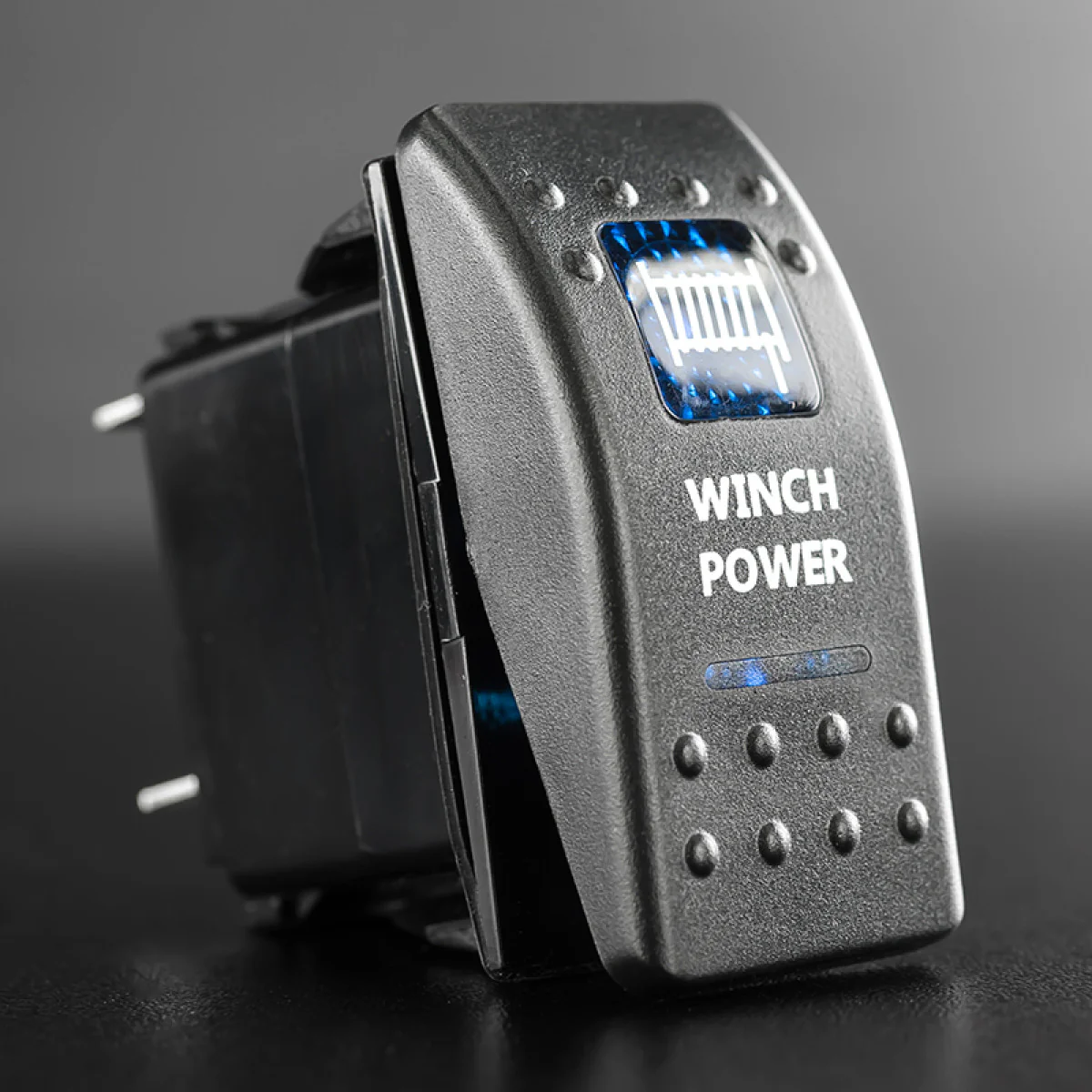

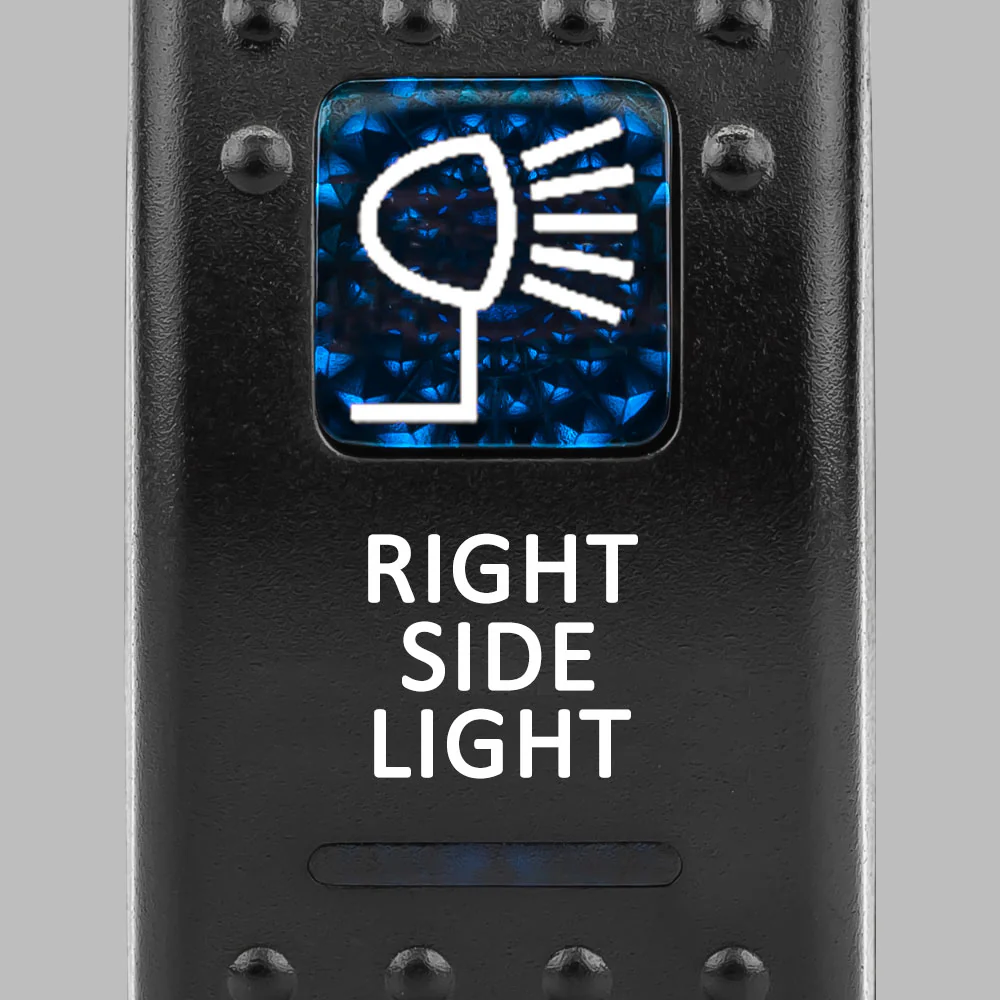

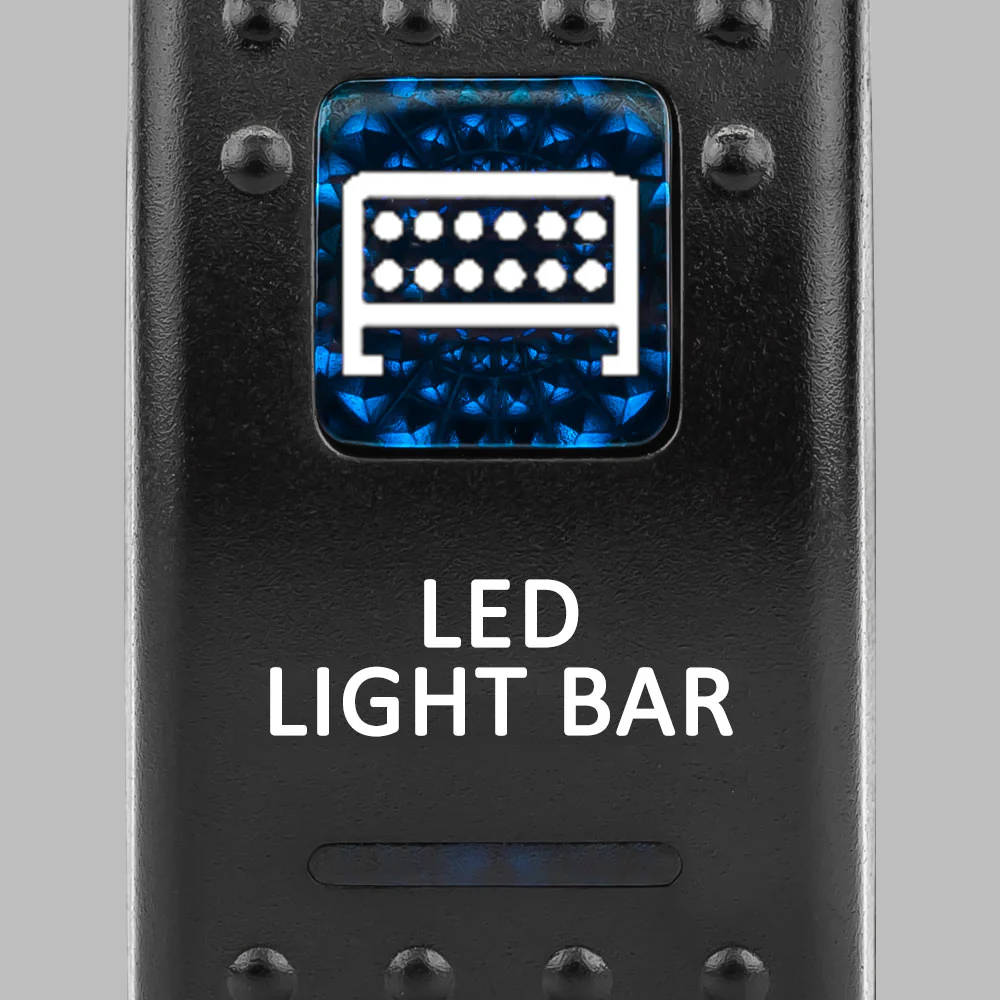

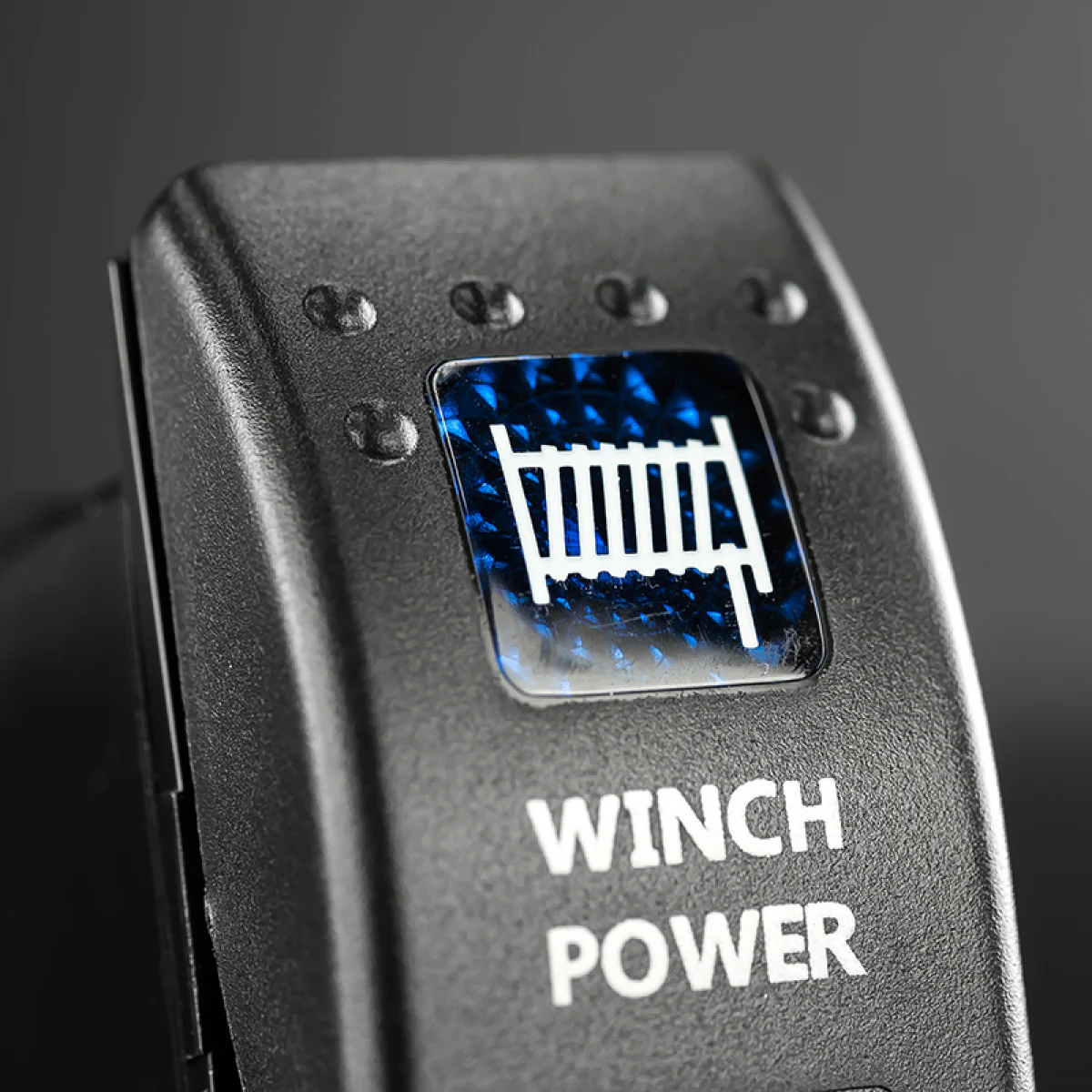

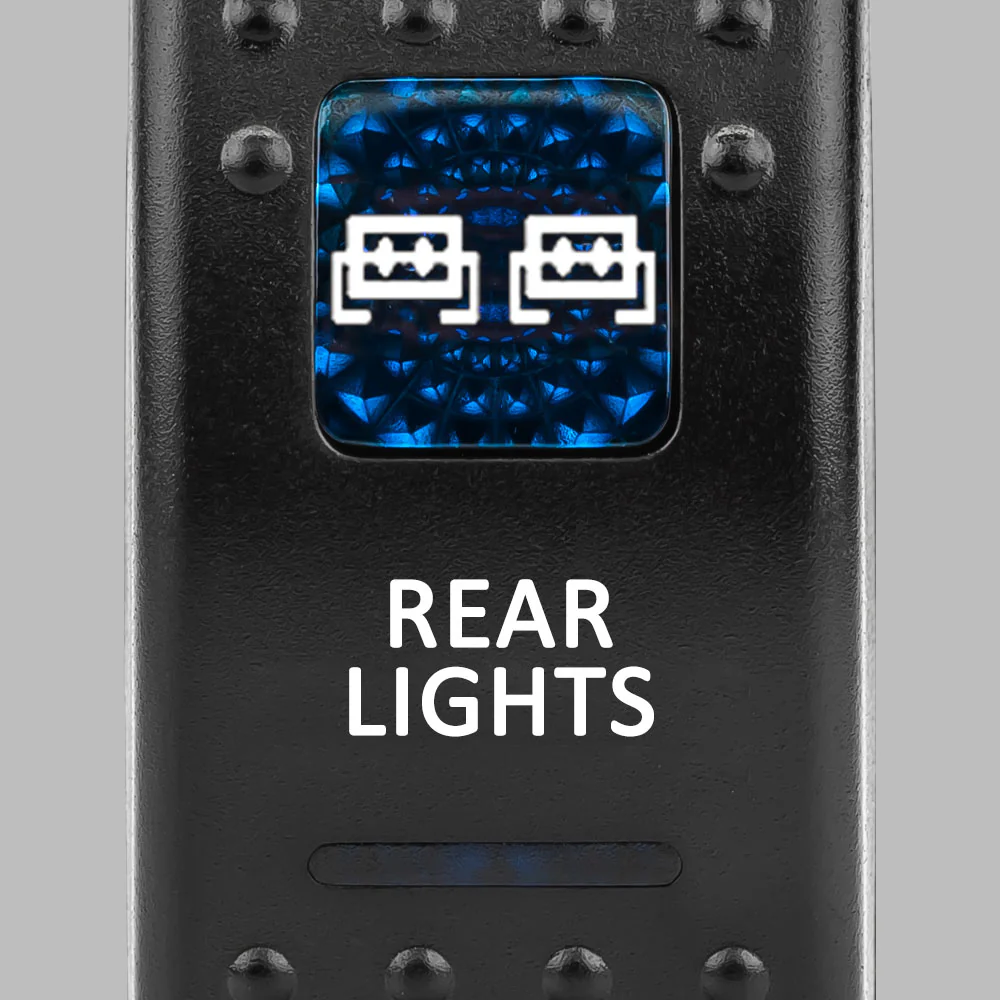

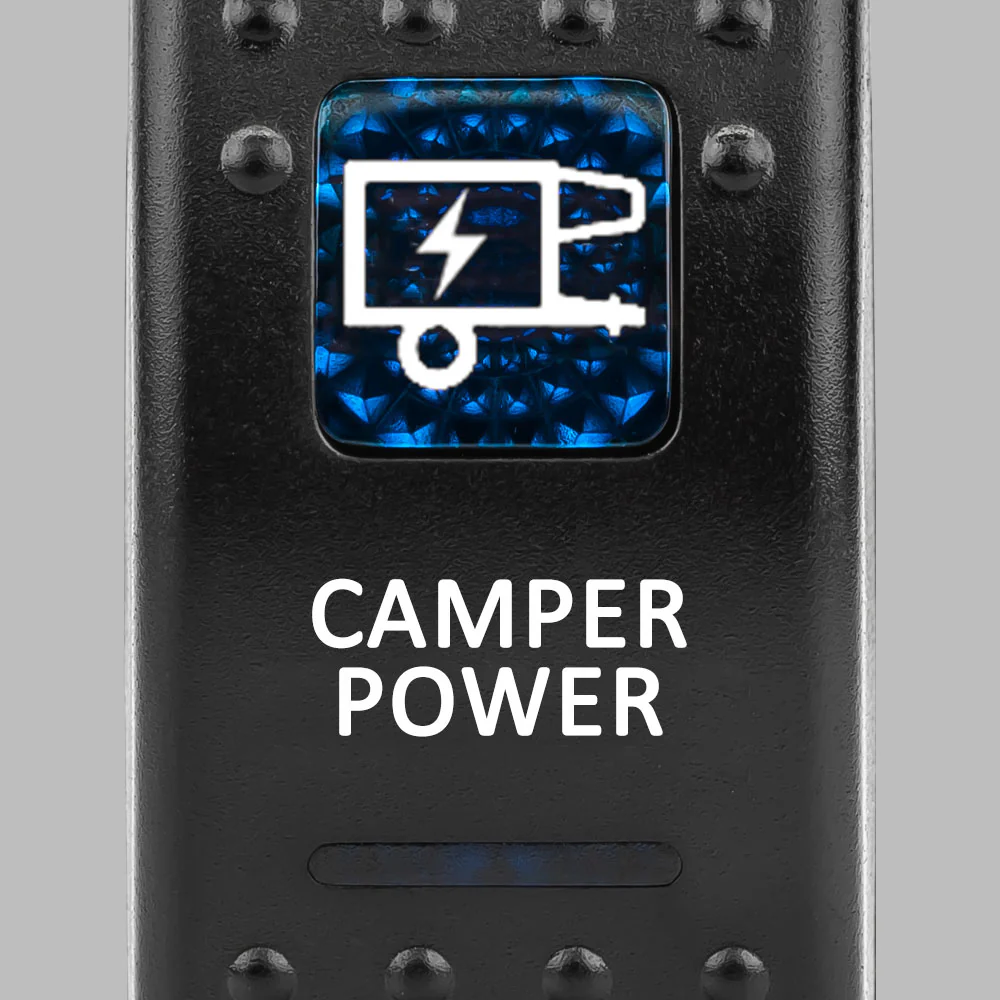

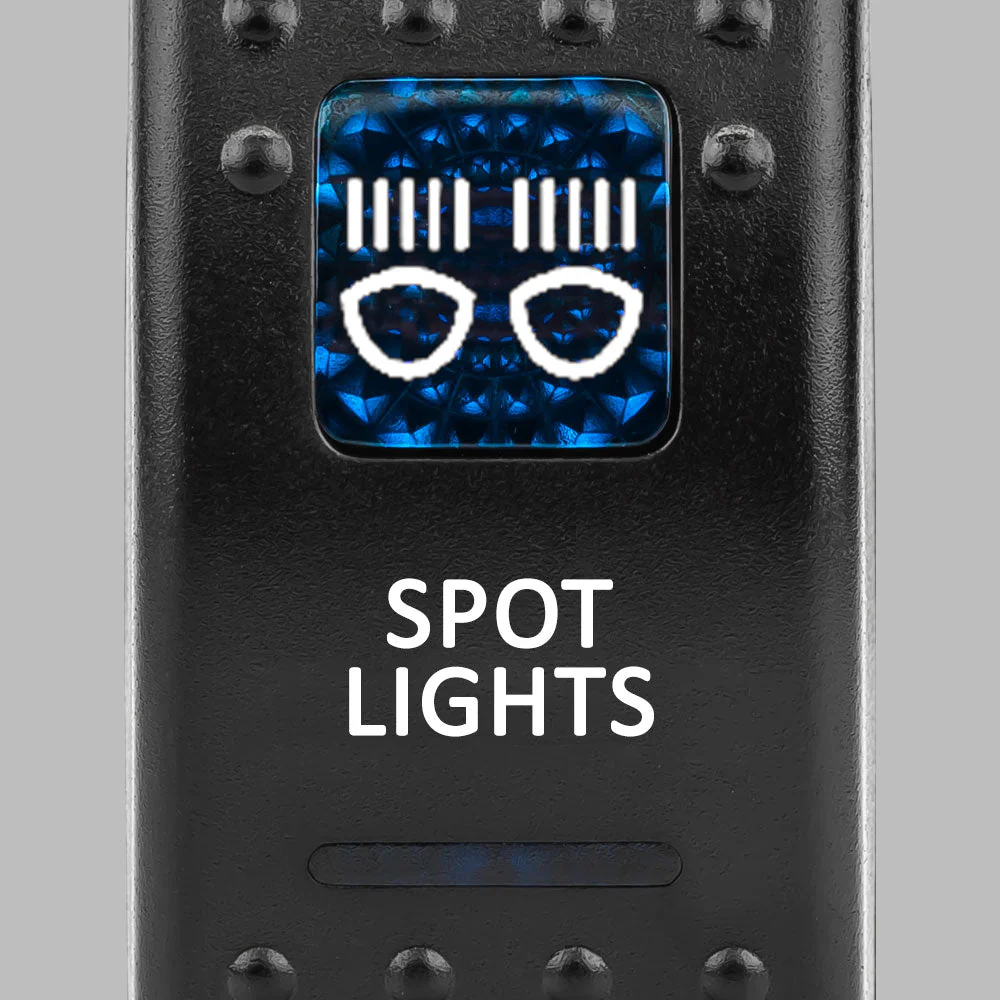

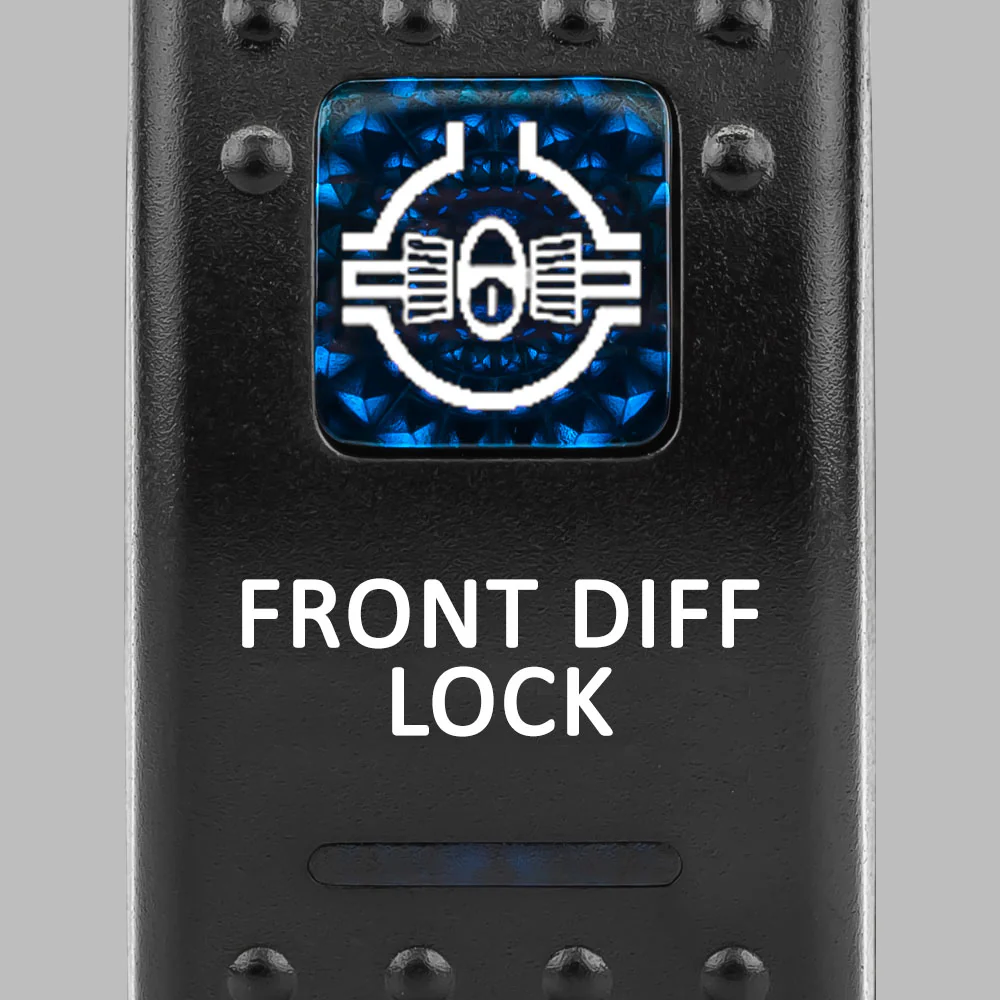

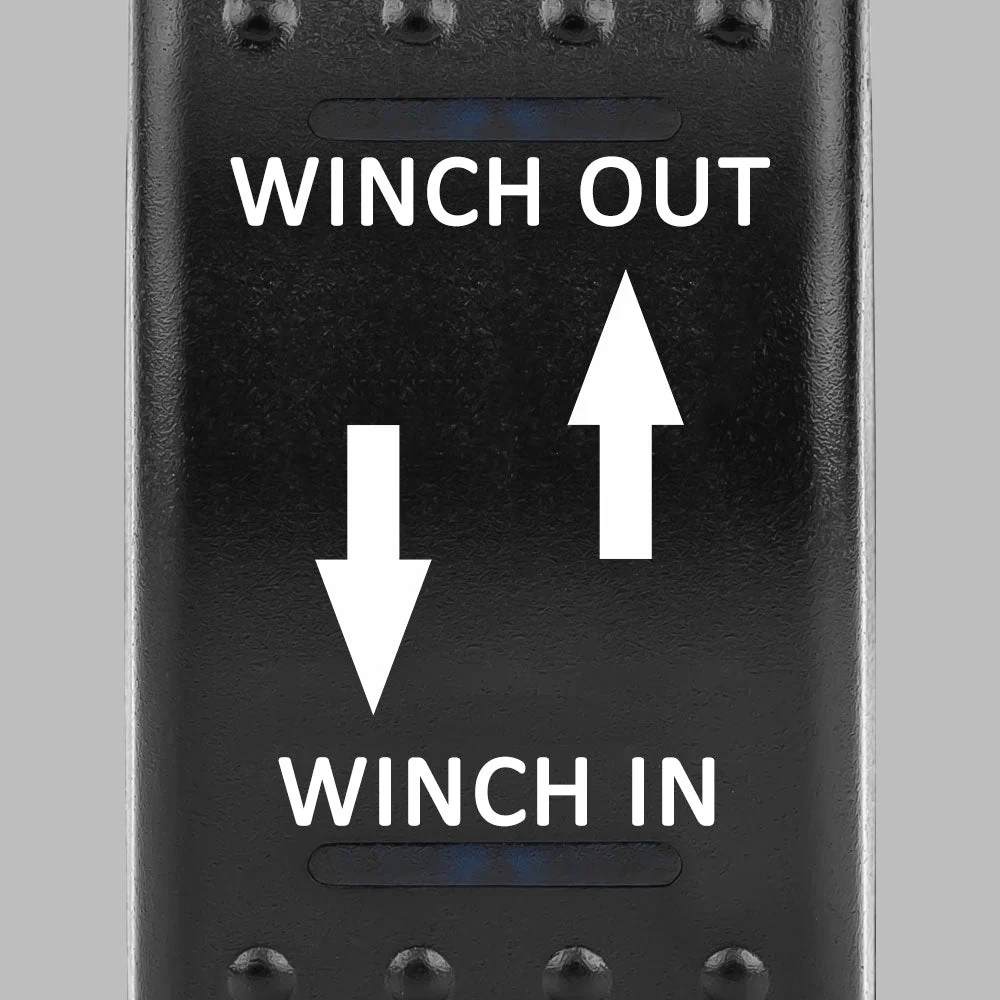

Suited to fit all vehicles with holder dimensions of 36.83mm x 21mm. Available in 21 variants of print from light related to accessories and auxiliaries throughout your vehicle.

OPERATION

Simple On/Off function with dash & power illumination, text lighting up whilst the vehicles dash lights are active and icon when the chosen device is currently active. Blue backlit illumination.

OEM FITMENT

Complete OEM fitment with a clean finish to maintain the factory look to the inside of the cabin. Included diagram for quick & easy installation.

VIDEO

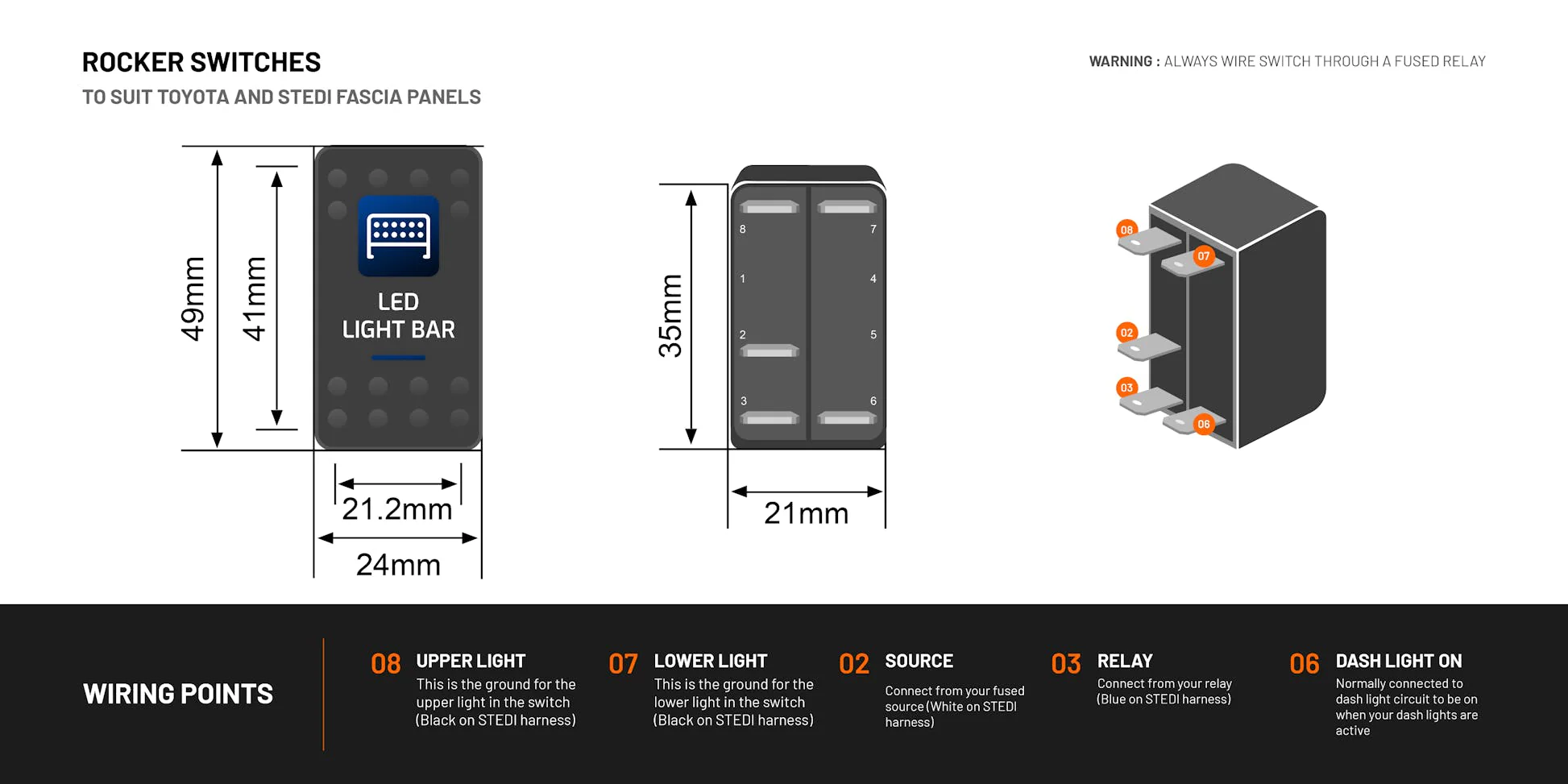

WIRING DIAGRAM

THE NITTY GRITTY.

STEDI high-quality 12-volt Rocker Switch.

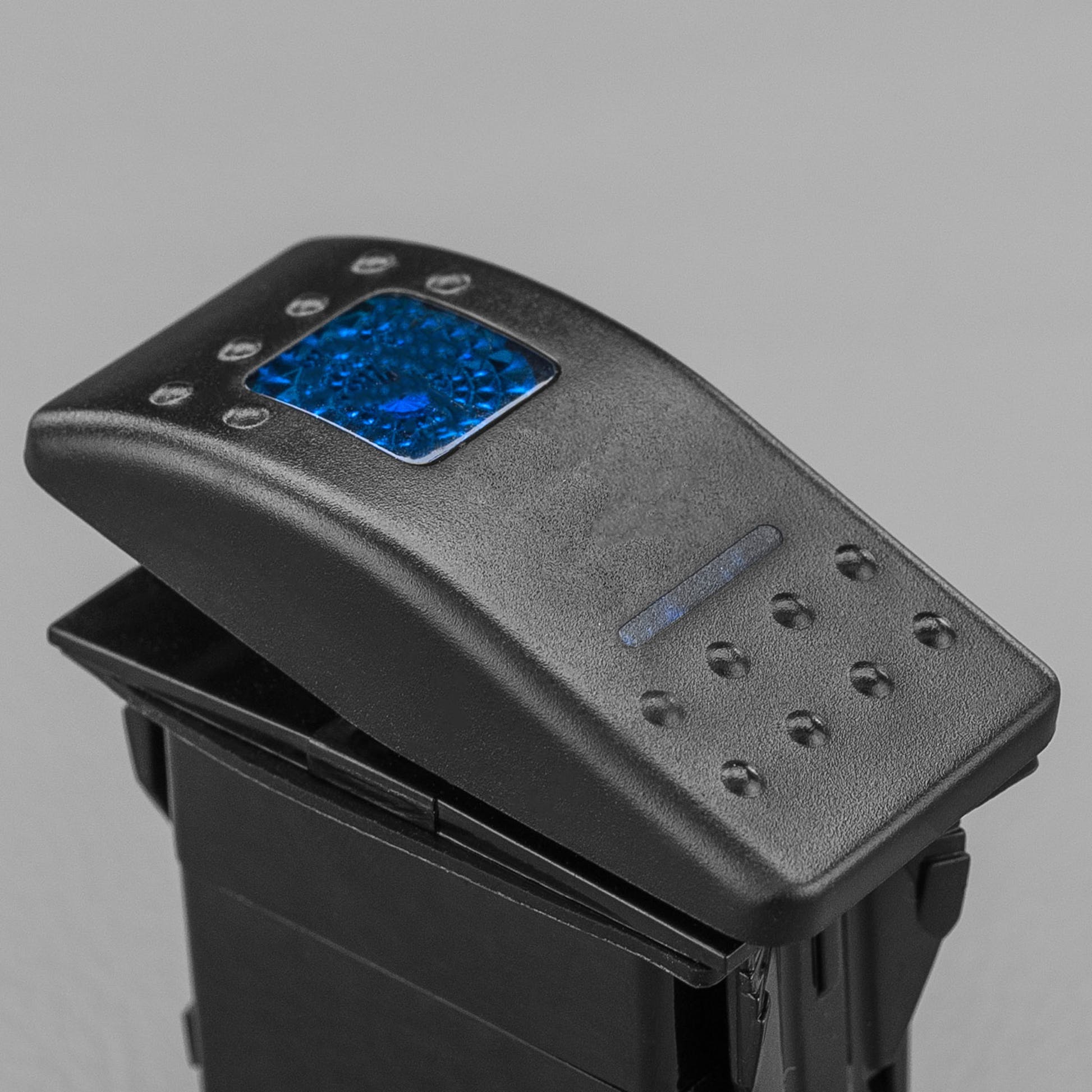

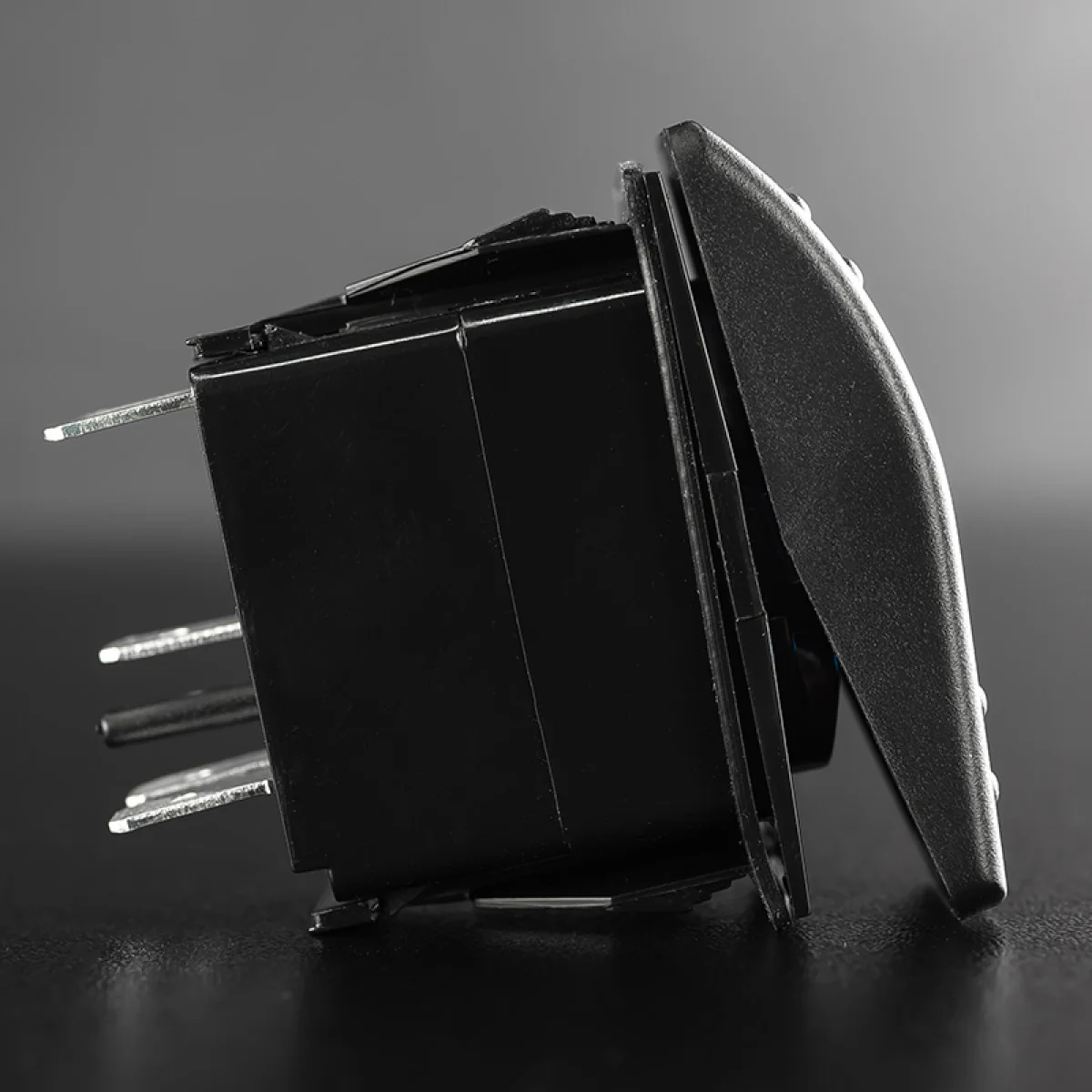

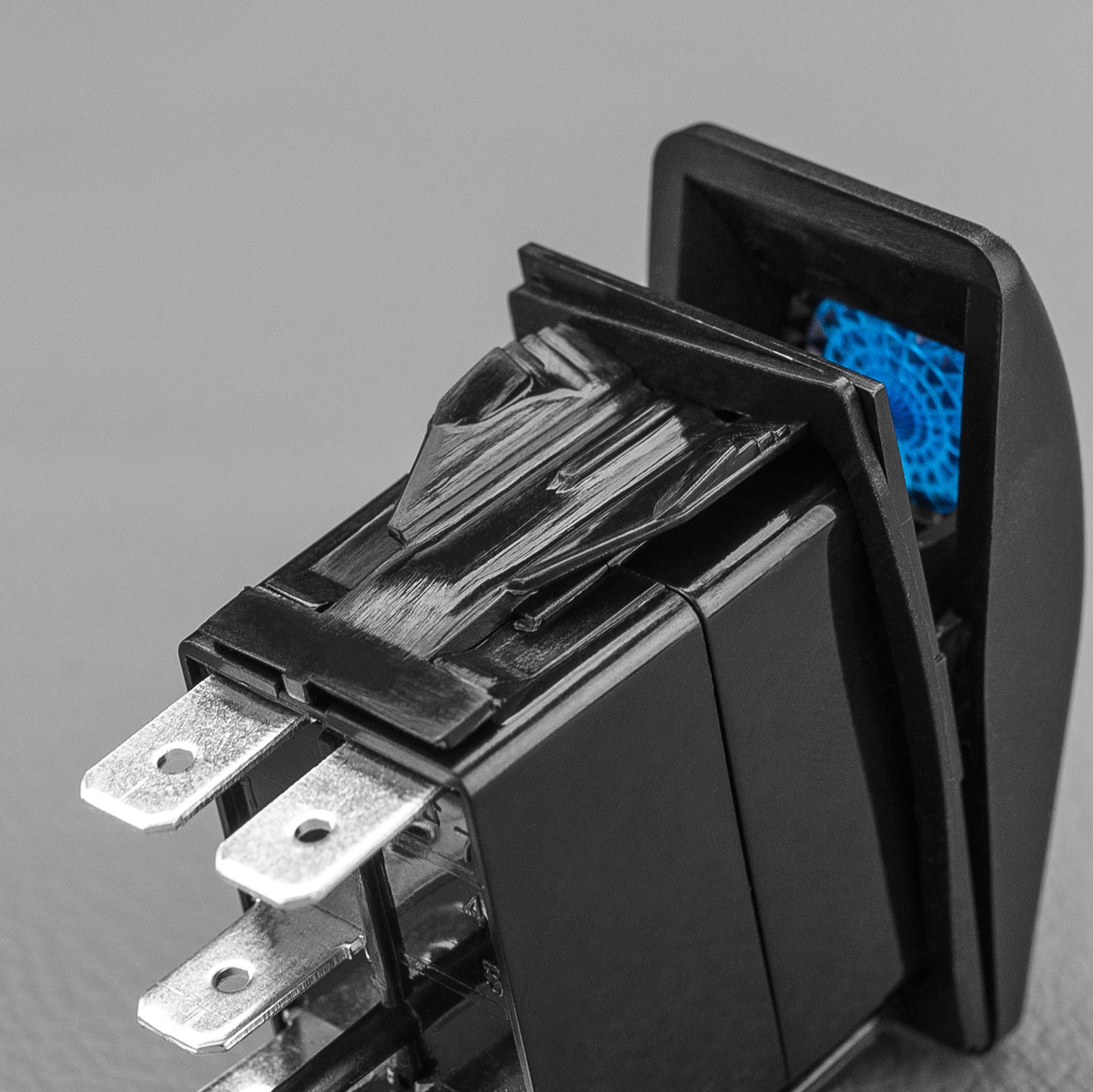

Single throw ON / OFF switch designed to operate 12-volt driving lights. The switch surface size is 49mm x 25mm and uses a standard din size mounting hole of 36mm x 22mm, which is the standard size in most vehicles. Please ensure you check these measurements to ensure the correct fitment.

  • Single Pole Single Throw ON-OFF switch

  • Robust design

  • The upper backlight light is ON when the switch is pressed UP.

  • Lower backlight can be wired to your dash light circuit for the constant backlight to switch

  • Waterproof rating of IP66.

  • Same size as the switches sold at well-known 4x4 store

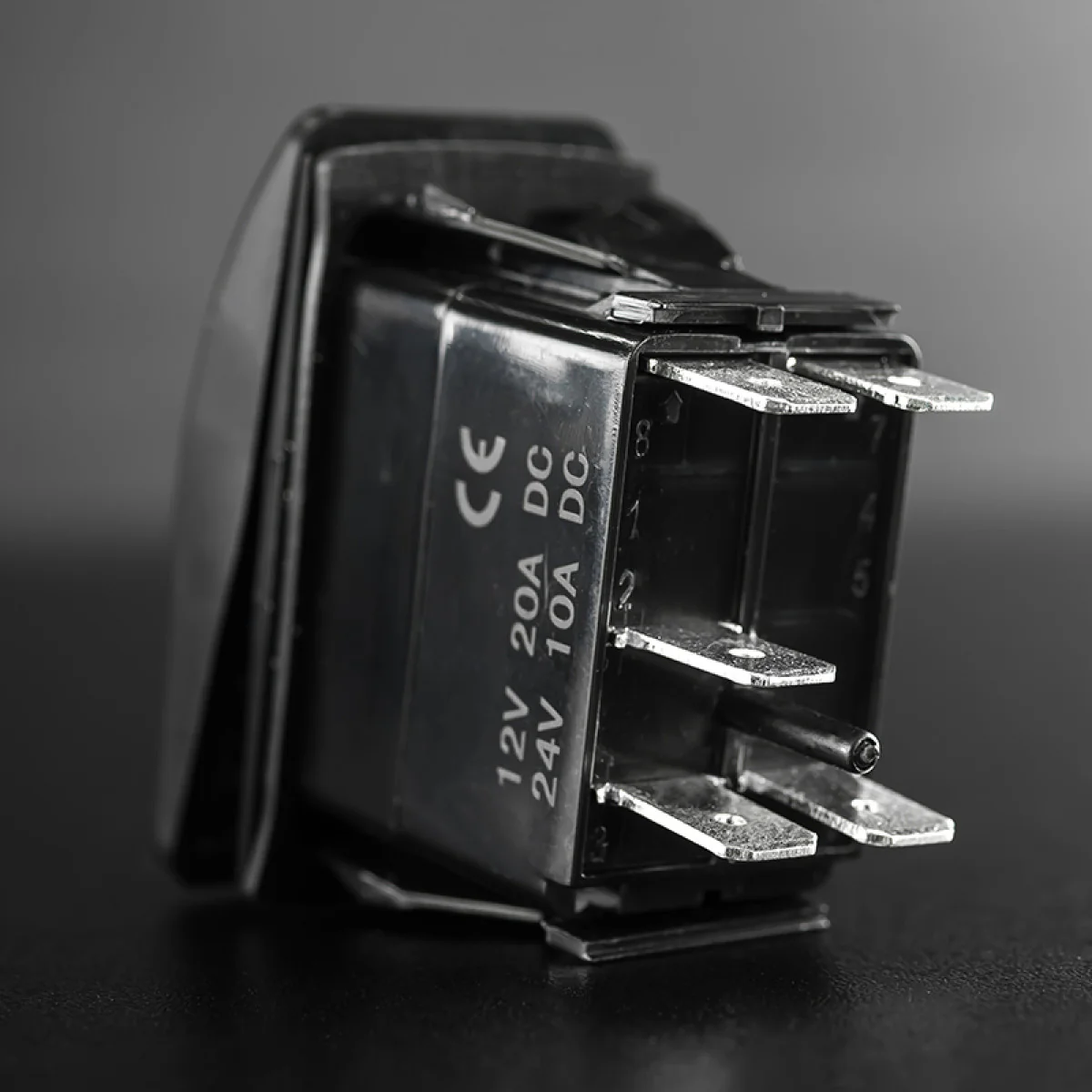

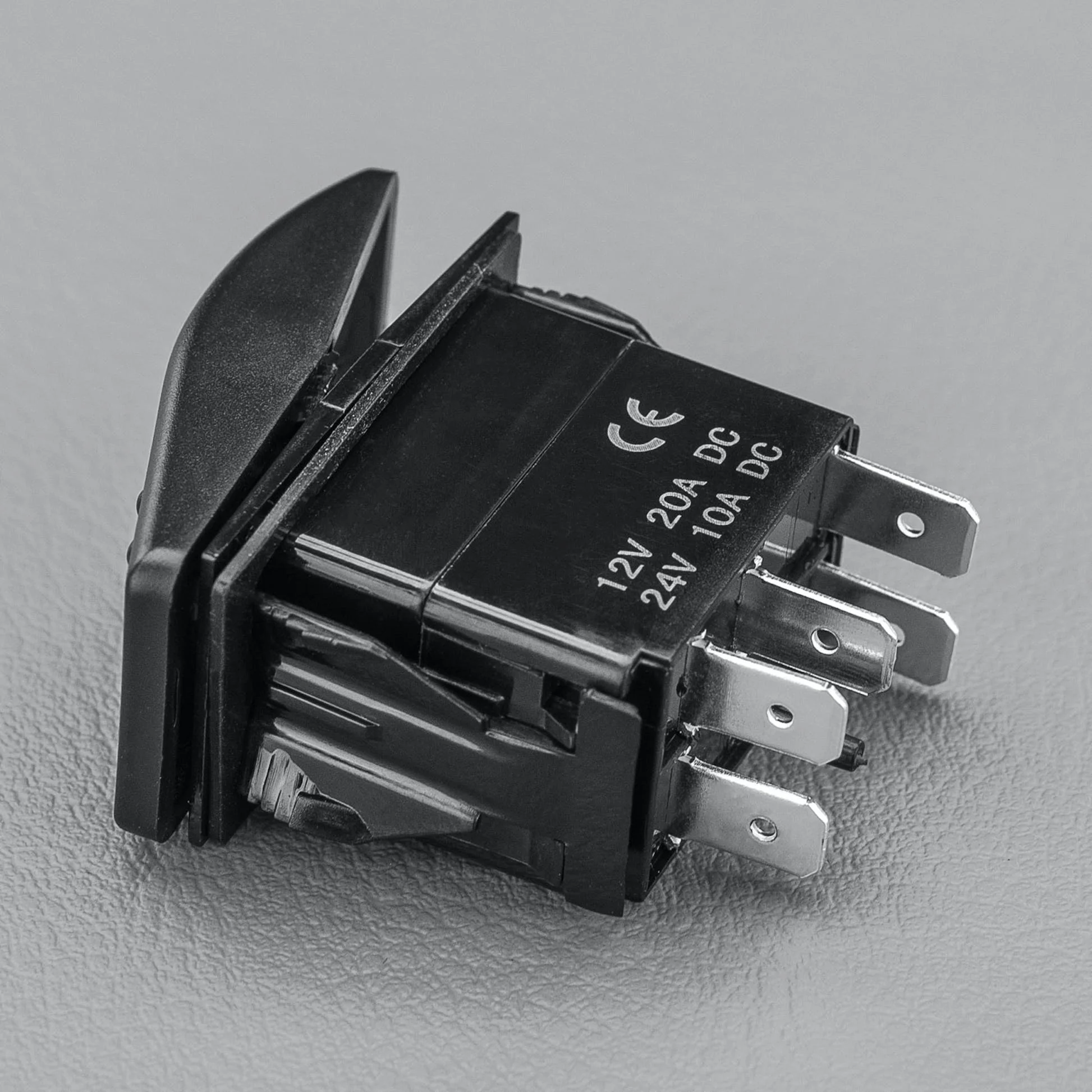

  • Rated 20A 12V / 24v 10A

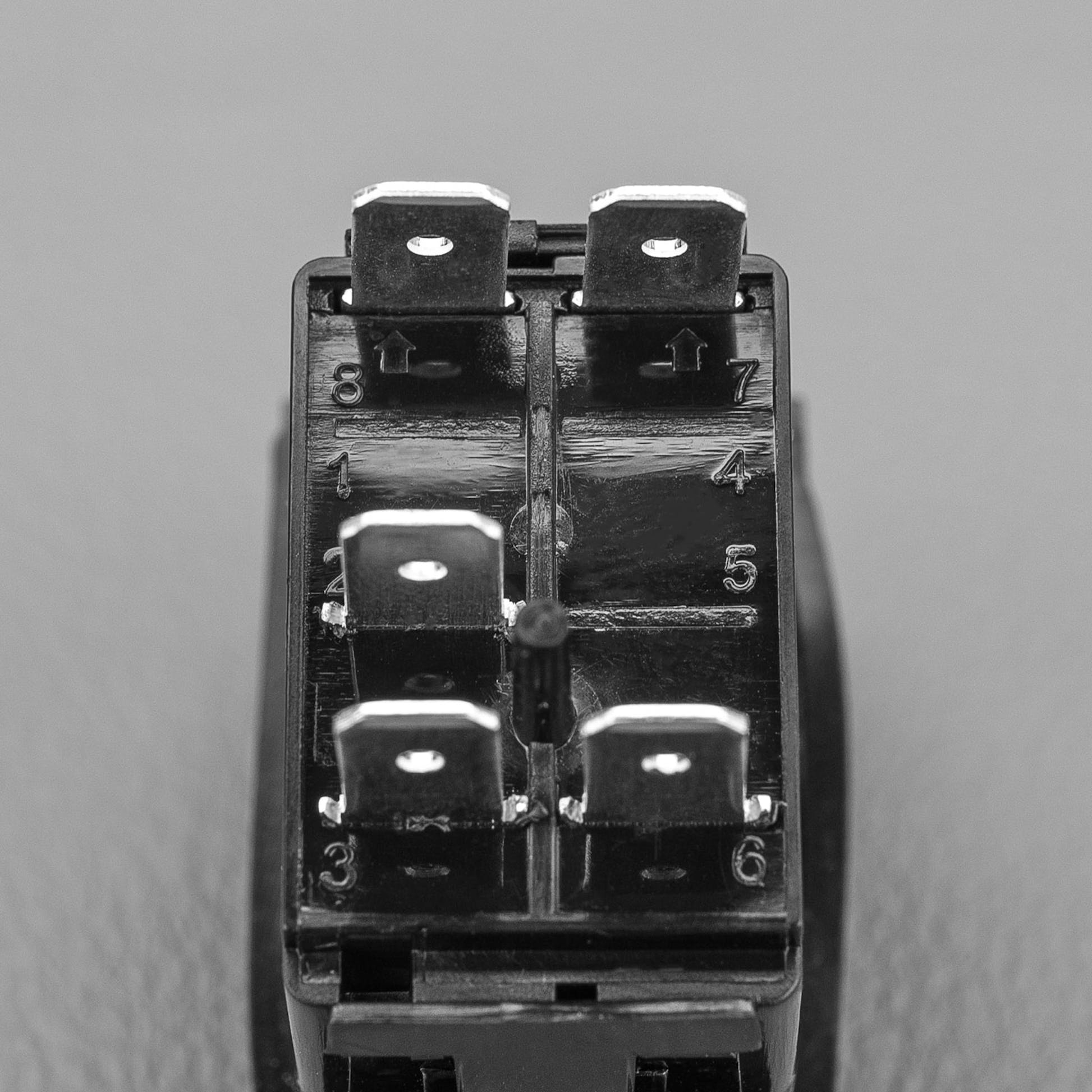

  • 5 pin

  • Wiring diagram is supplied with the switch.

  • Cutout dimensions 21mm x 36.83mm

    Whilst our rocket switches are 20amp rated, we strongly recommend that power is run via inline fuse.

    All graphics and text are printed on the switch face using the state of the inks to ensure long life. Unlike imitation switches that use stickers prone to wear.

TECH SPECS
CUTOUT DIMENSIONS 21mm x 36.83mm
HOLDER DIMENSIONS 36.83mm x 21mm
RATING 20A 12V / 24v 10A
WATERPROOF RATING IP66



WHAT'S INCLUDED

Carling Type Rocker Switch (in selected style).
