STEDI Micro V2 13.9" 24 LED Work Light (5700K)
DESCRIPTION
MICRO SIZE, MACRO PERFORMANCE
We’ve taken our popular Micro LED Lights to the next level. Integrating a beautiful 2700k amber temperature, the Micro V2 24 LED is designed to punch above its own weight.
LIGHTWEIGHT CONVENIENCE
The power and brilliance of the Micro V2 24 LED are packed into a convenient size of 353mm (length) x 25mm (height) x 40.6mm (depth). Did we mention that it weighs 0.3kg?

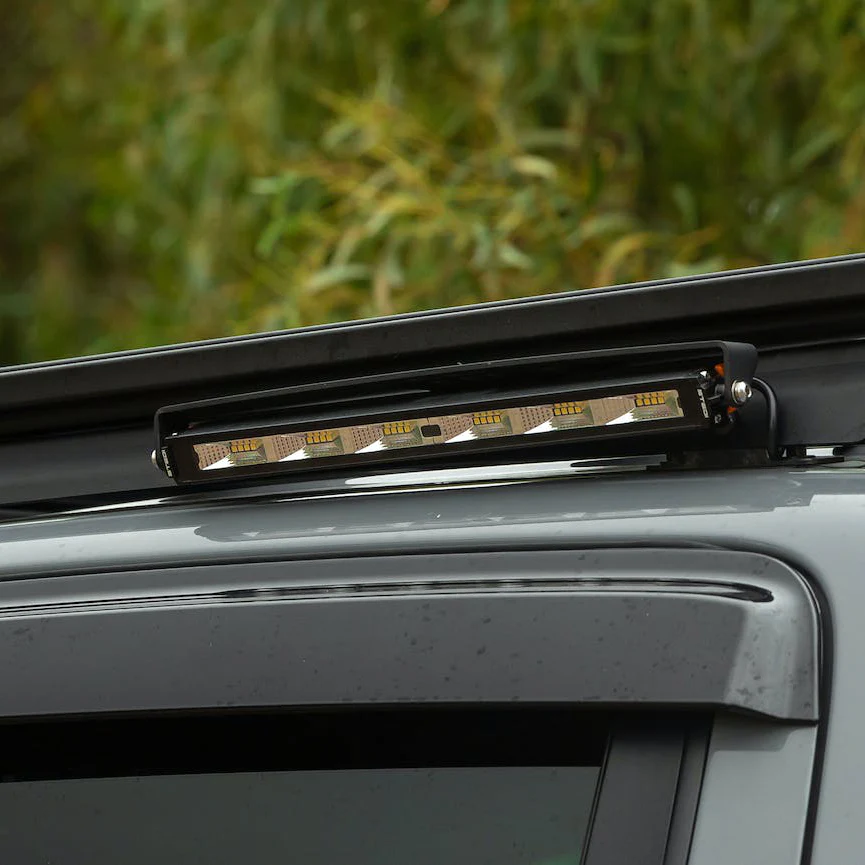

LOW PROFILE FITMENT
The Micro V2 24 LED provides a huge amount of application options. With the ability to fit into the tightest of spaces, you will be kept occupied with opportunities for enhancement.
NIGHT SHOT
LUX GRAPH
DIMENSIONS
THE NERDY TECH STUFF
THE NITTY-GRITTY.
KEY FEATURES
- 5700K Pure White CCT
- IP68 - Resistant to a maximum submersion depth of 1.5m for up to 30 minutes.
- DT connector included
TECH SPECS
| OPERATING VOLTAGE | DC 10-28V |
| POWER CONSUMPTION | 24W |
| AMP DRAW | 2A@12V/1A@24V |
| COLOUR TEMPERATURE | 5700K |
| LED | 24 x OSRAM GW PSLR 32. PM DRUISS |
| EFFECTIVE LUMEN | 2600lm |
| BEAM ANGLE | Height: 30° Width: 120° |
| ENVIRONMENT TEMP | -40° to 60°C |
| IP RATING | IP68 |
| LENS | Polycarbonate with Surface Hardening |
| FRAME/HOUSING | Extruded Aluminium |
| DT CONNECTOR | Included |
| MOUNTING BRACKET | 304# Stainless Steel |
| LIFETIME | 30, 000hrs |
| SIZE (mm) | 353 x 25 x 40.6 |
| WEIGHT | 0.5kg |
| CABLE LENGTH | 400mm |
| CERTIFICATION | CISPR25 |
WHAT'S IN THE BOX
- 1 x 13.9 Inch Micro V2 24 LED Work Light (White)

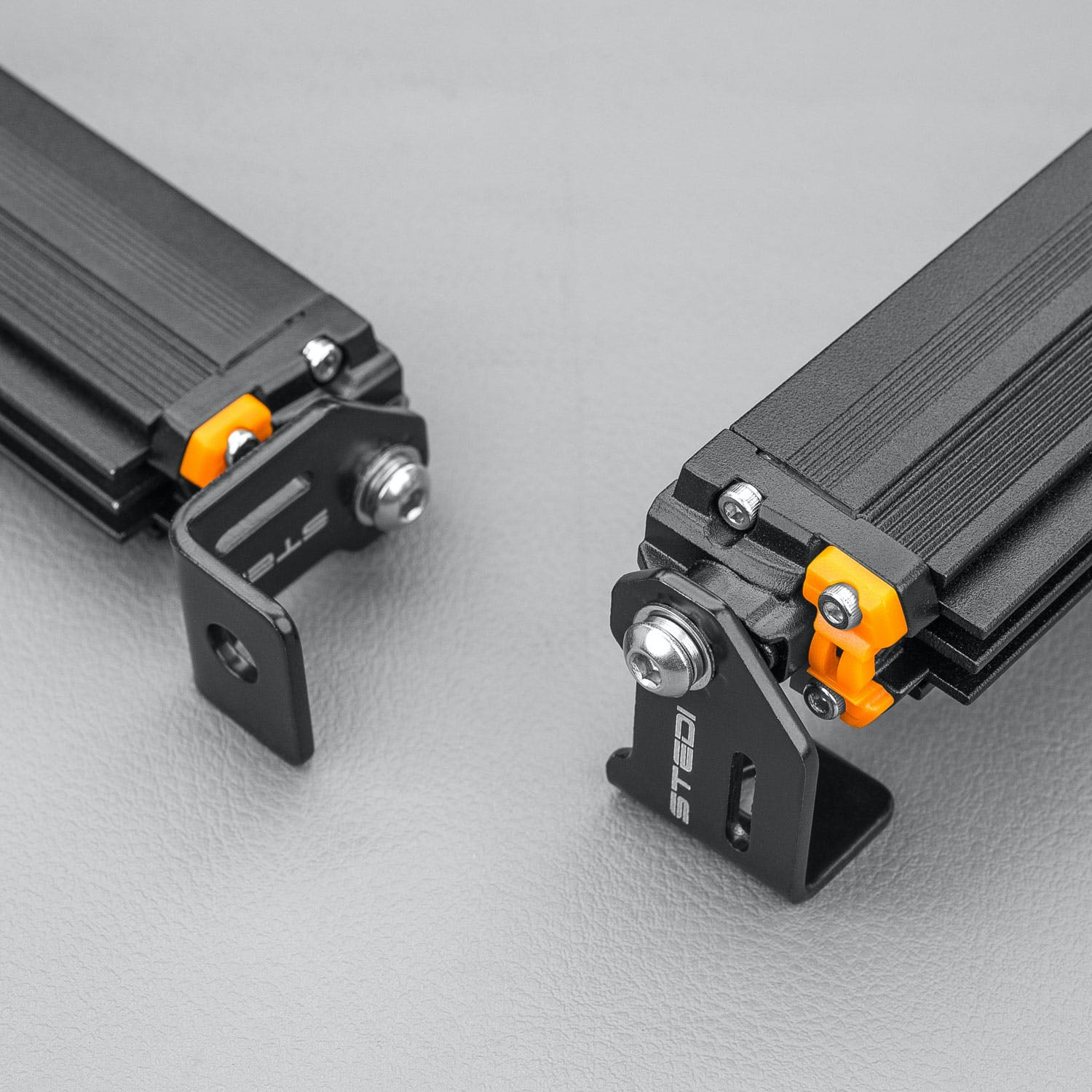

- 2 x 46mm Side Brackets
- 2 x M8 Bolts
- 2 x M6 Bolts
- 2 x Nuts
- 4 x Flat Washer
- 4 x Spring Washer

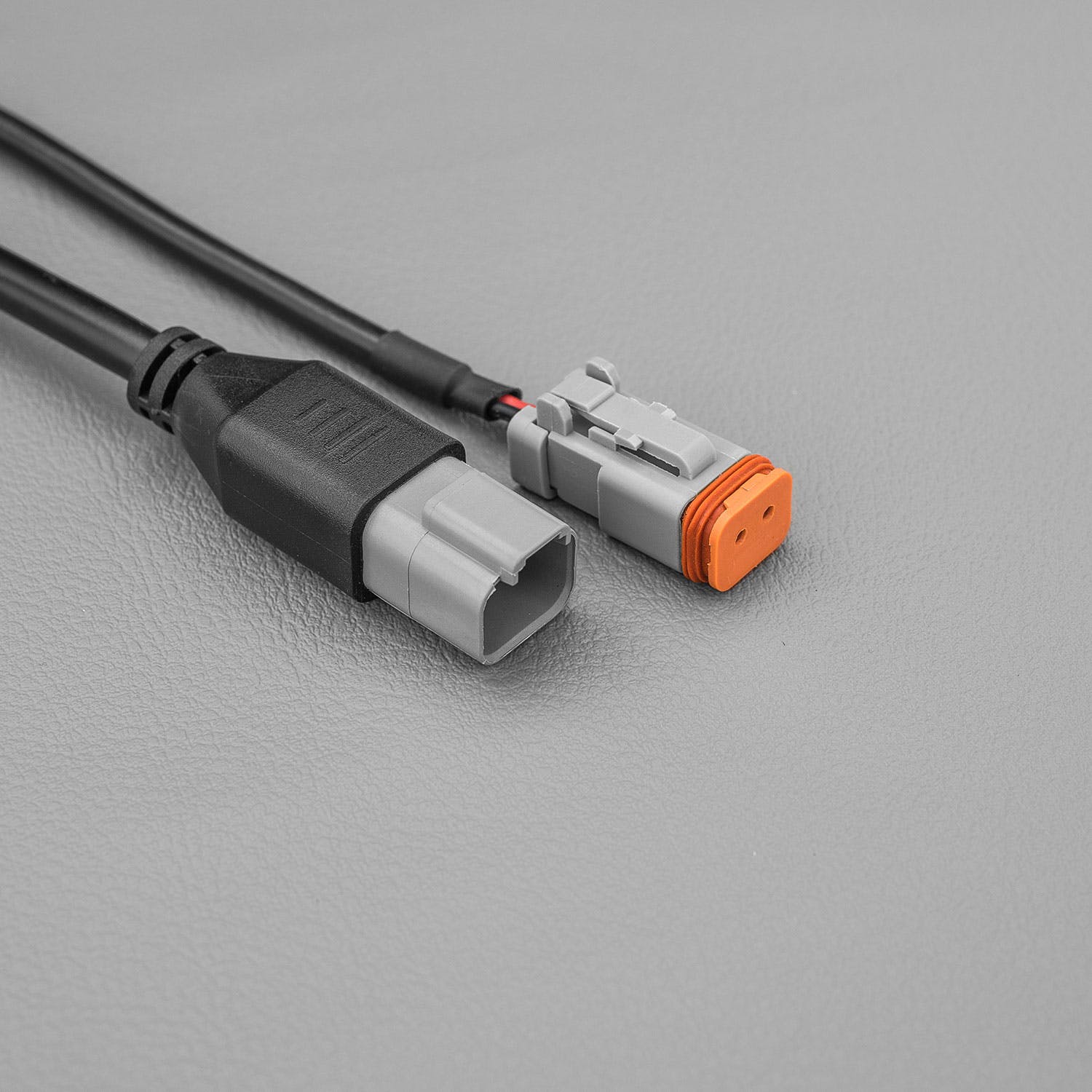

- Male & Female Deutsch Connectors
INSTALLATION GUIDE
