STEDI ST3K 11.5 Inch 10 LED Slim LED Light Bar
DESCRIPTION
THE DEFINITION OF CALIBRE

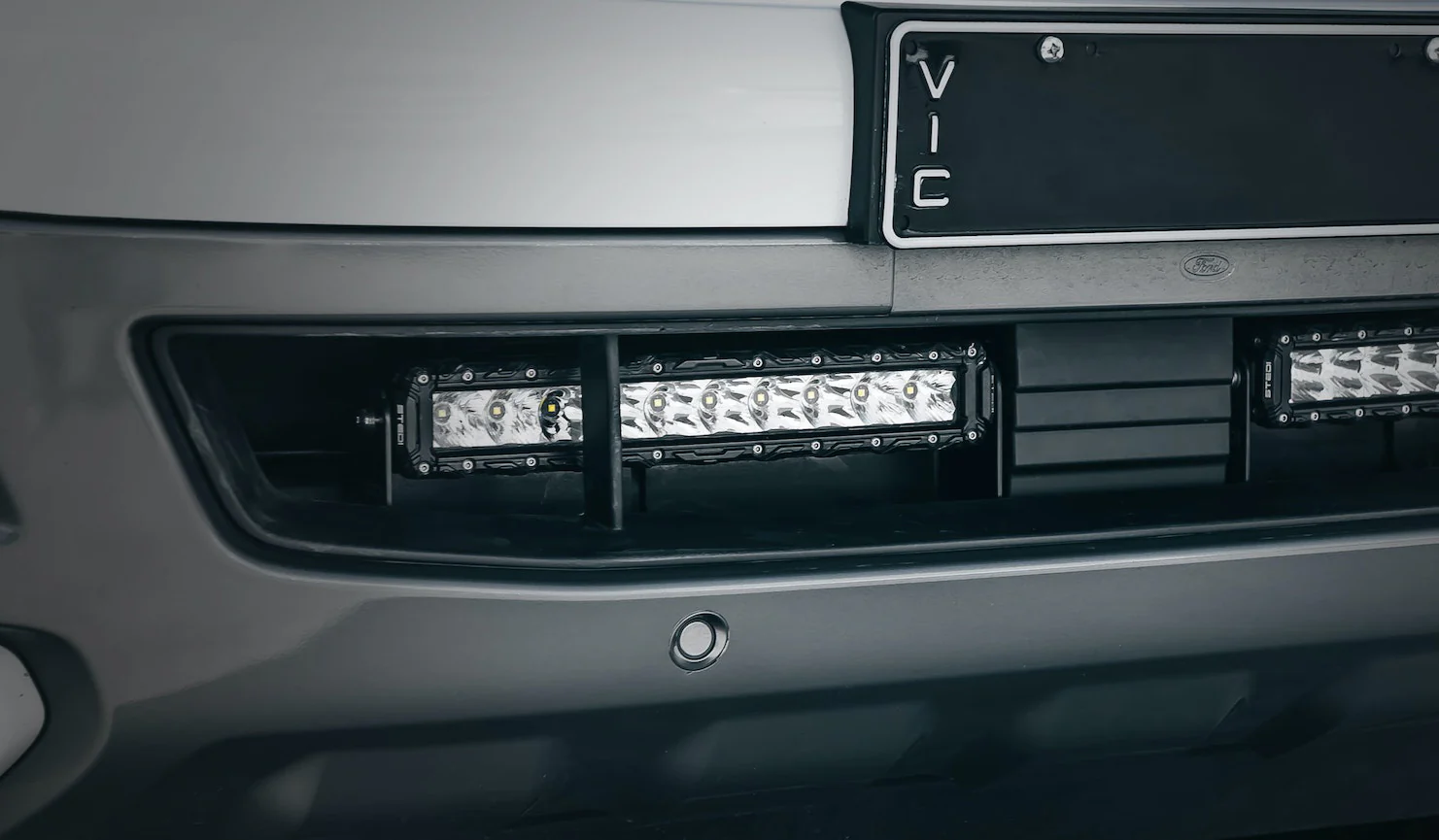

Our STEDI ST3K LED Light is designed to bring a large amount of light to a small amount of space. With a total height of just 63mm (with the side brackets attached), you will find the ST3K is able to be mounted on your front bar or grill, whilst maintaining the factory look of your vehicle.
TIMELESS DESIGN.Ā
The ST3K 11.5 Inch LED Light Bar utilizes the Pure Drive technology (of Type-X and ST4K fame), to deliver a powerful punch. The ST3K 11.5 Inch LED Light Bar can also be mounted in tight spaces, allowing it to suit a wide and unexpected range of vehicles.Ā
BRILLIANCE IS THE NAME OF THE GAME.Ā
The ST3K range easily comparable to the STEDI Type-X and ST4k range. With a strong penetrating beam of 348m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the perfect all-rounder with a low profile has arrived!
VIDEO
LUX GRAPH
DIMENSIONS
NIGHT SHOT
THE NERDY TECH STUFF
THE NITTY GRITTY.
MARKET-LEADING PERFORMANCE.

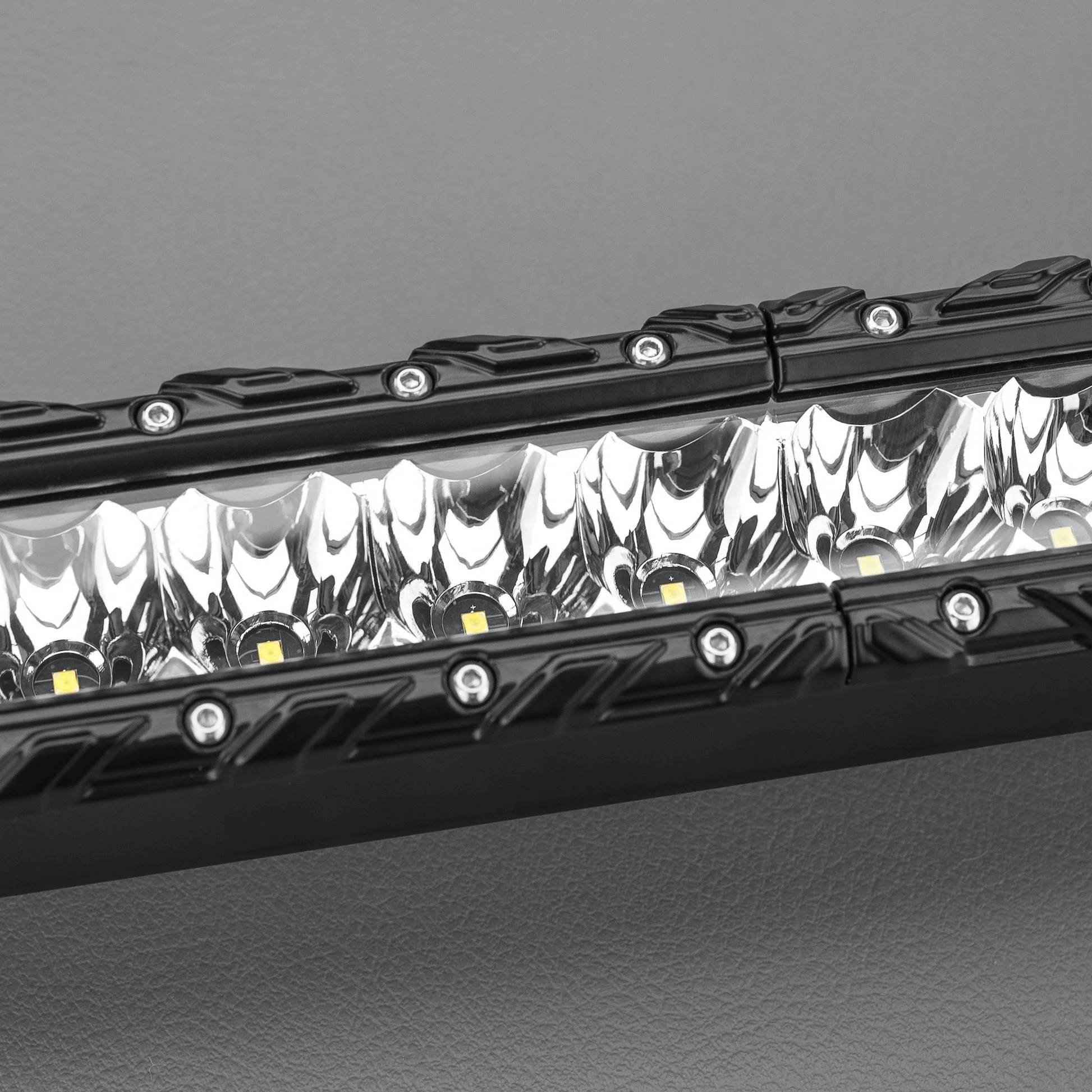

ST3K-10LĀ features 10 of OSRAM's finest OSLON LED, selected for unrivalled efficiency.
2 Flood + 6 Spot + 2 FloodĀ reflector distribution forms a remarkable beam that pushes the wide beam out at 50Ā° and spot beam at 5.8Ā° all the way to staggeringĀ 1 lux @ 348m;
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Driveā¢ circuit design allows 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch DT-2 connector.
Protected against EMC and RFI.
Backed by a 5 Year Replacement Warranty.
TECH SPECS
| LED | 10 x Osram Oslon White |
| Effective Lumen | 2,050Lm |
| Peak Intensity (Candela) | 121,600cd |
| Operating Voltage | 10-30V DC |
| IP Rating | IP68Ā |
| Current Draw | 2.1A @ 13.6vĀ |
| Colour Temperature (CCT) | 5700 Kelvin |
| Housing Material | Aluminium Extrusion & Cast |
| Lens | GEā¢ Lexan |
| Mounting Bracket | Powder Coated 3mm Stainless Steel |
| Bolts and FIttings | 3 Series Stainless Steel |
| Beam Type | Flood Spot Combo |
| Life Span | 50,000 Hours |
| Weight | 1.650 |
| Operating EnvironmentĀ | -40 - +50Ā° Celsius |
| PHOTOMETRIC DATA | |
| 10 M | 1,211 Lx |
| 50 M | 48 Lx |
| 100 M | 12 Lx |
| 200 M | 3 Lx |
| 348 M | 1 Lx |
WHAT'S IN THE BOX
- ST3K 11.5 inch LED LIGHT BAR
- Low Profile Stainless Side Brackets
- Stainless Fasteners

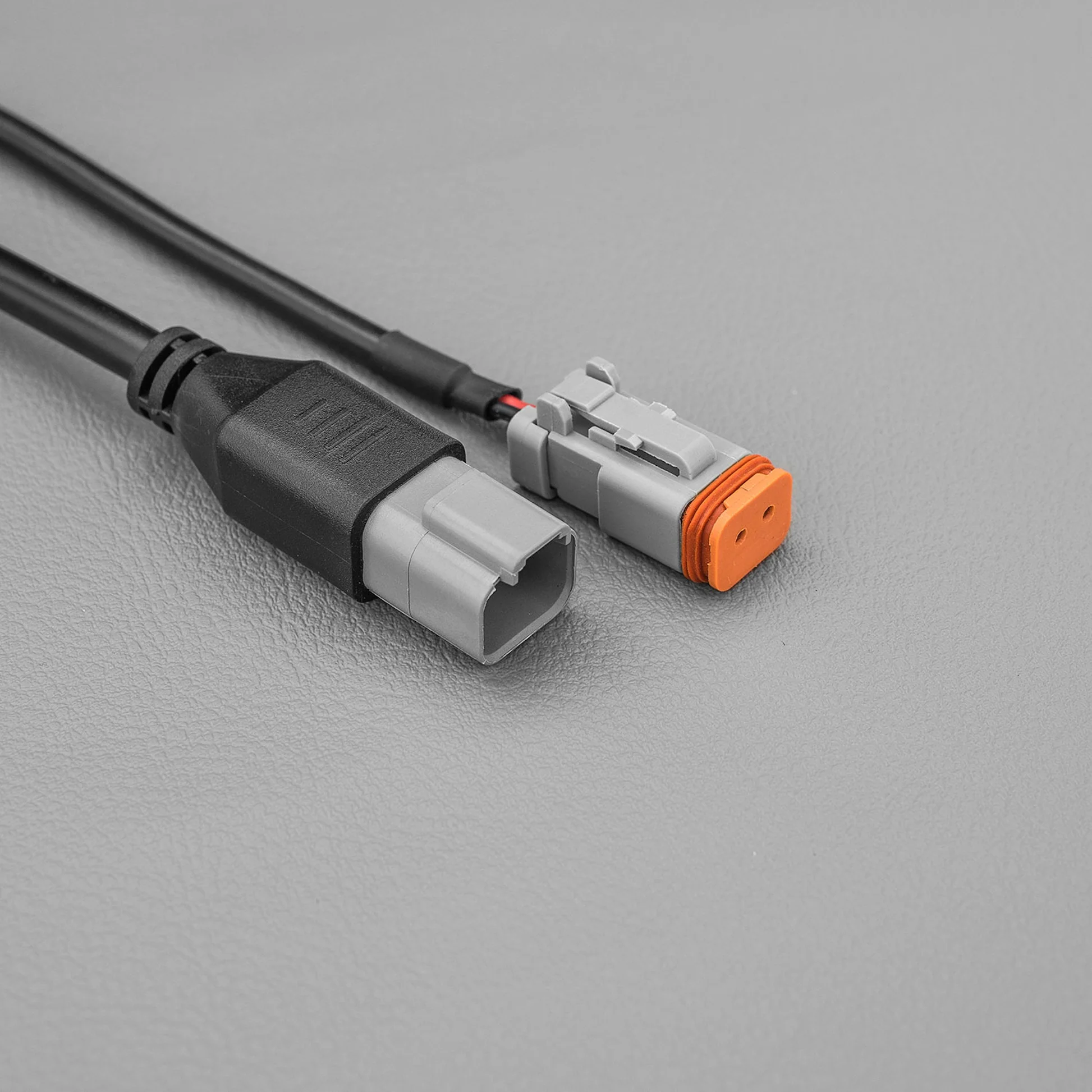

- DT Wire Tail
