DESCRIPTION

UNIVERSAL HOUSING SOLUTION.

If you're looking for an OEM-like LED upgrade, look no further down our Type A fog light which has mounting brackets to suit a wide range of factory fog lamp housing.

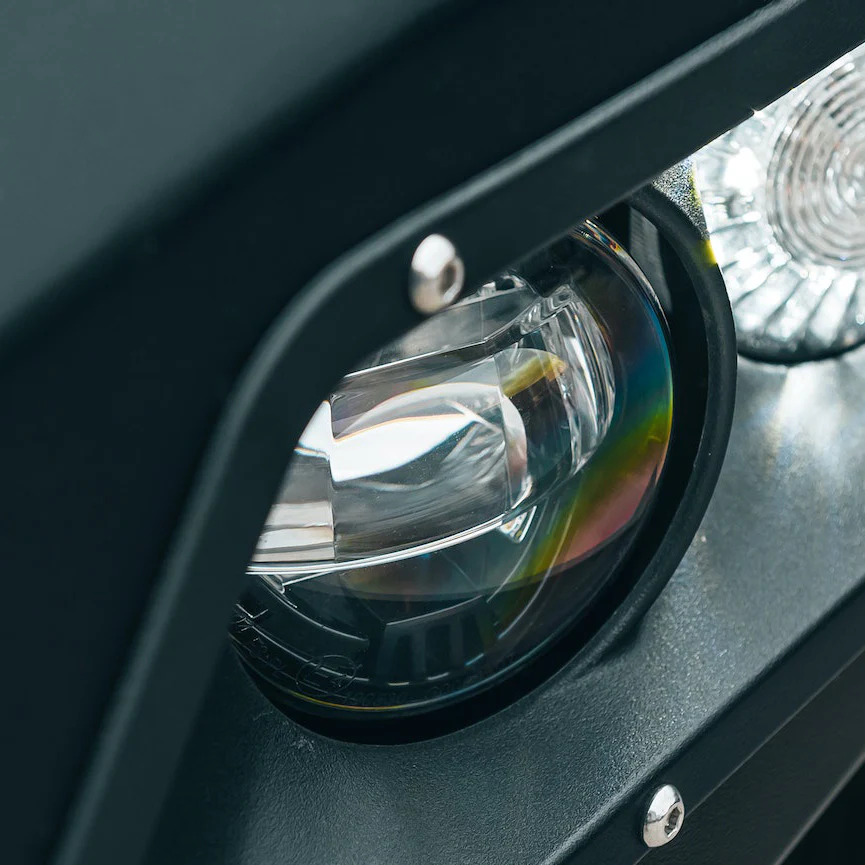

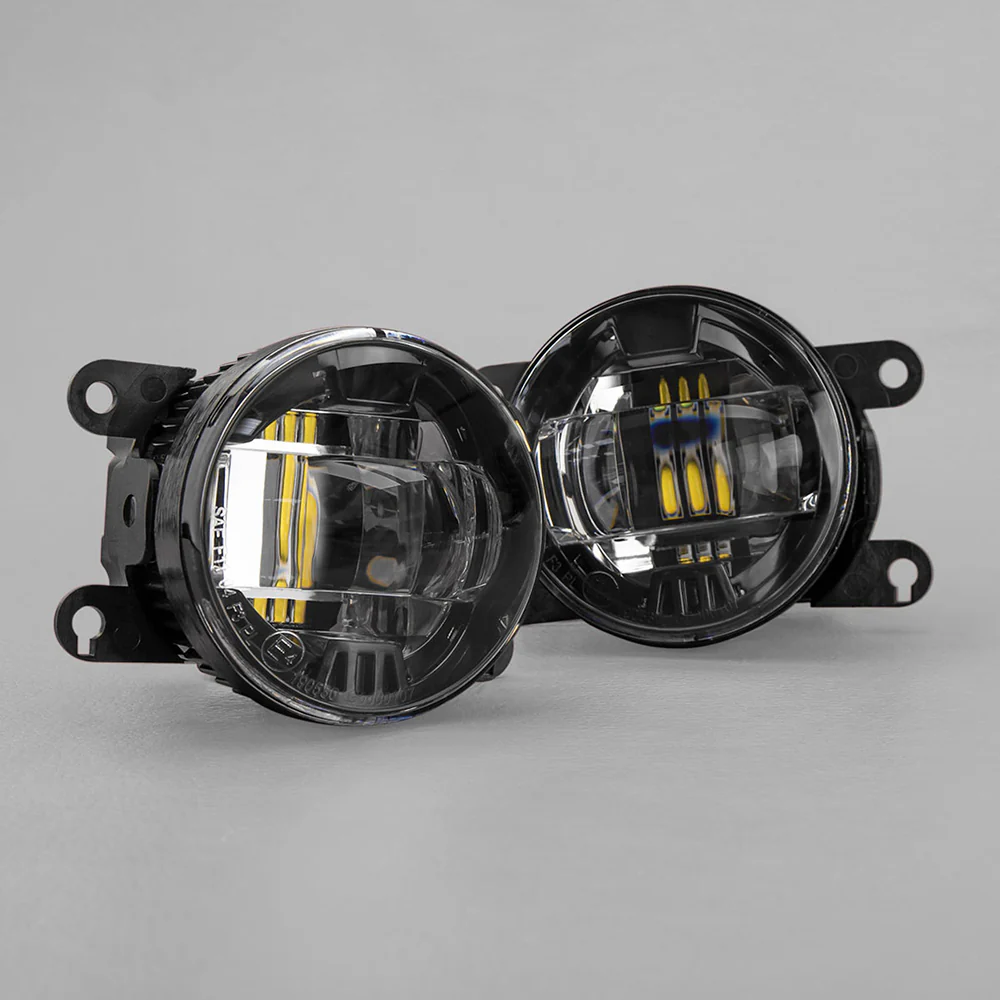

STEDI Universal Type A LED Fog Light Conversion Kit

UTMOST COMPLIANCE.

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

STEDI Universal Type A LED Fog Light Conversion Kit

LUX GRAPH

STEDI Universal Type A LED Fog Light Conversion Kit lux graph

DIMENSIONS

STEDI Universal Type A LED Fog Light Conversion Kit dimensions

THE NERDY TECH STUFF

THE NITTY-GRITTY.

KEY TECHNICAL DETAILS

If you're looking for an OEM-like LED upgrade, look no further down our Type A fog light which has mounting brackets to suit a wide range of factory fog lamp housing.

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.

Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.

TECH SPECS

HOUSING MATERIAL	Alloy Heat Sink
LED	Luxeon T LED
LUMEN	960LM (per light)
COMPATIBLE VOLTAGE	12v and 24v
LIFESPAN	50,000hours
CONNECTOR TYPE	Sealed
CERTIFICATION	CE, E4, RoHs, R87, IP67
FOG LIGHT DRAW	0.8a @ 13.6v
DIAMETER	90mm

OEM PART NO#

26150-89906-21 / 26150-8993B /26150-8990B / 26150-8992B / 26150-8994B

51858824 / 9670955280 / 33900-STK-A11
R: 33900-TY0-003 + L: 33950-TY0-003

84501-FJ000 / SU003-02518 / A4158200356 /
26150-3NA0A / 84503-FJ000 / 8321A36 / 6208Q3

8321A034 / 8321A144 / MN142091 / LR001587 / 6208F9
R: 8321A902 + L: 8321A901

26150-3XA0A / 26155-00Q0A / 26150-VD30A
35500-63J00 / 35500-63J02 / 5500-63J03
8200074008 / 5001874722 / 8321A097 / 4709052 / 088358
1209177 / 1209077 / 6710027 / 620662 / 620639 / 6206E1
UC2T51680 / 4F9Z 15200 AA

COMPATIBLE VEHICLES

Citroën

DS5: 2012 - 2017
DS4: 2011
BERLINGO: 2012 - 2017
C-CROSSER: 2007 - 2017
C4: 2004 -2009
C4 PICASSO: 2006 - 2007
C4 PICASSO: 2011
C5: 2001 - 2007
C-QUATRE: 2009

Ford

C-MAX: 2010 - 2017
ECOSPORT: 2013 - 2017
EXPLORER: 2011 - 2015
FIESTA: WQ - WP 1/2004 - 8/2008 including XR4
FOCUS: LT 5/2007 - 3/2009 Fits XXR5 from 2/2008 to 12/2011
FREESTYLE: 2005 - 2007
FALCON FG: Series 2/2008 - 2013 (XT, XR6, XR8, G6 & G6E)
TERRITORY SZ: 6/2011 - 2013 (Excluding Titanium Model)
FUSION: 2014 - 2017
MUSTANG: 2015 - 2017
RANGER: PX1 + PX2 2012 - Current (Not including Wildtrak PX2)
TAURUS X: 2008 - 2009
TRANSIT: 2/2006 onwards
TRANSIT CONNECT: 2011 - 2013

Holden

COMMODORE: VE 6/2006 to 9/2010 (Series 1)

Honda

CITY: 2014 - 2016
CR-V: 2012 - 2014
CR-Z: 2013 - 2015
JAZZ: 2014 - 2017

Infiniti

EX35: 2008 - 2012
EX37: 2013 - 2017
FX35: 2006 - 2012
FX45: 2006 - 2008
FX37: 2013 - 2017
FX50: 2009 - 2011
G25: 2011 - 2012
G37: 2009 -2013
M35: 2012
M37: 2011 - 2012
M56: 2012
QX56: 2011 - 2012
Q70: 2014 - 2017
QX70: 2014 - 2017

Jaguar

X-TYPE: 2004
S-TYPE: 2005 - 2009

Land Rover

FREELANDER 2: 2007
DISCOVERY 4

Mazda

BT-50: 2012 - present

Mercedes Benz

CITAN W415: 2012 - 2017

Mitsubishi

ASX: 2010 - 2017
MIRAGE: 2013 - 2017
OUTLANDER: 2005 - 2007
OUTLANDER: 2010 - 2011
OUTLANDER: 2012 - 2017
PAJERO: NS / NT 7/2006 - 9/2011
PAJERO SPORT 2015 - Current
TRITON: 2010 - present

Nissan

CUBE: 2009 - 2014
JUKE: 2010 - 2014
MURANO: 2008 - 2014
NV200: 2010 - 2017
PATROL: 2004 - 2009
PATROL: 2010 - 2017
QASHQAI: 2014 - 2017
TIIDA: 2006 - 2017
LEAF: 2011 - 2017
NAVARA D40: 2010 - 2013
PATHFINDER: 2004 - 2012

Opel

AGILA: 2008
ASTRA G: 1998 - 2003
ASTRA H: 2004 - 2009
VECTRA: 2005 - 2008

Peugeot

4007: 2007 - 2017
207: 2006 - 2008
301: 2013
307: 2005 - 2006
407: 2005 - 2008

Porsche

CAYENNE: 2011 - 2014

Renault

LATITUDE: 2011
CAPTUR: 2013 - 2017
LOGAN: 2008
MEGANE: 2002 - 2009

Subaru

XV 2011 - 2017
BRZ 2012-2014
FORESTER 2013-2014
LIBERTY 2014+
OUTBACK 2010-2012
IMPREZA (not WRX/STi, and requires H16 adapter) 2010-2012
WRX/STi 2012-2013
WRX/STi 2015+

Suzuki

ALTO: 2008 - 2017
A-STAR: 2009 - 2017
ALIVIO: 2014 - 2017
GRAND VITARA: 2005 - 2017
SPLASH: 2007 - 2017
SWIFT: 2006 - 2017
SX4: 2008 - 2017
VITARA: 2006 - 2017
JIMNY: 2000 - 2018 (Third Generation)

Toyota

FT 86: 2012 - 2017
GT 86: 2012 - 2017
SCION FRS: 2012 - 2017

WHAT'S IN THE BOX

2 x STEDI Universal Type A Fog Lights
Fasteners Included

Mazda

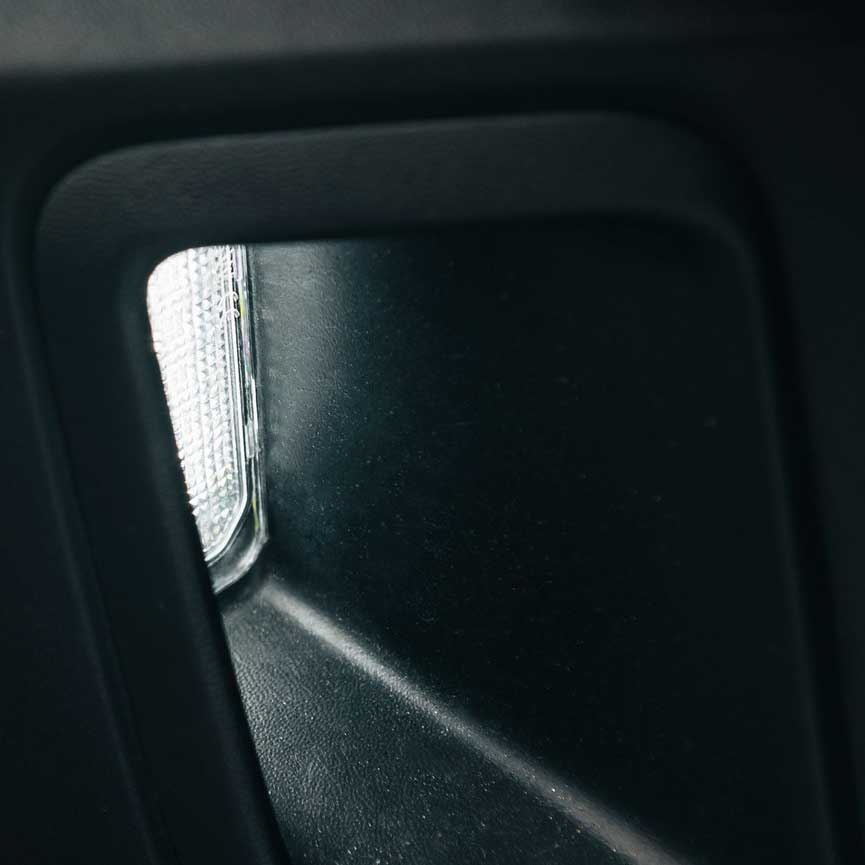

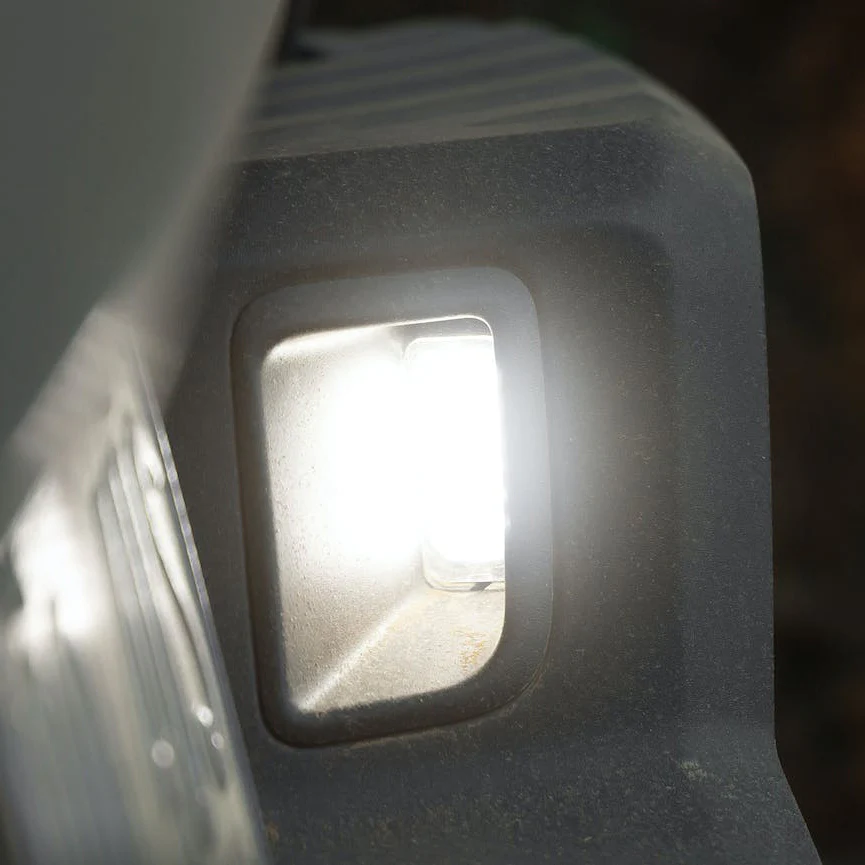

STEDI Ford Ranger/Everest License Plate LED Light Upgrade

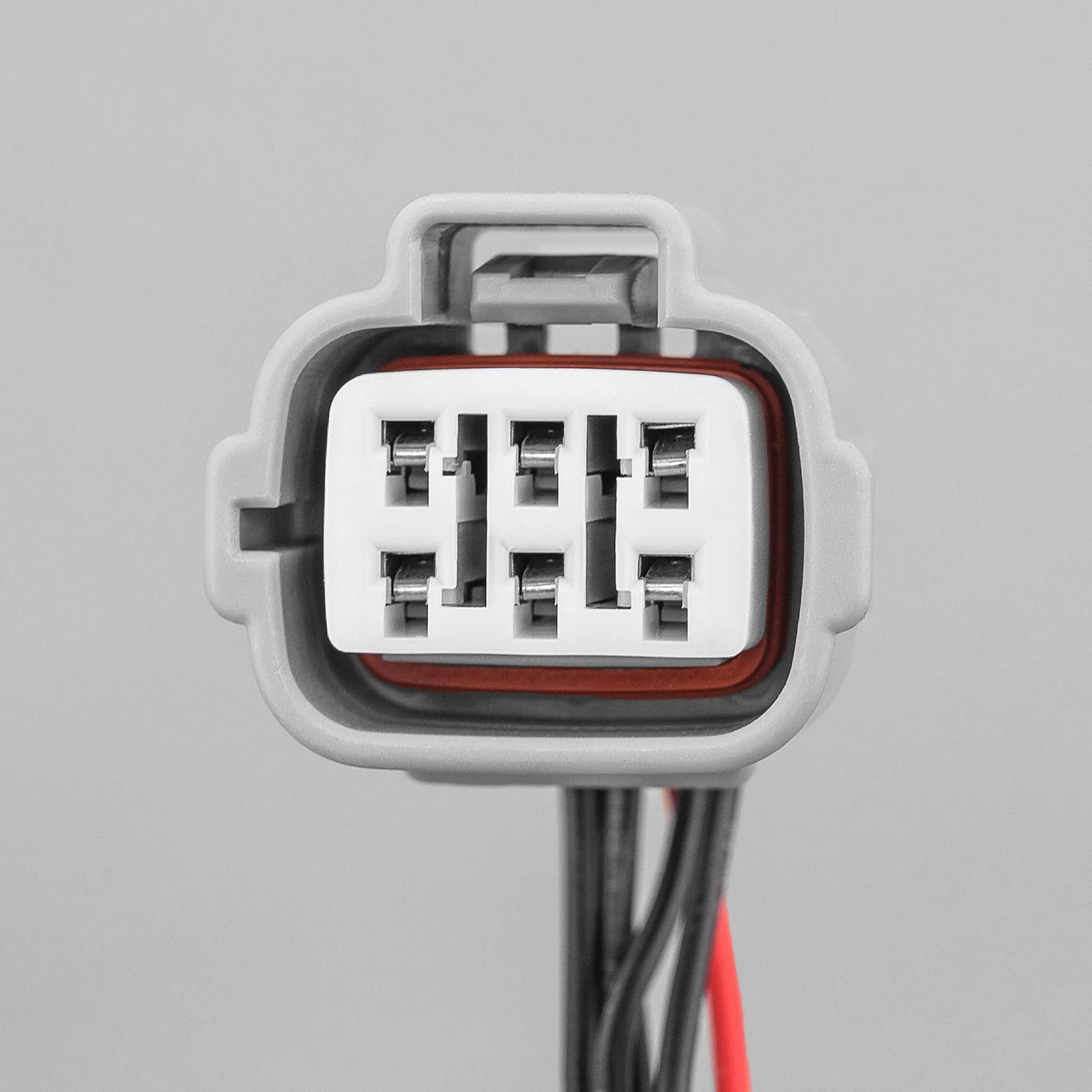

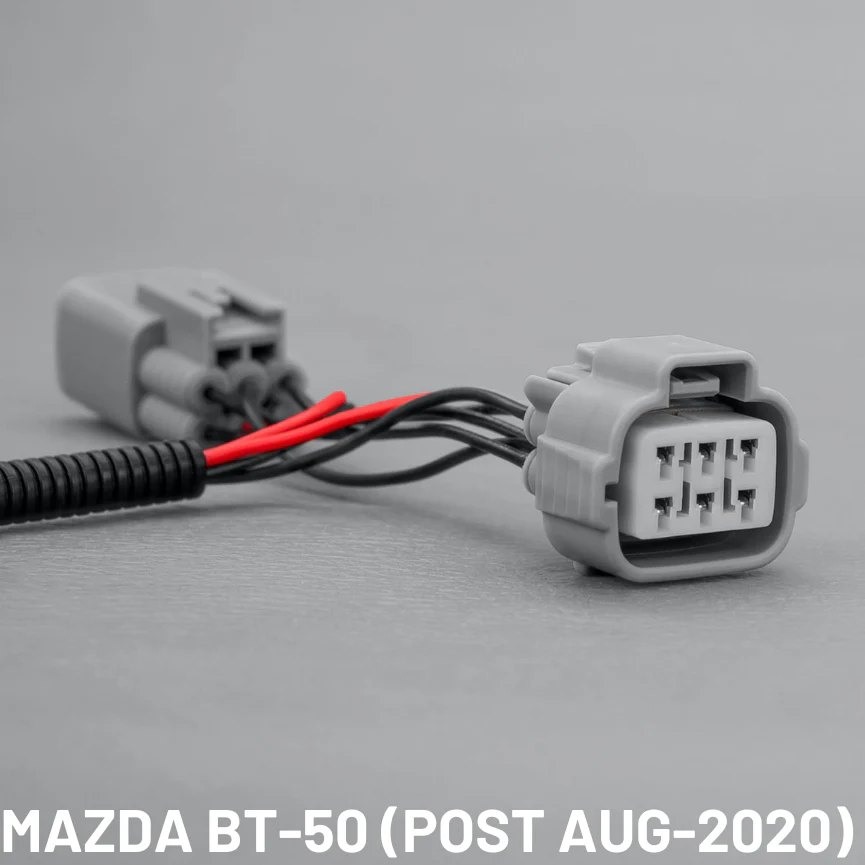

STEDI Mazda BT-50 (Post AUG-2020) Piggy Back Adapter

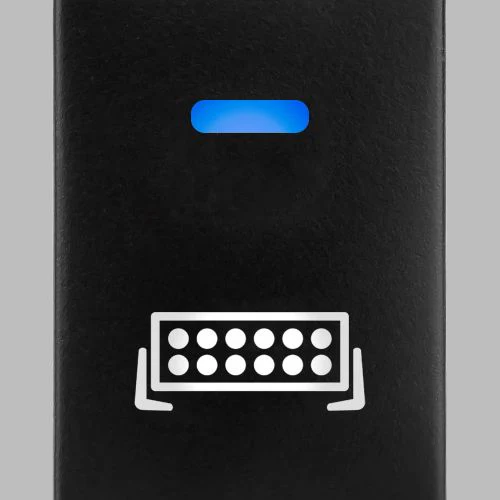

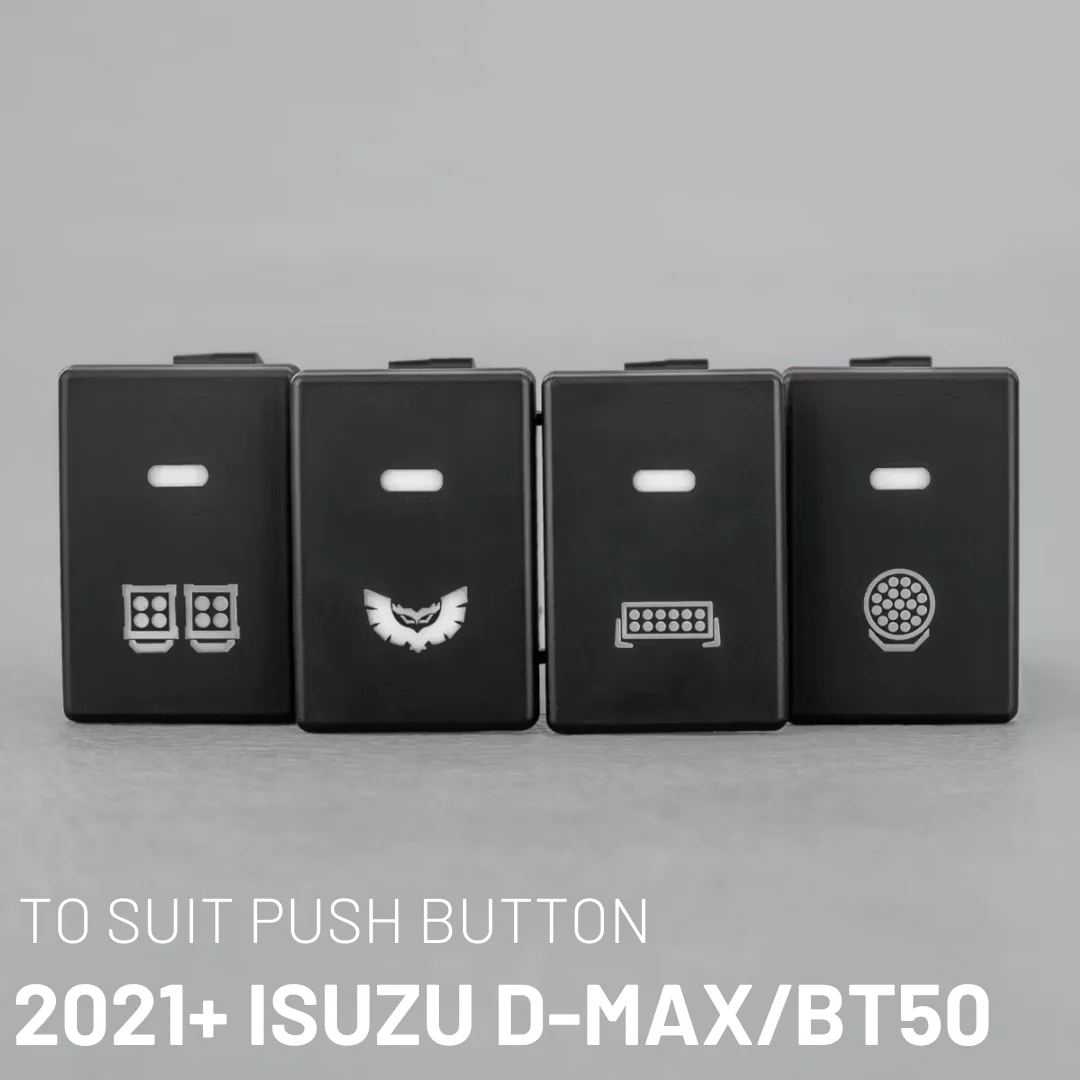

STEDI D-MAX/BT-50 (2020+), MU-X (2021+) Push Button Switches

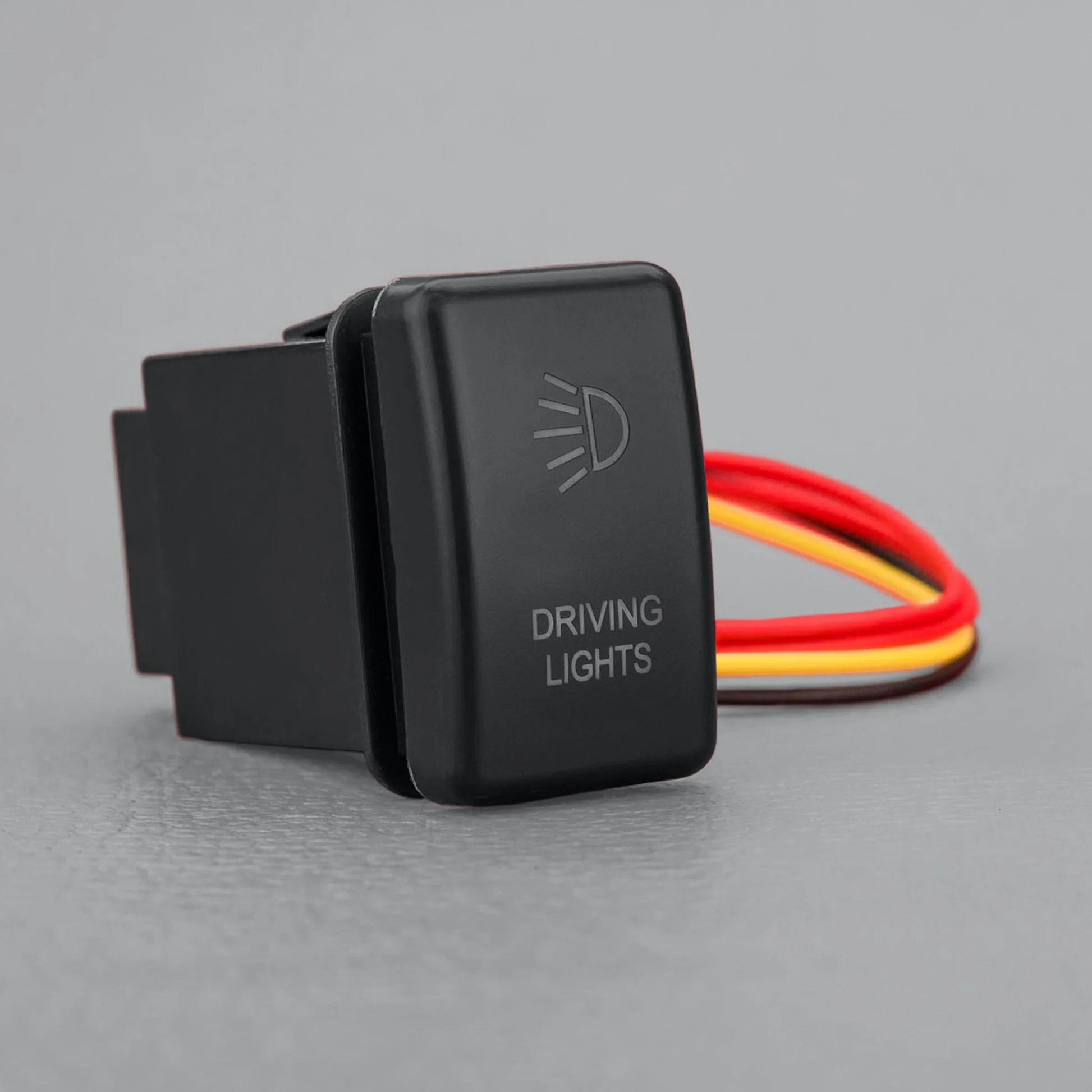

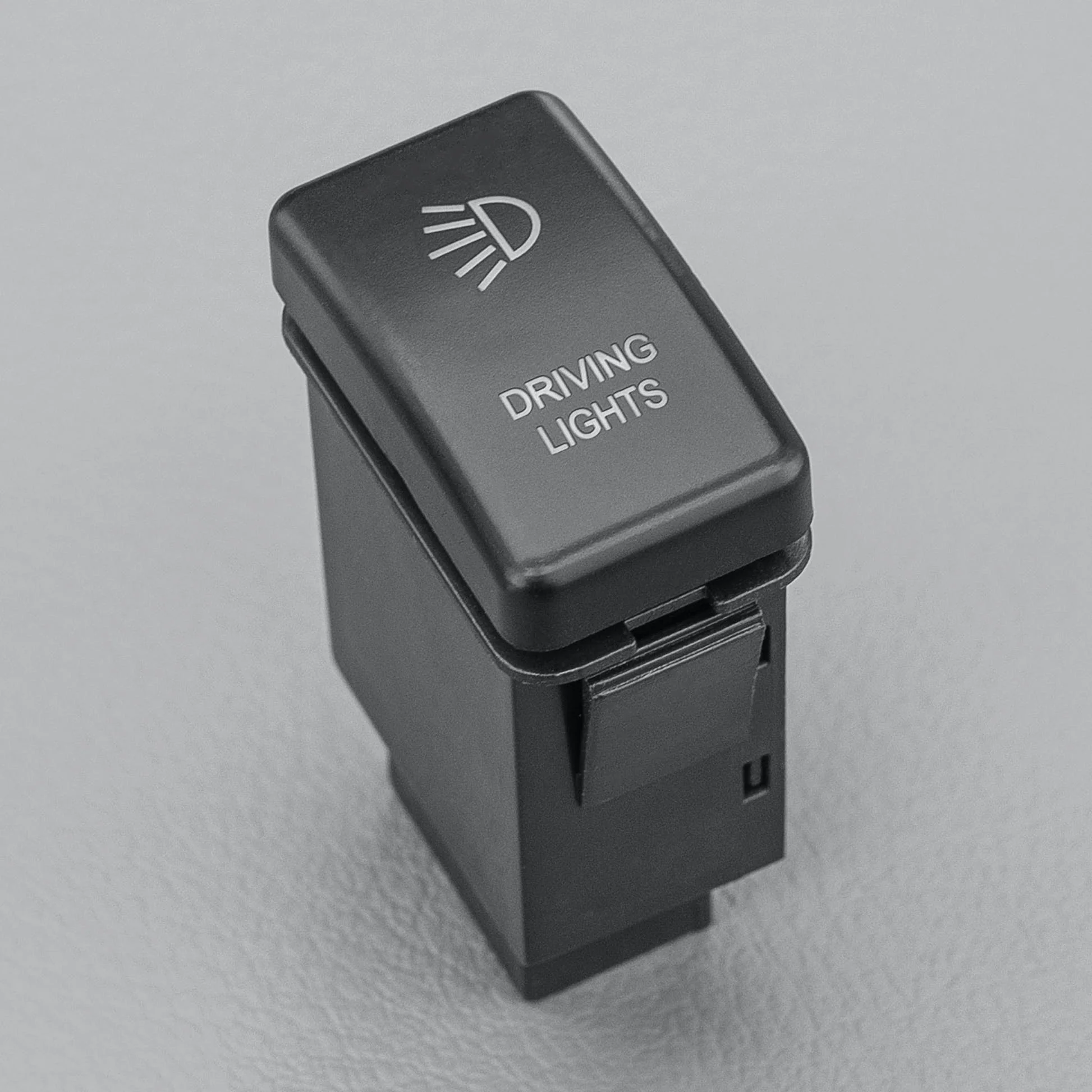

STEDI Ford Ranger PX-1 and Mazda BT50 OEM Push Button Switch
