OVERVIEW
Suited to fit Ford Ranger PX-I & Mazda BT-50 models. Available in a single variant print to replace blank switches located to the right of the steering wheel in the cabin. Driving Lights print available.
OPERATION
Simple On/Off function with dash & power illumination, text lighting up whilst the vehicle's dash lights are active and icon when the chosen device is currently active. Blue backlit illumination.
OEM FITMENT
Complete OEM fitment with a clean finish to maintain the factory look to the inside of the cabin. Included are wire tails and a diagram for quick & easy installation.
VIDEO

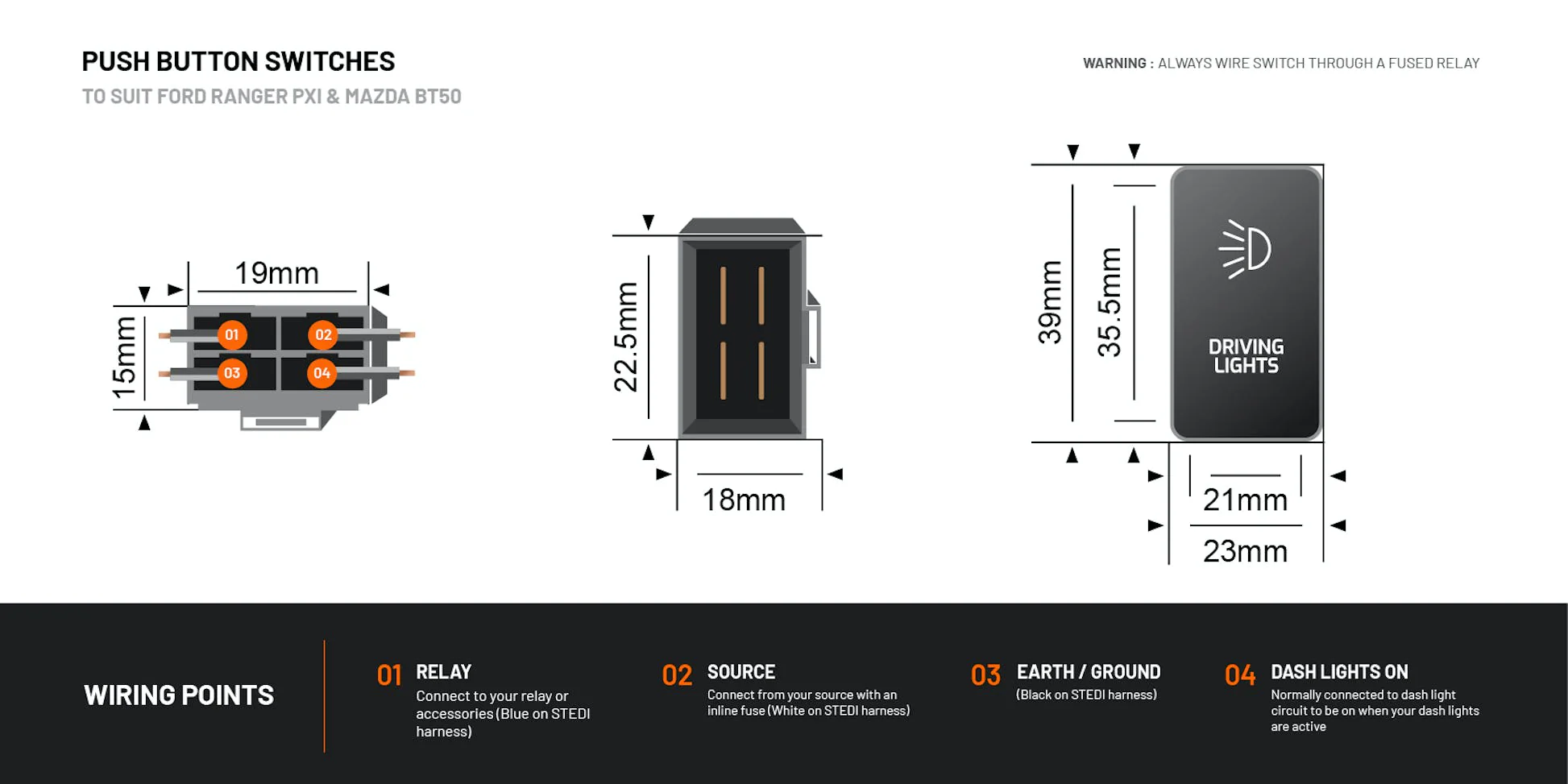

WIRING DIAGRAM
THE NERDY TECH STUFF
DETAILS
OEM Finish Push Button Switch designed specifically for the Ford Ranger PX (2011-2015) & Mazda BT50 (2011 to current including 2019 model). Also fits PK Ranger 2007 to 2012Ā
KEY FEATURES
- Blue LED Back LightingĀ
- Upper Light is illuminated when Driving Lights are ON (High Beam Selected)Ā
- Lower Light is illuminated when Dash Lights are ONĀ
- Laser Etched print ensure our print will never rub off with use
- Rated at 3A on 12v Ā (Must be wired through a fused relay at all time)Ā
- Excellent OEM matching design which replaces the factory business card holder
Ā Please note this switch will not fit the PX2 Ford Ranger.Ā
TECH SPECS
| BACK LIGHT COLOUR | Blue |
| SURFACE SIZE DIMENSIONS | 39mm x 23mm |
| RATED | 3A @ 12v |
| COMPATIBLE WITH | Ford Ranger PX (2011-2015) |
| Mazda BT50 (2011 - current, including 2019 model) | |
| PK Ranger (2007-2012) | |
| Not compatible with PX2 Ford Ranger. |
WHAT'S IN THE BOX

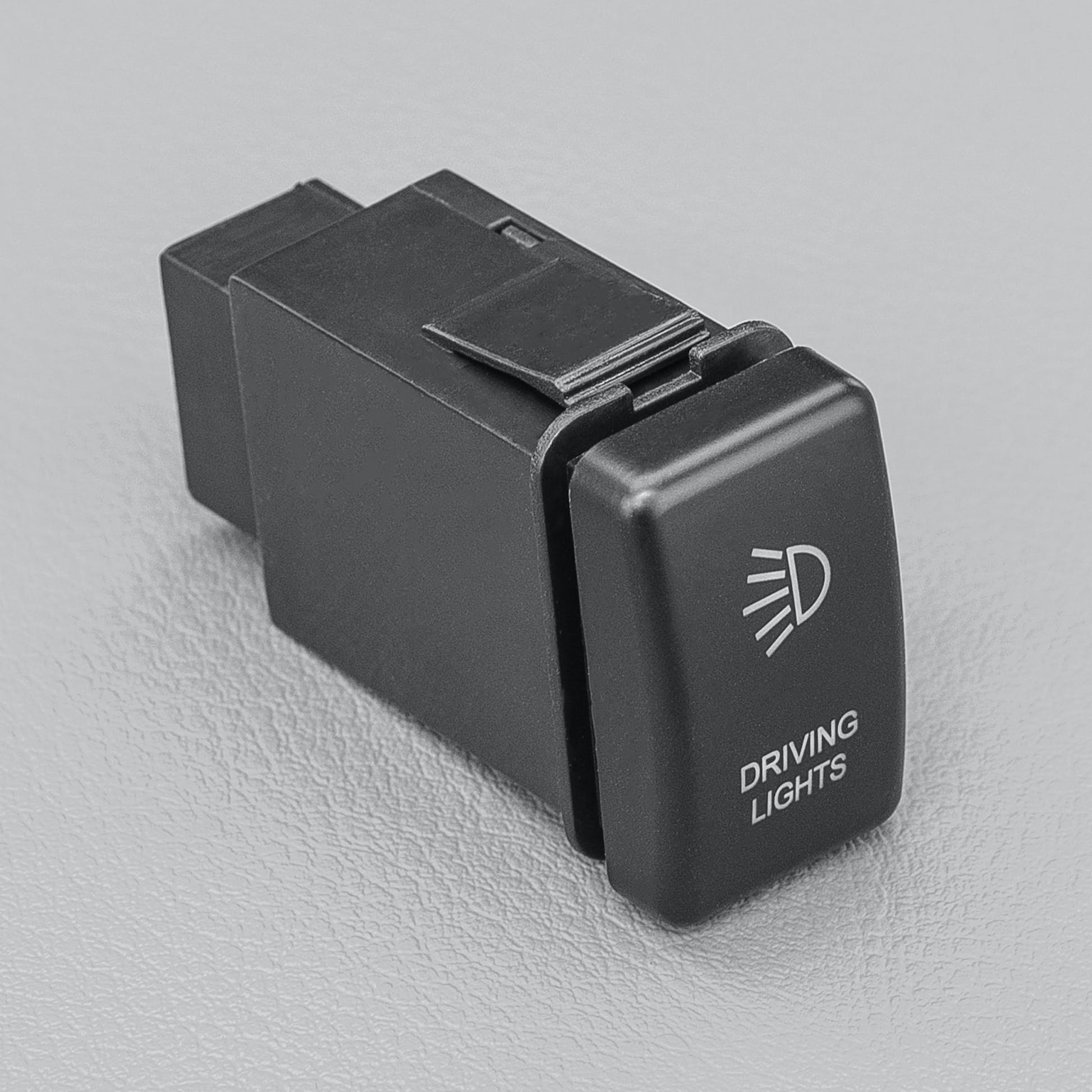

- Ranger/BT-50 Type Push Button Switch | Driving Lights

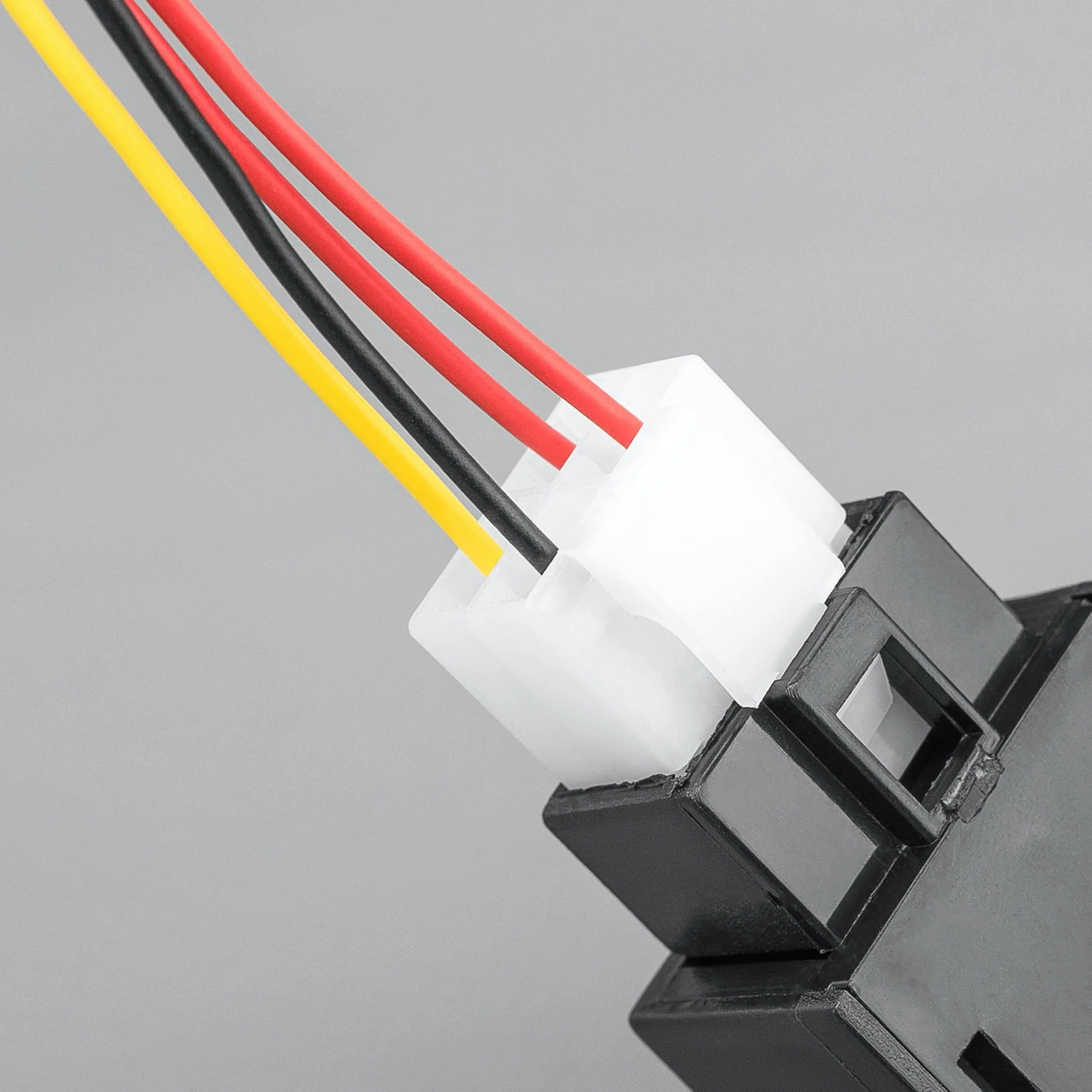

- Connector with Wire Tails
- Wiring Diagram
